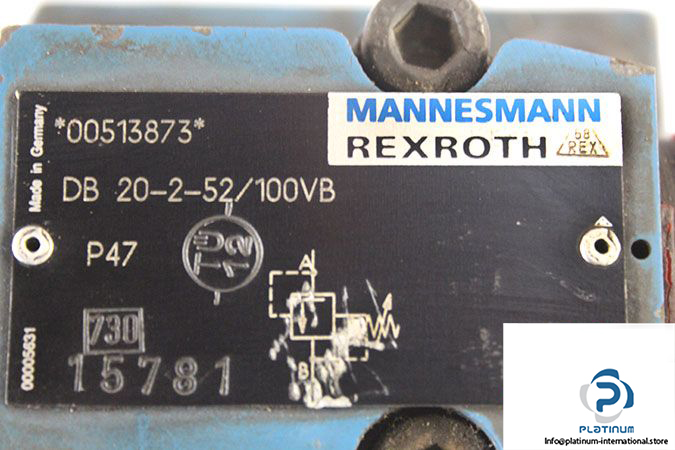

Rexroth R900513873 Pressure Relief Valve Pilot Operated
Manufacturer: MANNESMANN REXROTH
Type: Pressure Relief Valve Pilot Operated
Model: DB 20-2-52/100VB
MNR: R900513873
Size: 20
Adjustment element for pressure adjustment: Sleeve with hexagon and protective cap
Pressure Setting: 100 bar
Ambient Temperature Range: –15 …. +80 oC
Maximum operating pressure at Ports P,X :350 bar
Maximum operating pressure at Port T :315 bar
Maximum backpressure at Port Y :315 bar
Maximum Flow Rate: 500 l/min
Hydraulic Fluid Temperature Range: –15 …. +80 oC
Viscosity Range: 10 … 800 mm2/s
Connection: Sup-plate
Weight: 3.76 kg
