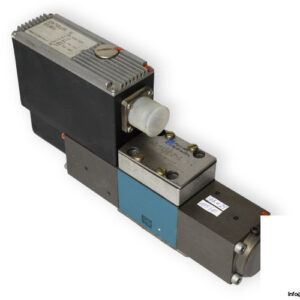

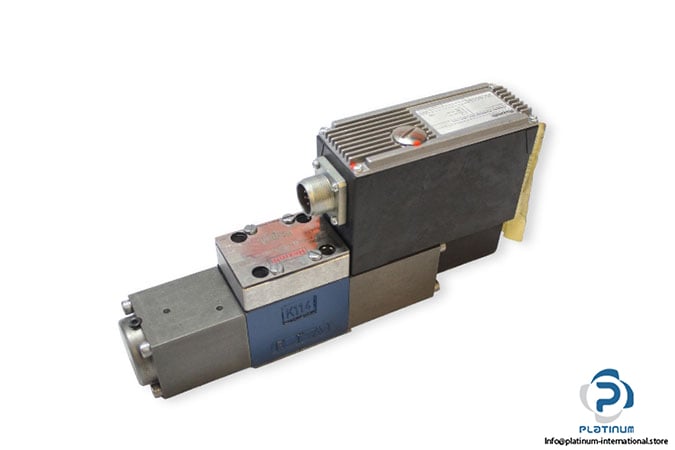

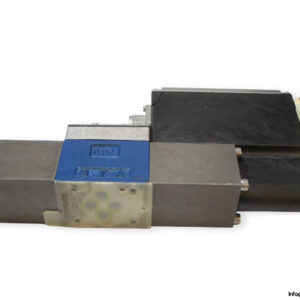

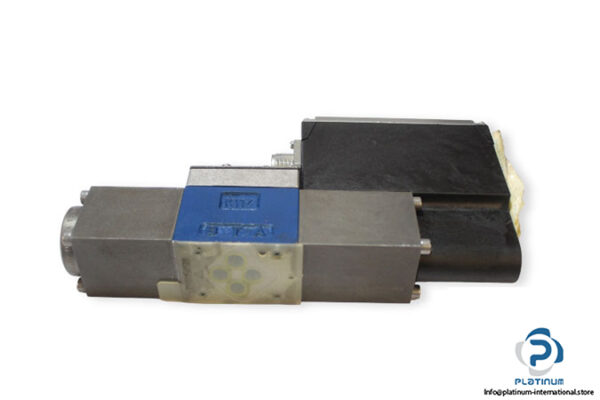

Rexroth R900558830 Directional High Response Control Valve
1 333,33$
Directional High Response Control Valve
The Rexroth 4WRSE 6 V10-31/G24K0/A1V is an electrically actuated high-response control valve with a size 6, 315 bar max pressure, and 10 l/min flow rate. It features a sub-plate connection and includes the Rexroth R900031883 Dual Counter Balance Valve.Rexroth 4WRSE 6 V10-31/G24K0/A1V High Response Control Valve
The Rexroth 4WRSE 6 V10-31/G24K0/A1V is a high-performance directional high-response control valve designed for precise hydraulic control applications. Featuring electrical actuation, a sub-plate connection, and a maximum pressure rating of 315 bar, this valve ensures optimal control and efficiency in demanding industrial settings.
Manufacturer: Rexroth
Type: Directional High Response Control Valve

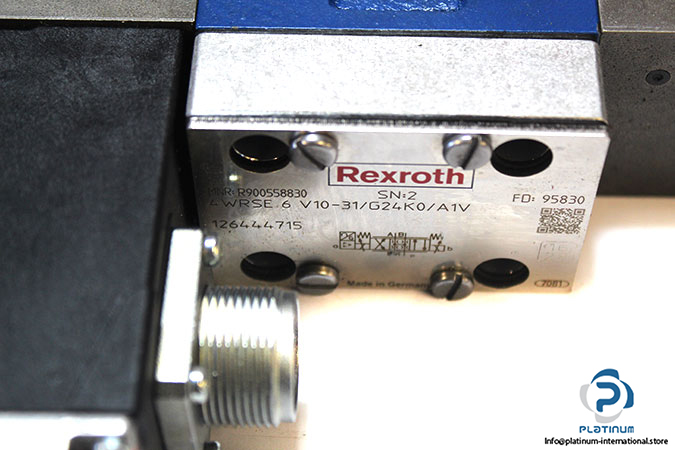

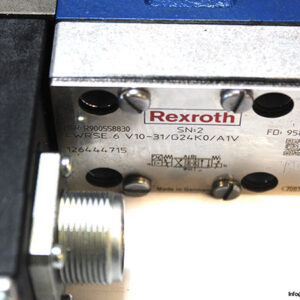

Model: 4WRSE 6 V10-31/G24K0/A1V
MNR: R900558830
Technical Information
Designed for high-precision hydraulic systems, the Rexroth 4WRSE 6 V10-31/G24K0/A1V control valve, combined with the Rexroth R900031883 Dual Counter Balance Valve, delivers exceptional reliability, pressure stability, and precise control in industrial applications.
| Size | 6 |
| Actuation | Electrical |
| Max. Pressure | 315 bar |
| Nominal Flow Rate @ 10 bar Pressure Differential | 10 l/min |
| Connection | Sub-plate |
| Viscosity Range | 20 to 380 mm²/s |
| Fluid Temperature Range | -20 to 80°C |
| Supply Voltage per Coil | 24 V DC |
| Attached Component | Rexroth R900031883 Dual Counter Balance Valve |
| MNR | R900031883 |
| Pilot Ratio | 2.9:1 |
| Standard Pressure Setting | 350 bar |
| Adjustable Pressure Range | 120 to 350 bar |
| Pressure Increase | 118 bar |
