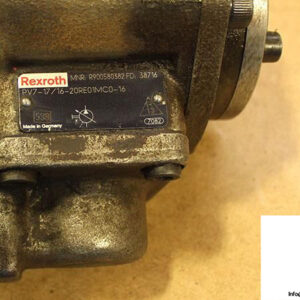

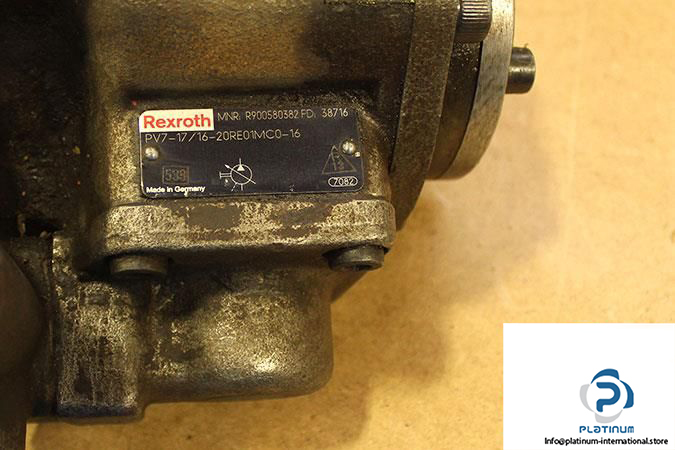

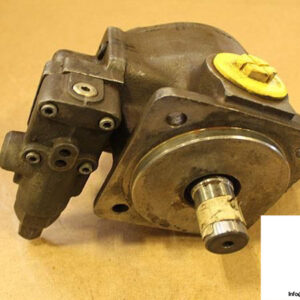

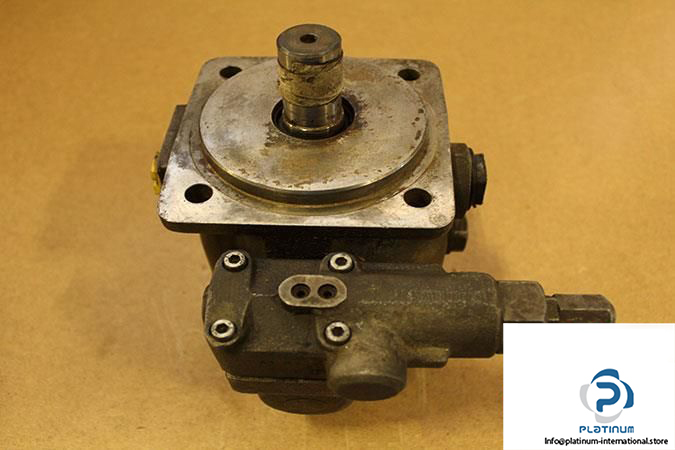

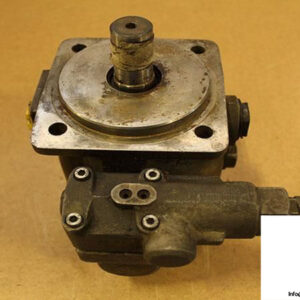

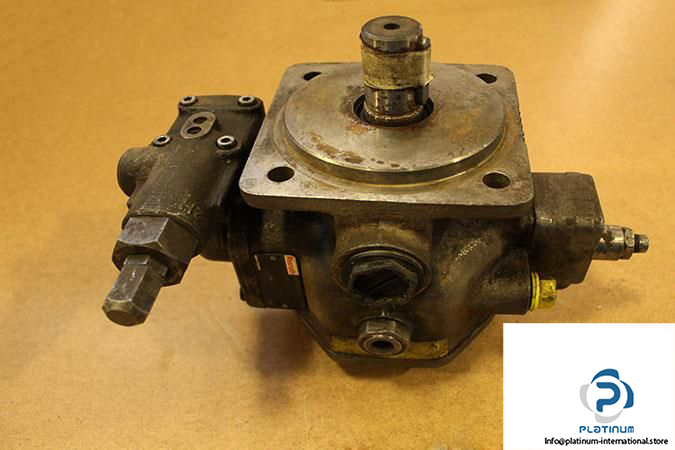

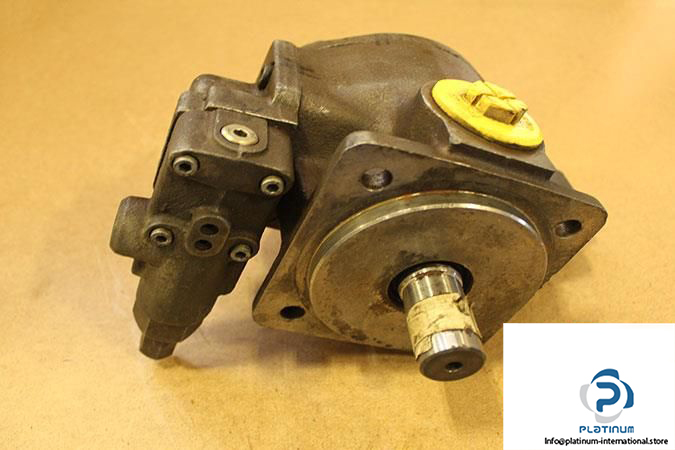

Rexroth R900580382 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

Model: PV7-17/16-20RE01MC-16

MNR: R900580382

size: 20

Displacement: 20 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 25 mm

Operating pressure: 160 bar

Drive Speed: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 29 l/m

Power at 100 bar, 1450 rpm: 8.5 KW

Torque at 100 bar: 140 N.m

Viscosity Range: 16 ….  1600 mm²/s

Weight: 17 Kg
