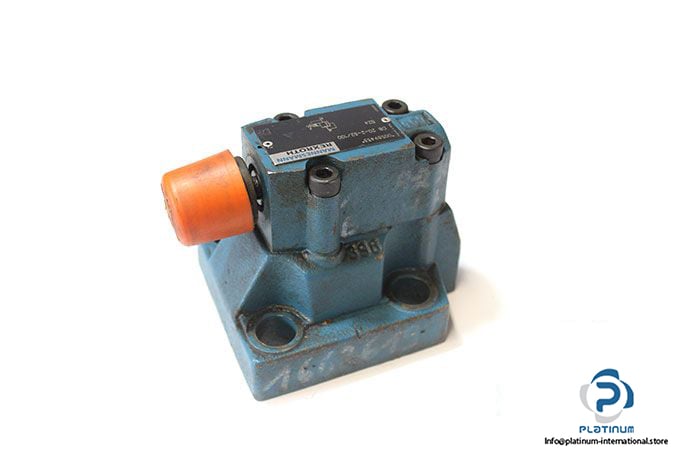

Rexroth R900589433 Pressure Relief Valve Pilot Operated

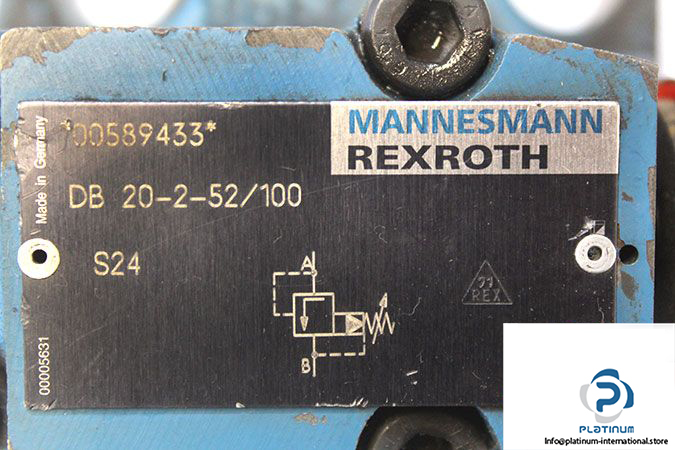

Manufacturer: MANNESMANN REXROTH

Type: Pressure Relief Valve Pilot Operated

Model: DB 20-2-52/100

MNR: R900589433

Size: 20

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Setting: 100 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P,X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure At Port Y :315 bar

Maximum Flow Rate: 500 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

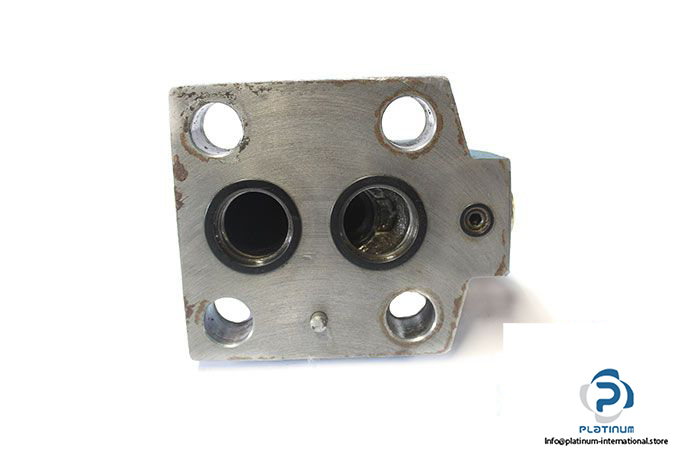

Connection: Sup-plate

Weight: 3.72 kg
