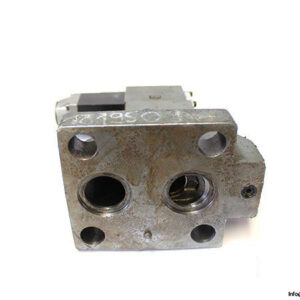

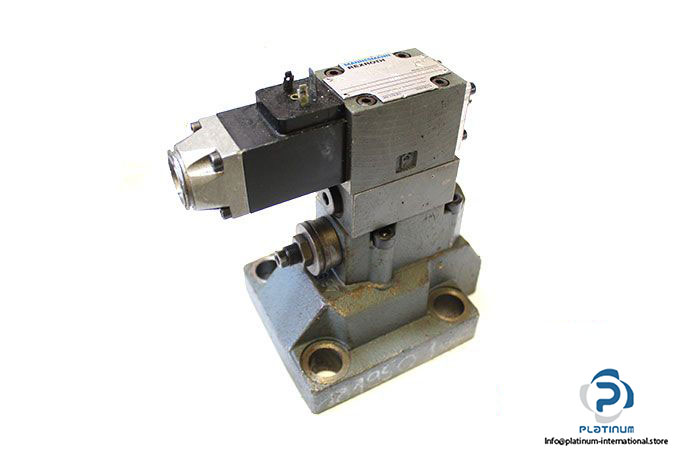

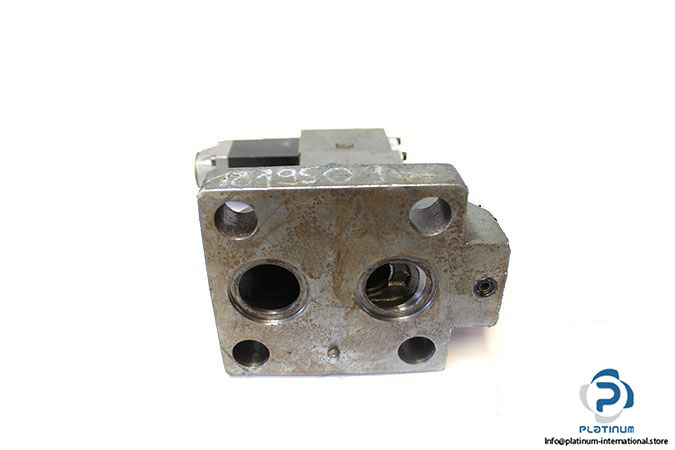

Rexroth R900594841 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH HYDRONORMA

Type: Pressure Relief Valve Pilot Operated

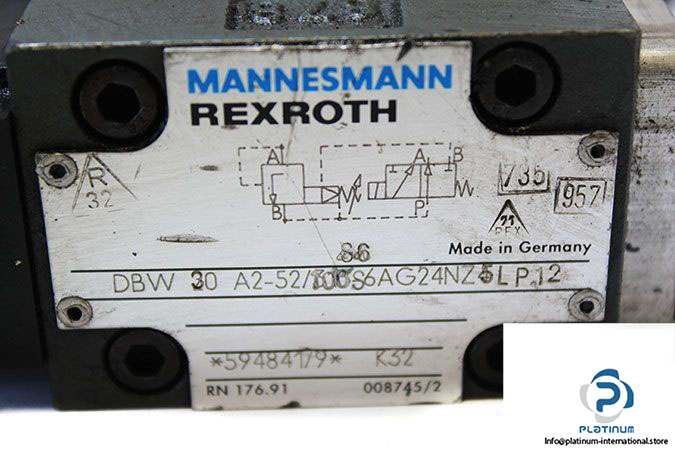

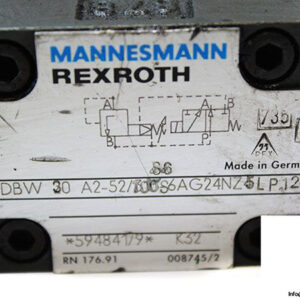

Model: DBW30A2-52/100S6AG24NZ5LP12

MNR: R900594841

Size: 30

Adjustment element for pressure adjustment: Sleeve with hexagon and protective cap

Pressure Setting: up to 100 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Ports P,X :350 bar

Maximum operating pressure at Port T :315 bar

Maximum backpressure at Ports Y,T : 210 with DC solenoid ,160 with AC solenoid

Maximum Flow Rate: 650 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

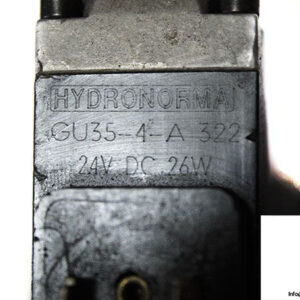

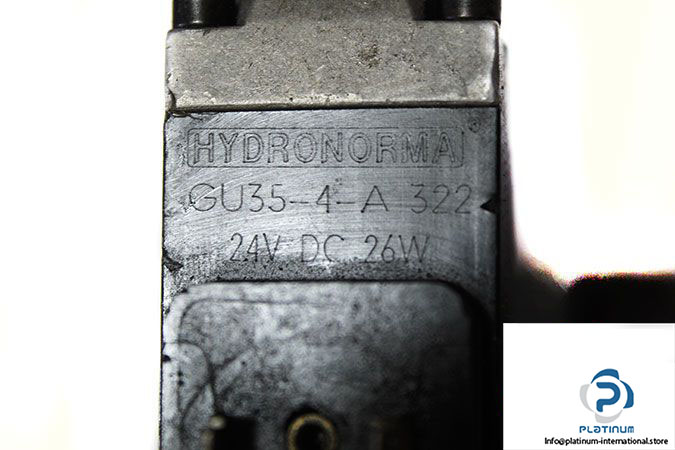

Attachment:  HYDRONORMA GU35-4-A 322 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

MNR: GU35-4-A 322

Power:26 W

Voltage: 24 VDC

Weight: 6.74 kg
