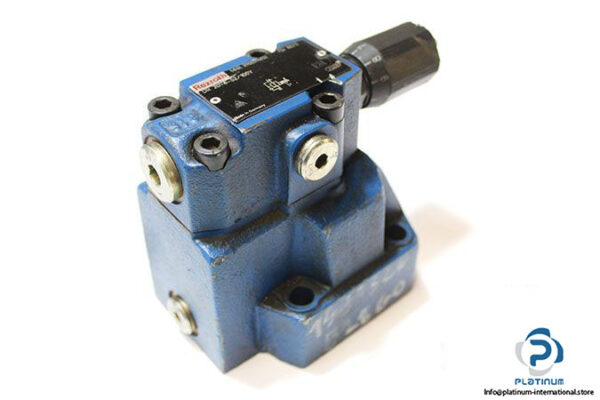

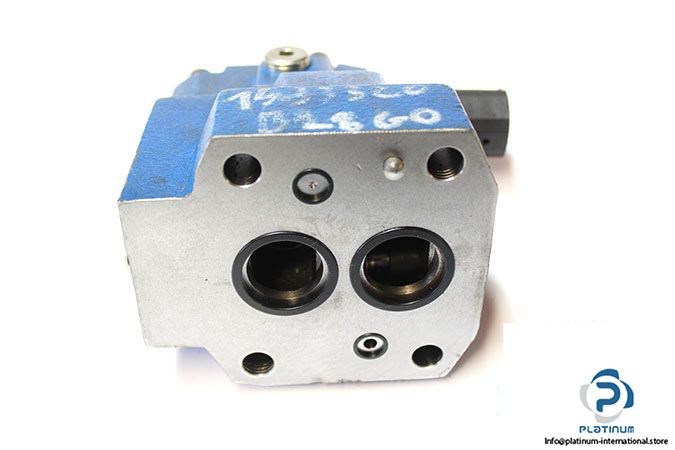

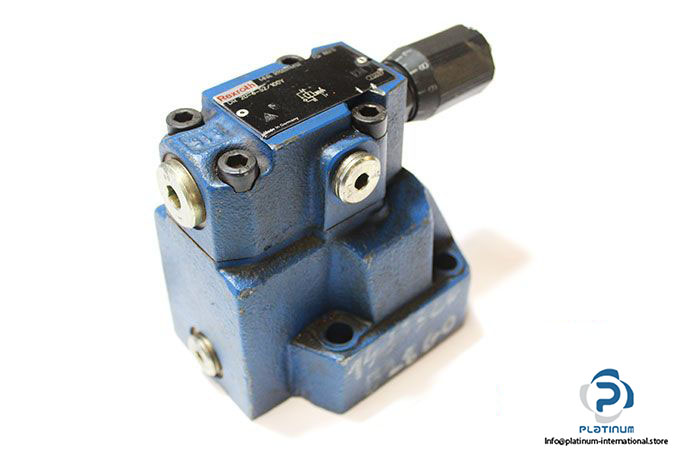

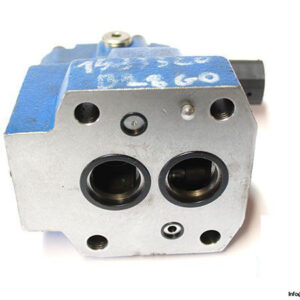

Rexroth R900596832 Pressure Reducing Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Reducing Valve Pilot Operated

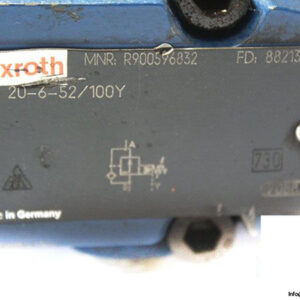

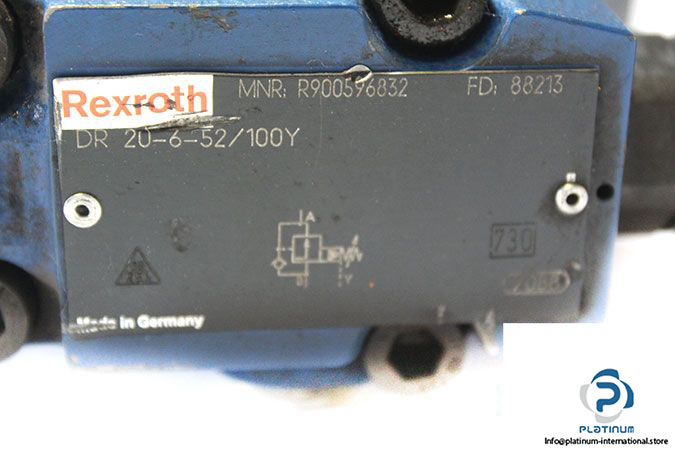

Model: DR 20-6-52/100Y

MNR: R900596832

Size: 20

Adjustment Type: Sleeve with Hexagon and Protective Cap

Pressure Setting: 100 bar

Ambient Temperature Range: –30 …. +50 ^oC

Nominal Pressure: 350 bar

Maximum Operating Pressure at port B: 350 bar

Operating Pressure Range at port A: 10 to 350 bar

Maximum Back Pressure at port Y: 350 bar

Maximum Flow Rate: 300 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 5.26kg
