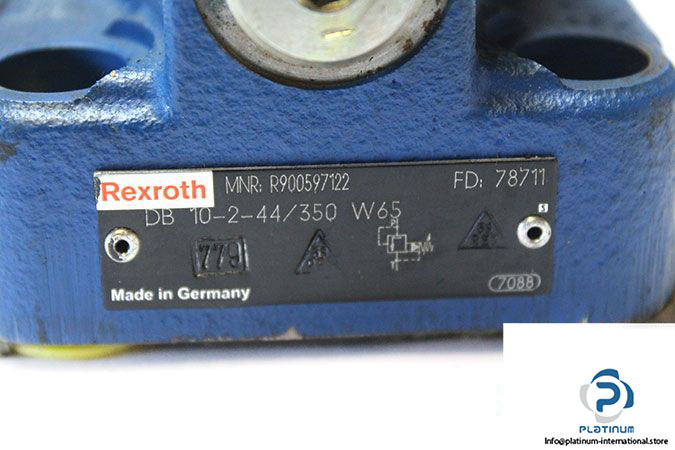

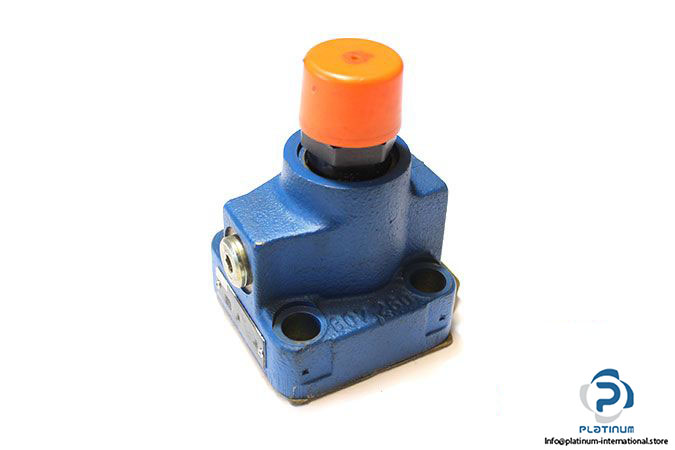

Rexroth R900597122 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

Model: DB 10-2-44/350 W65

MNR: R900597122

Size: 10

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P,X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Port Y :315 bar

Maximum Flow Rate: 250 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

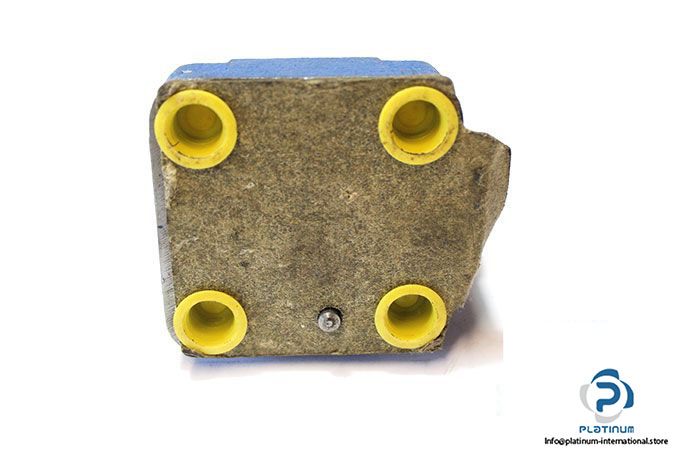

Connection: Sup-plate

Weight: 1.80 kg
