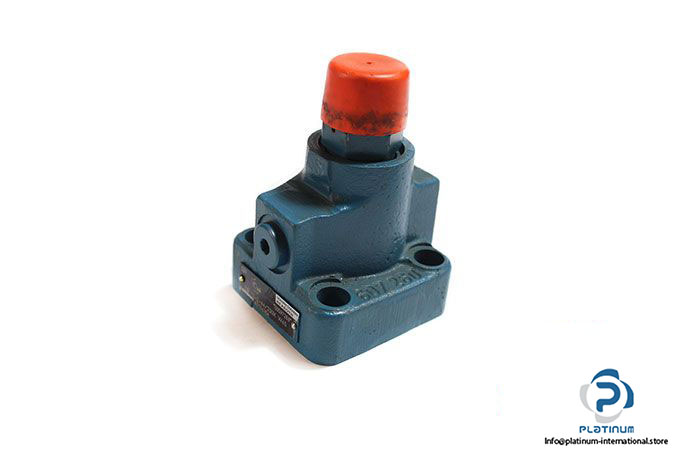

Rexroth R900597288 Pressure Relief Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

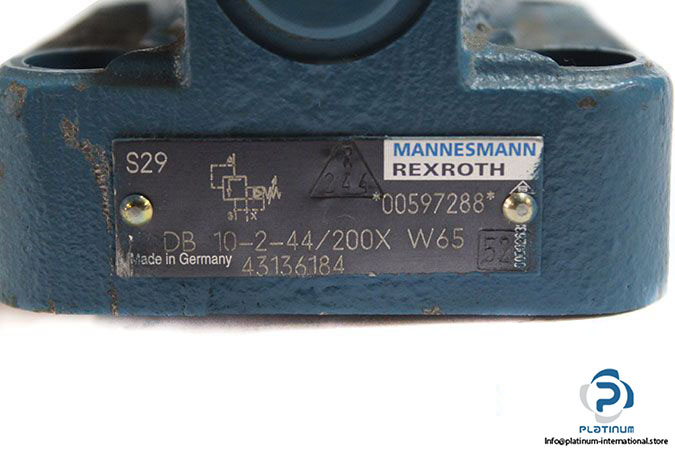

Model: DB 10-2-44/200X W65

MNR: R900597288

Size: 10

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Setting: up to 200 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P, X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Port Y :315 bar

Maximum Flow Rate: 250 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

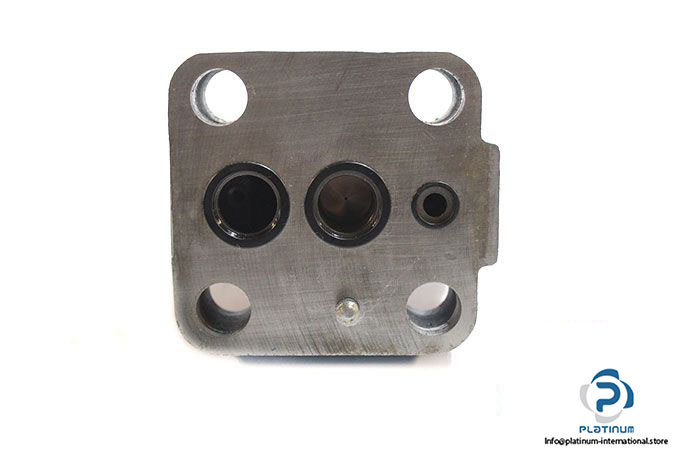

Connection: Sup-plate

Weight: 1.77 kg
