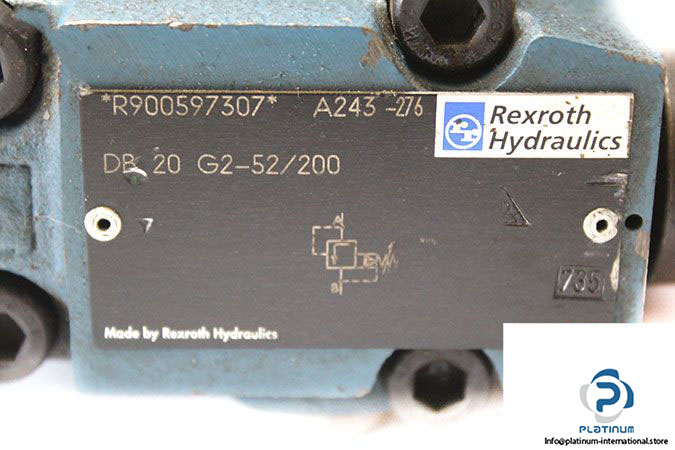

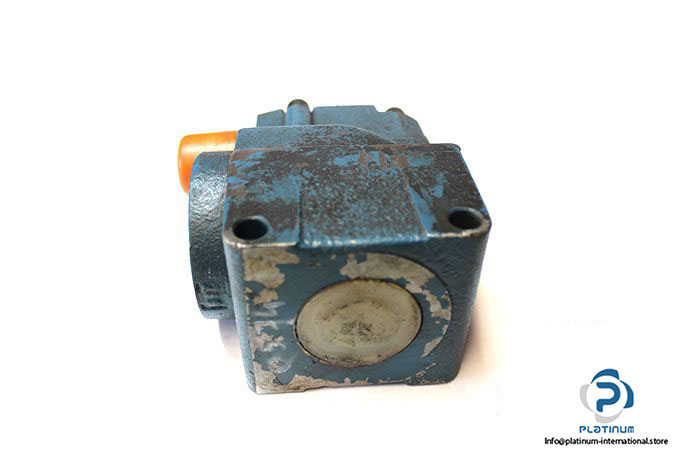

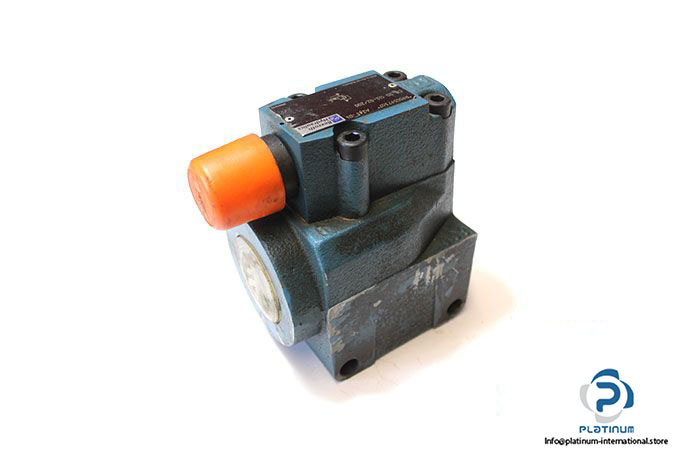

Rexroth R900597307 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

Model: DB20G2-52/200

MNR: R900597307

Size: 20

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Setting: 200 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P,X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Port Y :315 bar

Maximum Flow Rate: 500 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Threaded

Weight: 5.30 kg
