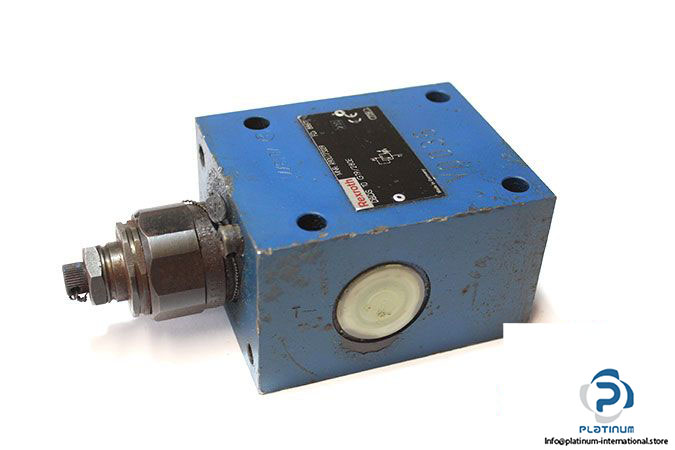

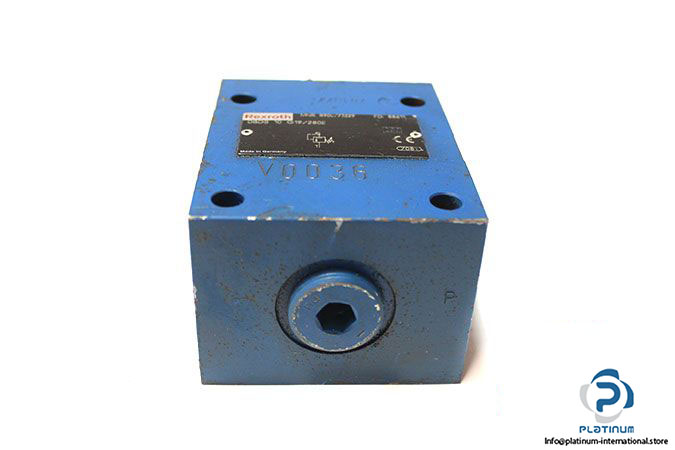

Rexroth R900773229 Pressure Relief Valve Direct Operated

Manufacturer: REXROTH

Type: Pressure Relief Valve Direct Operated

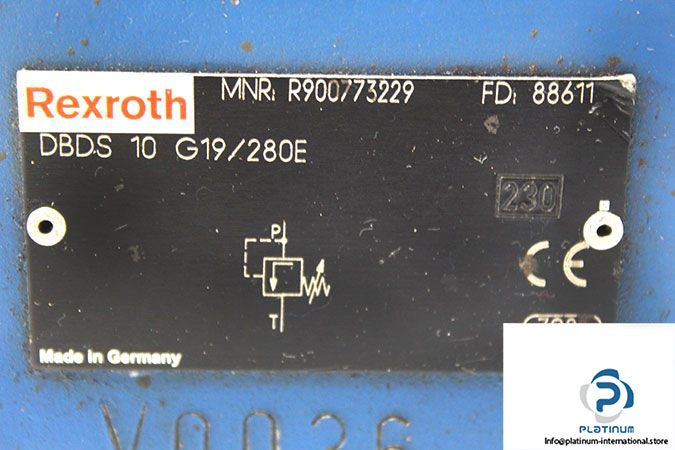

Model: DBDS 10 G19/280E

MNR: R900773229

Size: 10

Adjustment Type For Pressure Adjustment: Bushing with Hexagon and Protective Cap

Pressure Setting: 210 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Input– Standard: 400 bar

Maximum Operating Pressure at Output: 315 bar

Maximum Flow Rate: 120 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: G1/2

Weight: 3.54kg
