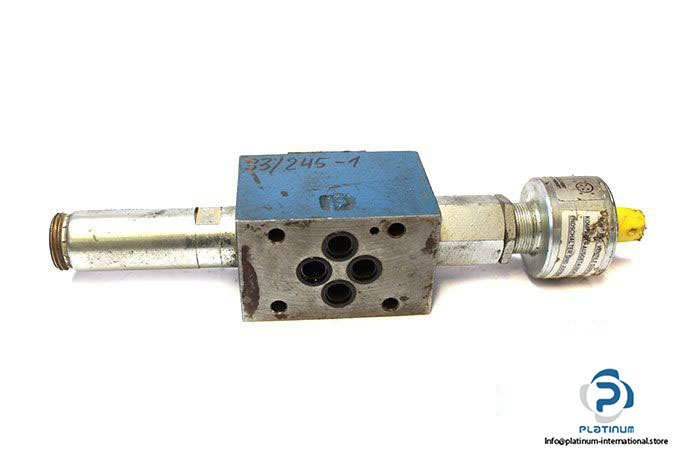

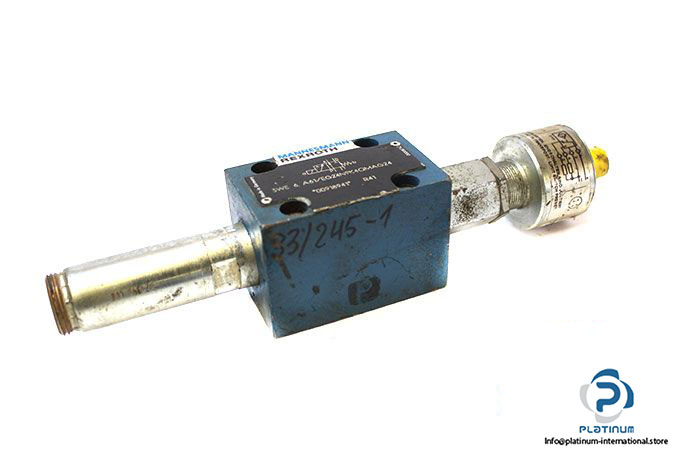

Rexroth R900918941 Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

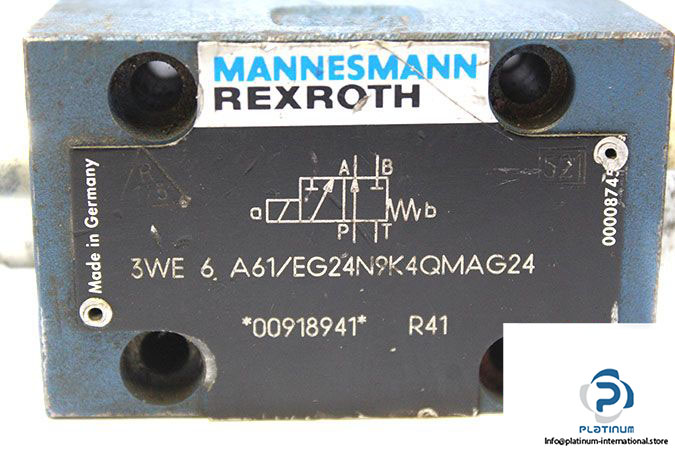

Model: 3WE 6 A61/EG24N9K4QMAG24

MNR: R900918941

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :350 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 80 l/min (DC) , 60 l/min (AC)

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

Weight: 1.30 kg
