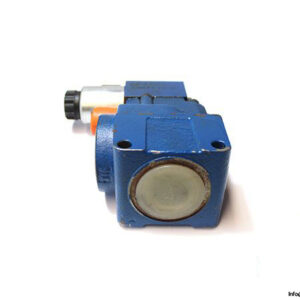

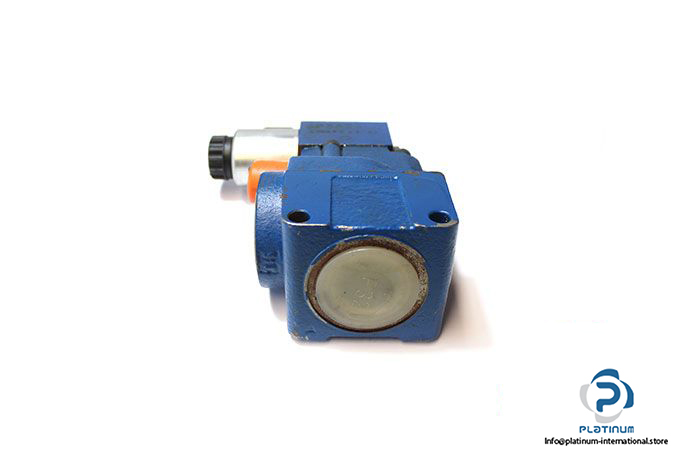

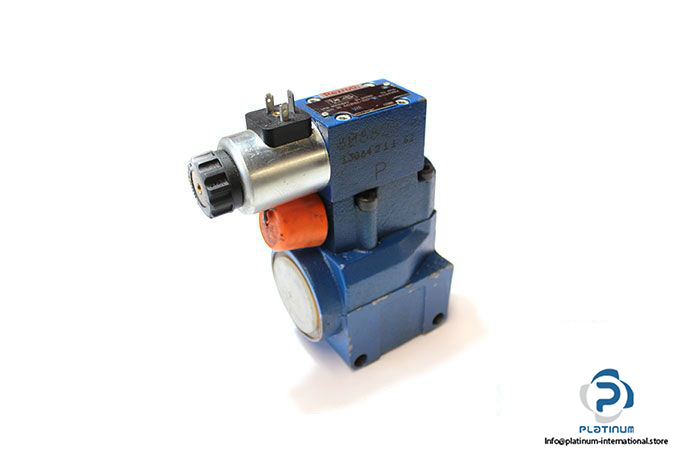

Rexroth R901010417 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

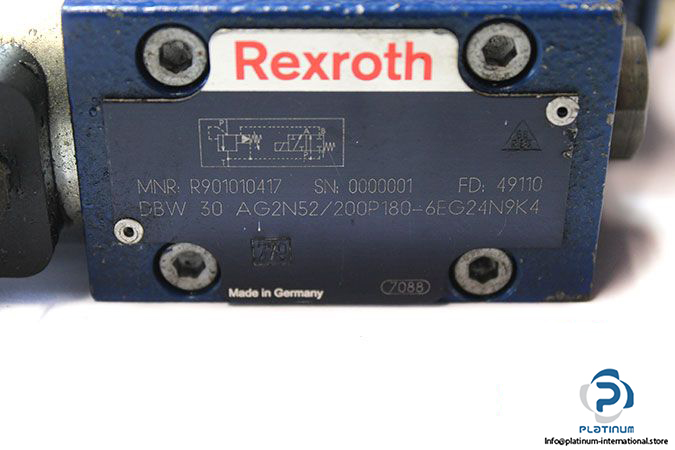

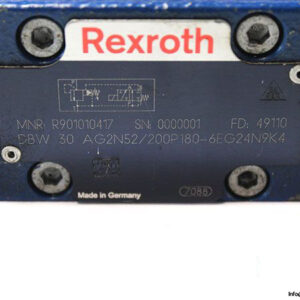

Model: DBW 30 AG2N52/200P180-6EG24N9K4

MNR: R901010417

Size: 30

Adjustment element for pressure adjustment: Sleeve with hexagon and protective cap

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Ports P,X :350 bar

Maximum operating pressure at Port T :315 bar

Maximum backpressure at Ports Y,T : 210 with DC solenoid

,160 with AC solenoid

Maximum Flow Rate: 650 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

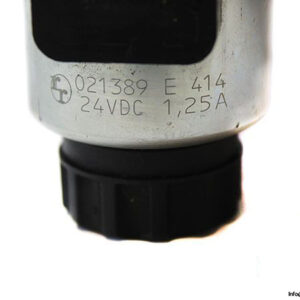

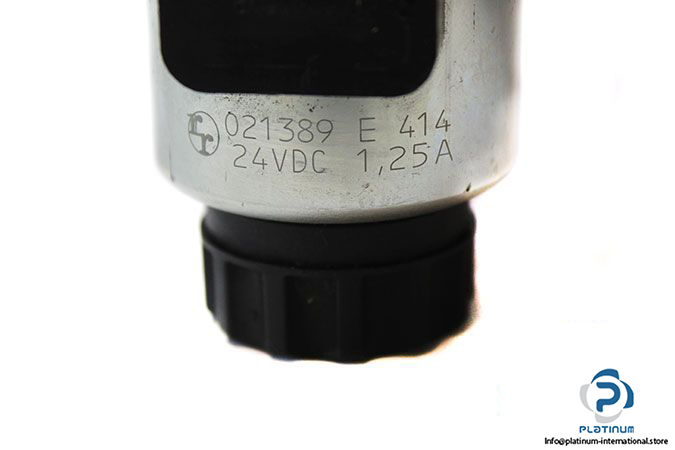

Attachment: REXROTH 021389 SOLENOID COIL

Manufacturer: Rexroth

Type: Solenoid Coil

MNR: 021389

Current: 1.25 A

Voltage: 24 VDC

Weight: 6.4 kg
