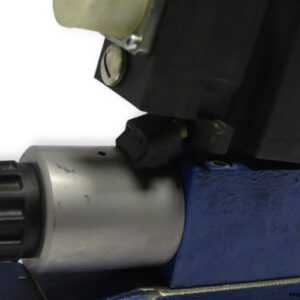

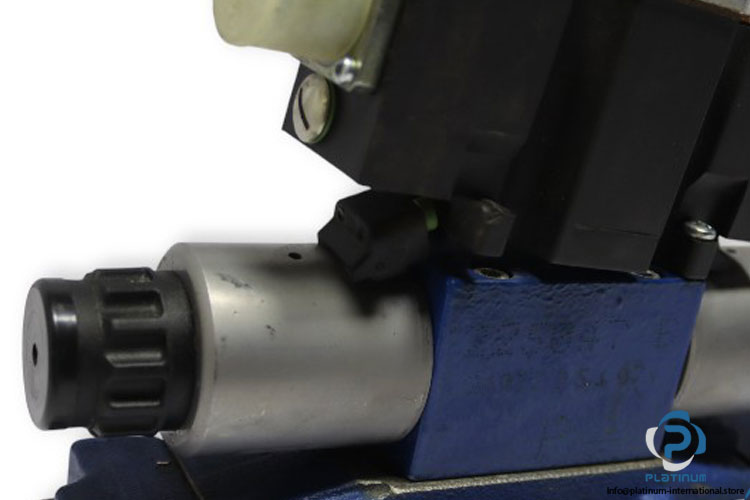

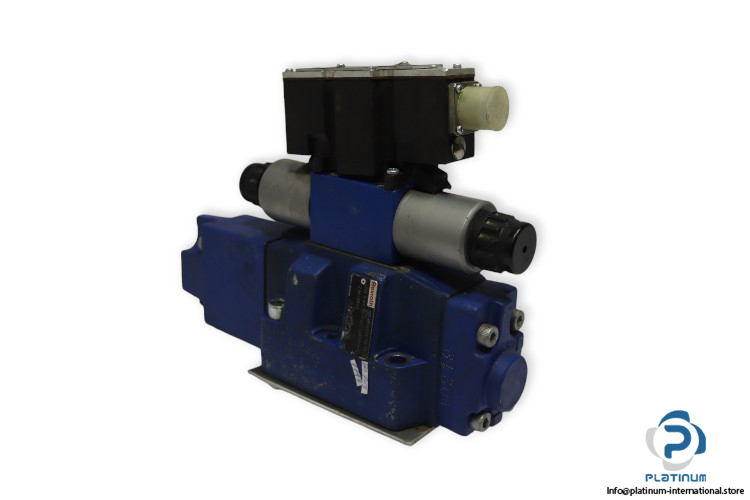

Rexroth R901026748 Proportional Directional Valve

Manufacturer: REXROTH
Type: Proportional Directional Valve

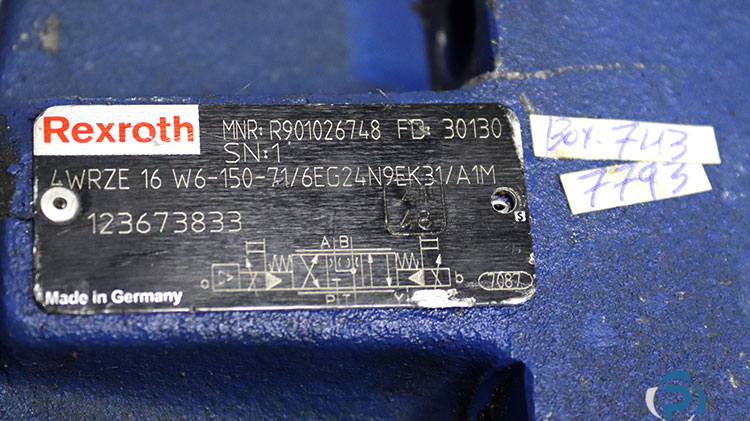

Model: 4WRZE 16 W6-150-71/6EG24N9EK31/A1M
MNR: R901026748

Nominal Size: NG 16
Type of Actuation: Electro-hydraulic
Max. Working pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 250 bar
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -20 ….. +80 °C

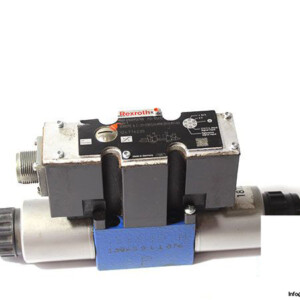

Attachment: REXROTH R900958788 PROPORTIONAL DIRECTIONAL VALVE
Manufacturer: REXROTH
Type: Proportional Directional Valve

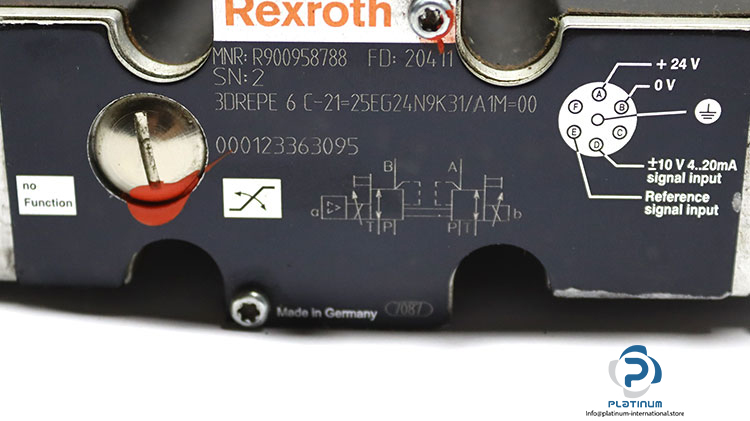

Model: 3DREPE6C-21=25EG24N9K31/A1M=00
MNR: R900958788

Size: NG 6
Actuation: Electrically
Type of Mounting: Sub plate
Voltage Supply: +24 VDC
Ambient temperature range: –20 ….  +50 °C
Operating pressure range:  Port P 30 …. 100 bar, Port T 0 … 30 bar
Maximum Flow: 15 l/m
Hydraulic fluid temperature range: –20 ….  +80 °C
Viscosity range: 20 … 380 mm²/s
Signal Output: 4 … 20 mA
Electrical Connection: plug 7 Connectors
Seal material: NBR Seals
