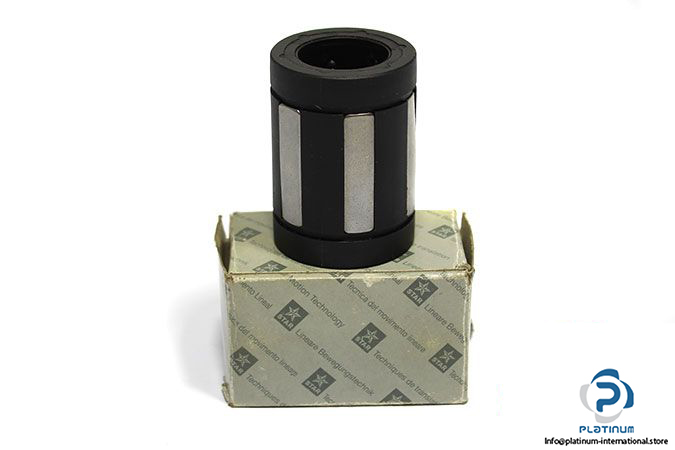

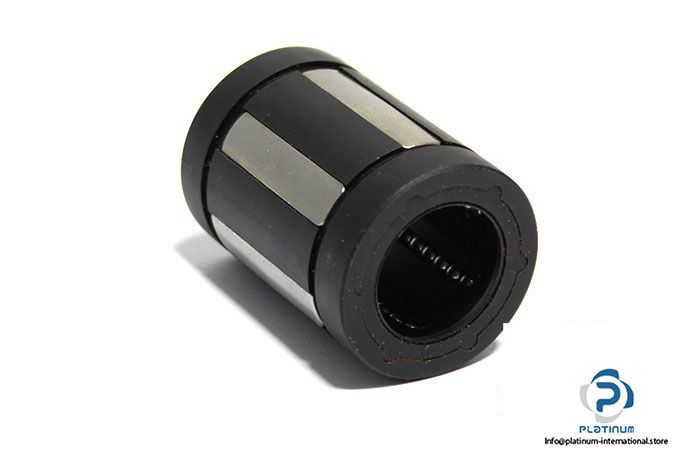

Rexroth Star 0670-220-40 Super Linear Bushing A

Manufacturer: REXROTH STAR

Type: Super Linear Bushing

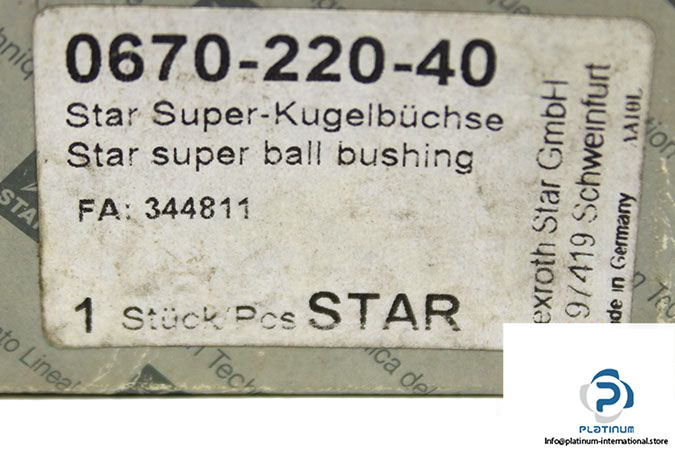

MNR: 067022040

Shaft diameter d: 20 mm

Form: Closed

Rows of Balls: 6

Friction Force F_R: 1.5 N

Breakaway Force: 3 N

Maximum Acceleration Travel a_max: 150 m/s²

Max. Permissible Speed v_max: 3 m/s

Dynamic Load Capacity C: 1860 N

Static Load Capacity C₀: 1050 N

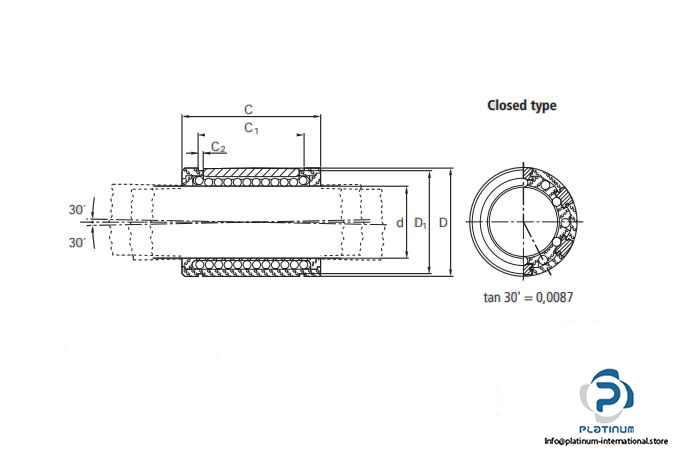

Dimensions:

D: 32 mm

C: 45 mm

Seals: With two internal seals

Operating temperature: up to 100 °C

Weight: 0.06 kg
