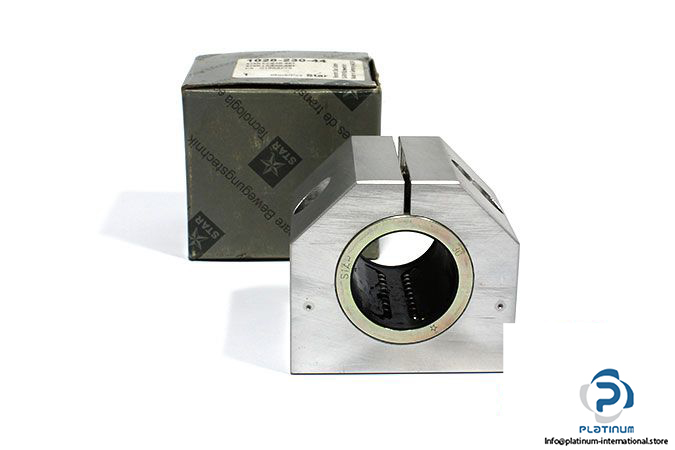

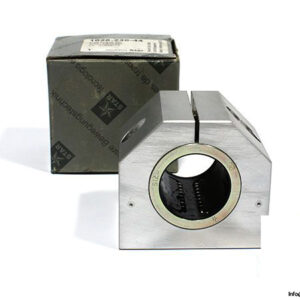

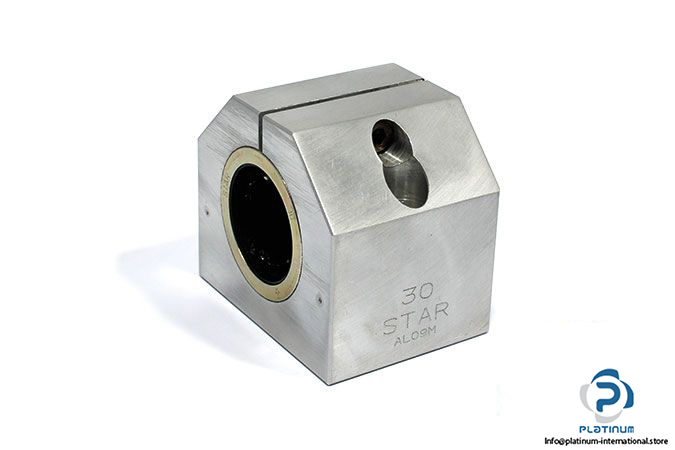

Rexroth Star 1028-230-44 Compact Linear SET

Manufacturer: REXROTH STAR

Type: Compact Linear Set

MNR: 102823044

Model: LSACE-30-DD-G

Shaft diameter d: 30 mm

Design type: Adjustable type

Housing Format: Aluminum

Dynamic Load Capacity C: 3060 N

Static Load Capacity C₀: 1880 N

Friction Force F_R: 2.5 N

Breakaway Force: 6 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 5 m/s

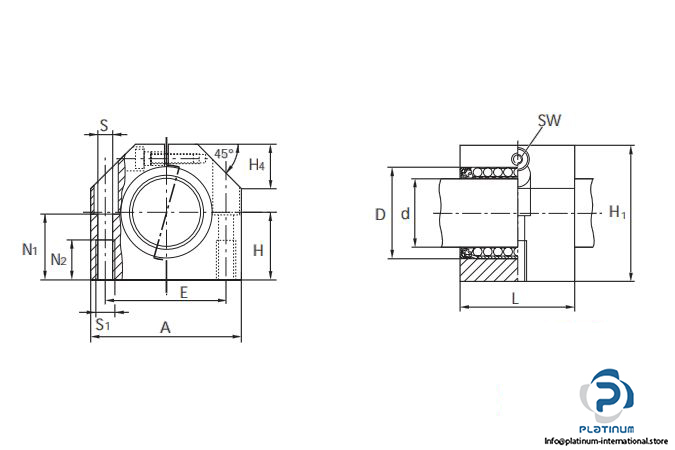

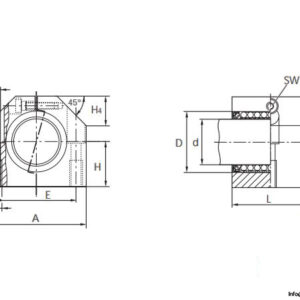

Dimensions:

A: 67 mm

L: 50 mm

H₁: 60 mm

E: 53 mm

Seals: With Two internal seals

Operating temperature: up to 80 °C

Weight: 0.4 kg
