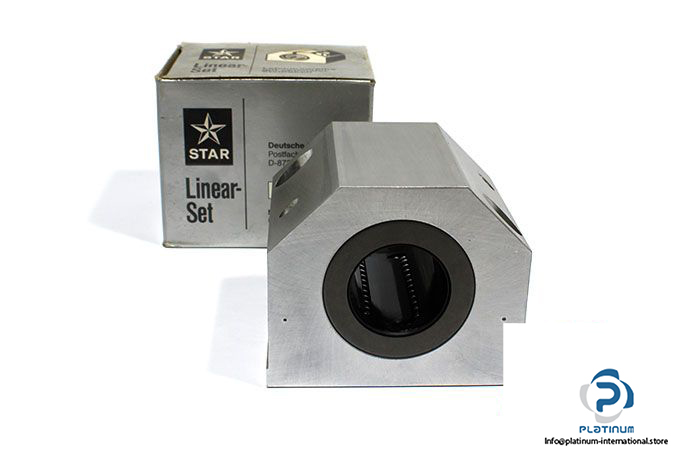

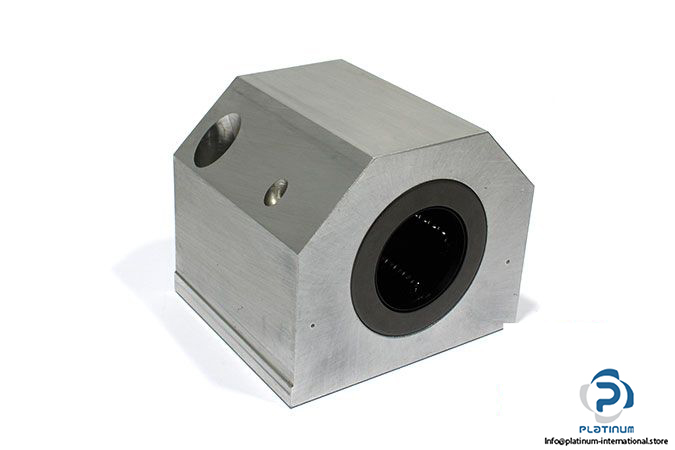

Rexroth Star 1035-640-00 Linear SET With Super Linear Bushing A

Manufacturer: REXROTH STAR

Type: Linear Sets with Super Linear Bushings A

MNR: 103564000

Replaces: 1035-640-20

Model: LSA-A-40-DD

Shaft diameter d: 40 mm

Design type: Closed type

Housing Format: Aluminum

Dynamic Load Capacity C: 7590 N

Static Load Capacity C₀: 4350 N

Friction Force F_R: 3 N

Breakaway Force: 8 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

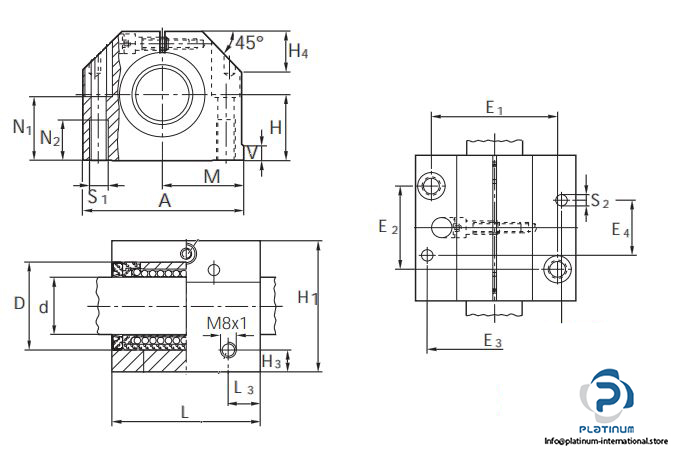

Dimensions:

A: 108 mm

L: 91 mm

H₁: 90 mm

E₁: 86 mm

E₂: 58 mm

Seals: With two seals

Operating temperature: up to 80°C

Weight: 1.8 kg
