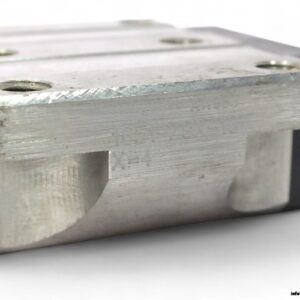

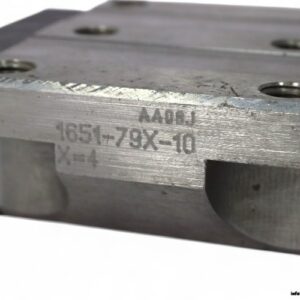

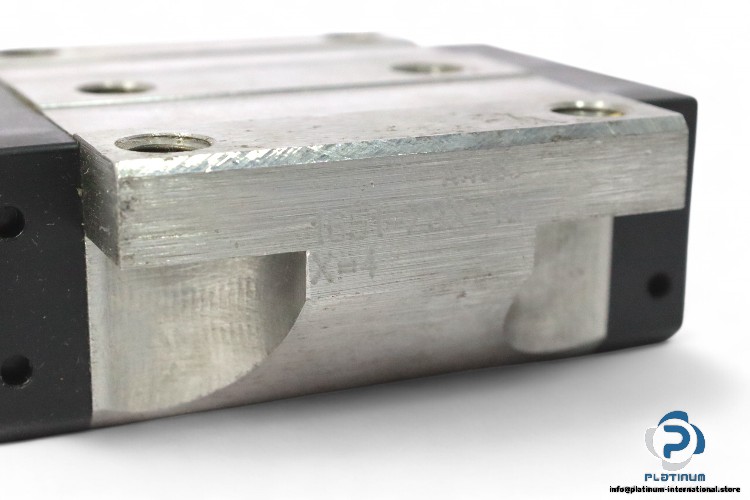

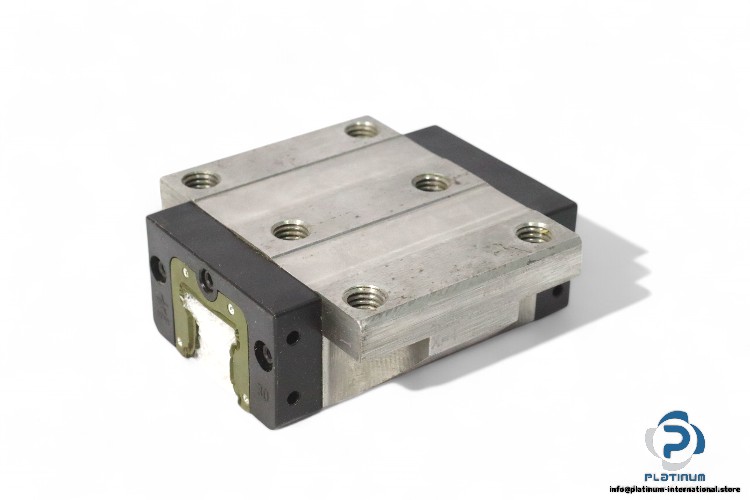

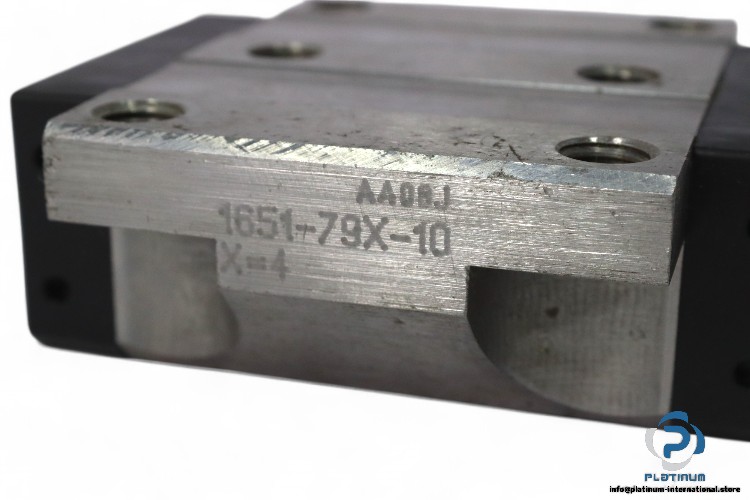

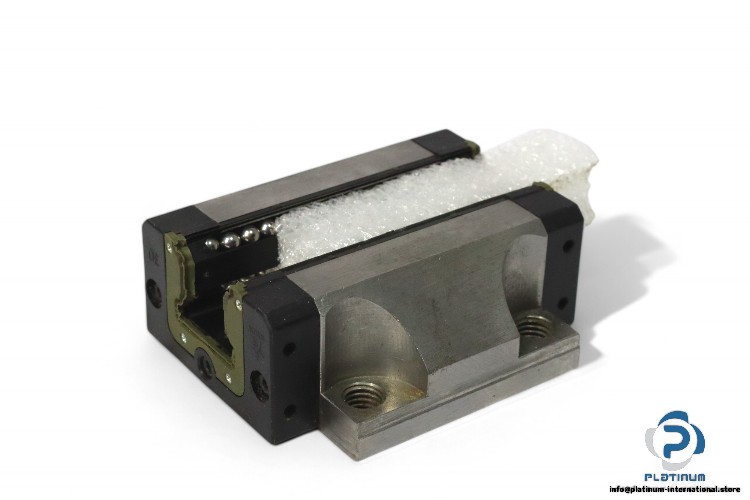

Rexroth Star 1651-794-10 Ball Runner Block

Manufacturer: Rexroth Star
Type: BALL RUNNER BLOCK
MNR: R1651-794-10

Size: 30 mm

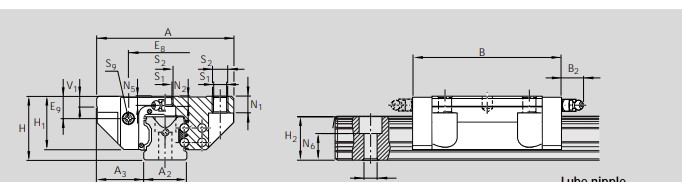

Dimensions
Width (A): 90 mm
Length (B): 94 mm
Height of system(H): 42 mm
Height of block (H₁): 35 mm
E1: 72 mm
E2: 52 mm
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 31700 N
Static load rating C0: 41300 N
Dynamic Torsional Moment Load Capacity M_t: 540 Nm
Static torsional moment load capacity Mt0: 720 Nm
Dynamic longitudinal moment load capacity ML: 290 Nm
Static longitudinal moment load capacity ML0: 380 Nm
Accuracy Class: N – normal
Preload Class: C0 – clearance
