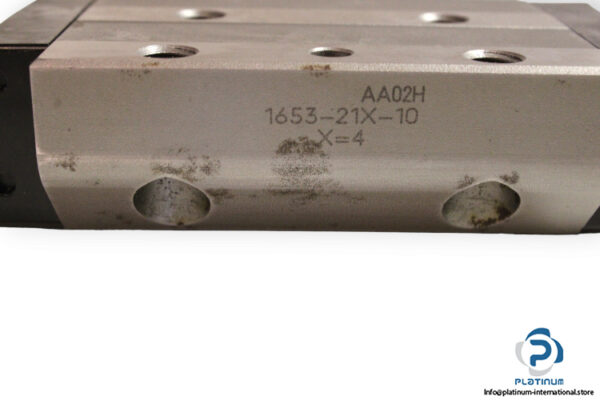

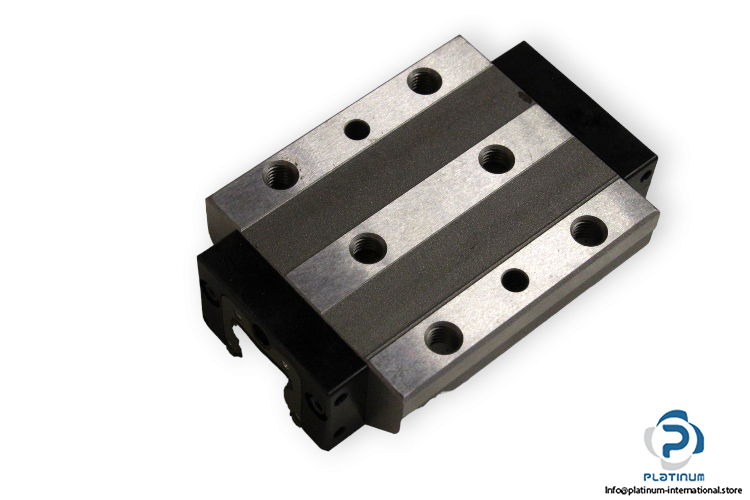

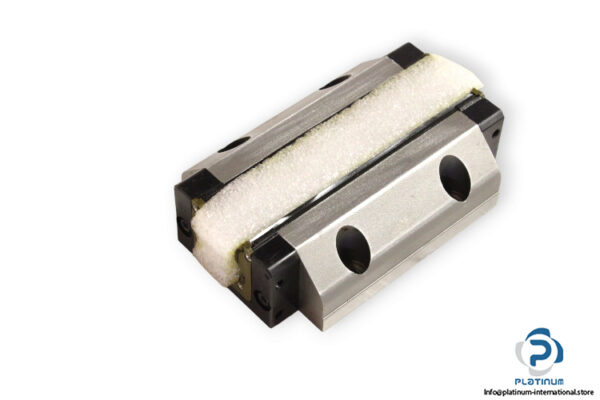

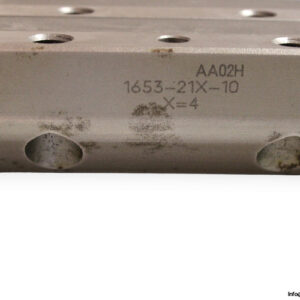

Rexroth Star 1653-21X-10 X=4 Ball Runner Block FLS

Manufacturer: Rexroth Star
Type: Ball Runner Block FLS
MNR: R165321410

Size: 25 mm
Mechanical Format: KWC
Design: FLS – Flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 30400 N
Static Load Capacity C0: 45500 N
Dynamic Torsional Moment Load Capacity M_t:  430 Nm
Dynamic longitudinal moment load capacity ML: 650 Nm
Accuracy Class: N – Normal
Preload Class: C1

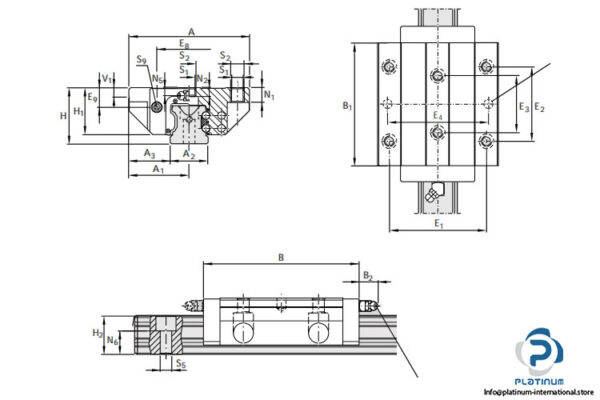

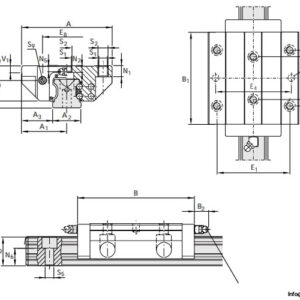

Dimensions
Width (A): 70 mm
Length (B): 103 mm
Height of system(H): 36 mm
Height of block (H₁): 29.5 mm
E1: 57 mm
E2: 45 mm
Admissible Operating Temperature: -10 °C … +80 °C
