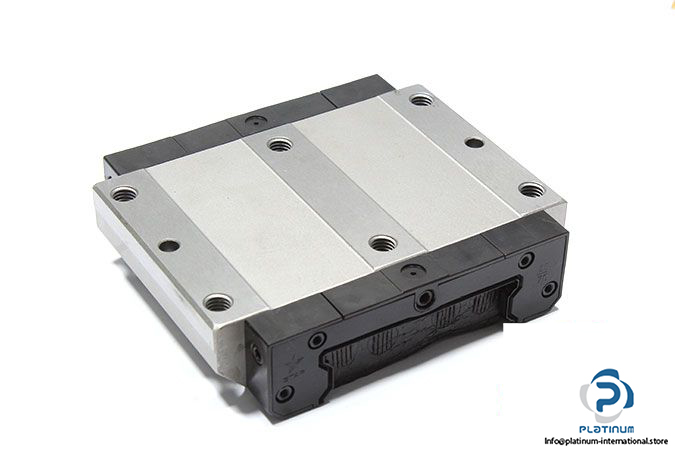

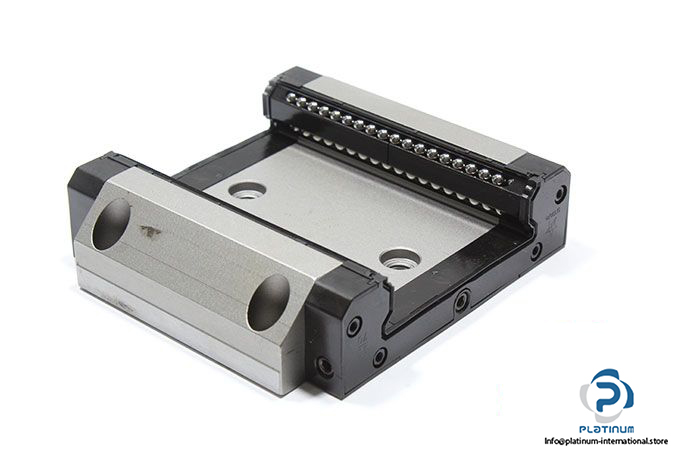

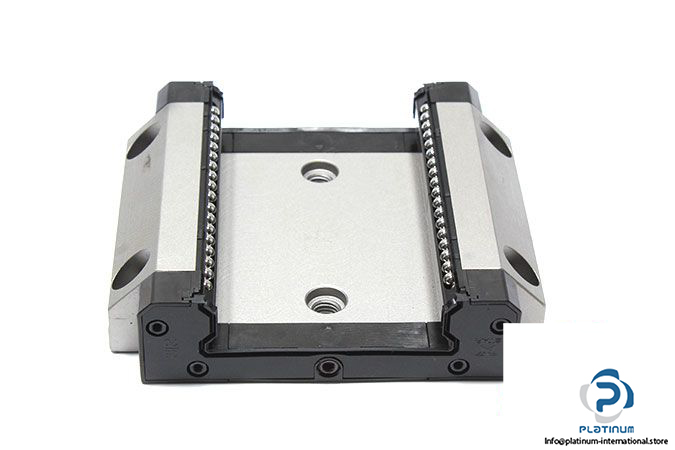

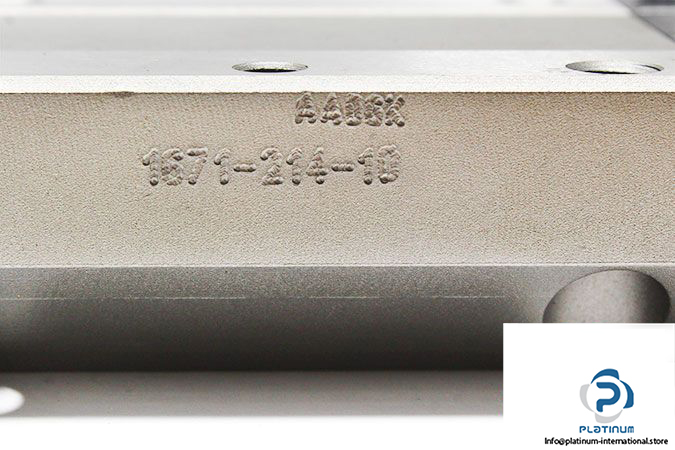

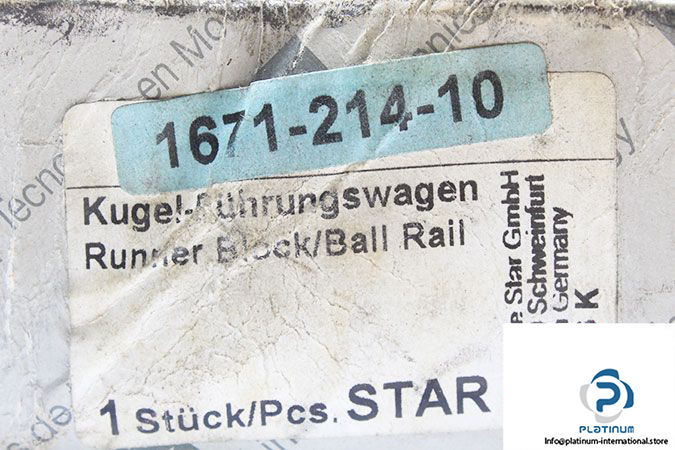

Rexroth Star 1671-214-10 Ball Runner Block BNS

Manufacturer: Rexroth Star

Type: Ball Runner Block BNS

MNR: 167121410

Size: 25/70

Mechanical Format: KWC

Design: BNS – Wide, Normal, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 30400 N

Static Load Capacity C₀: 45500 N

Dynamic Torsional Moment Load Capacity M_t:  1130 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 345 Nm

Accuracy Class: N – Normal

Preload Class: C1 – Low

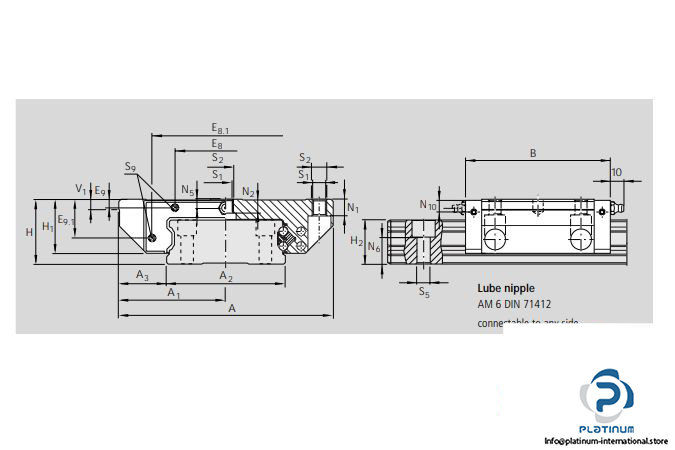

Dimensions

Width (A): 120 mm

Length (B): 105 mm

Height (H₁): 30 mm

Admissible Operating Temperature: -10 … +80 °C

Weight: 1.8 kg
