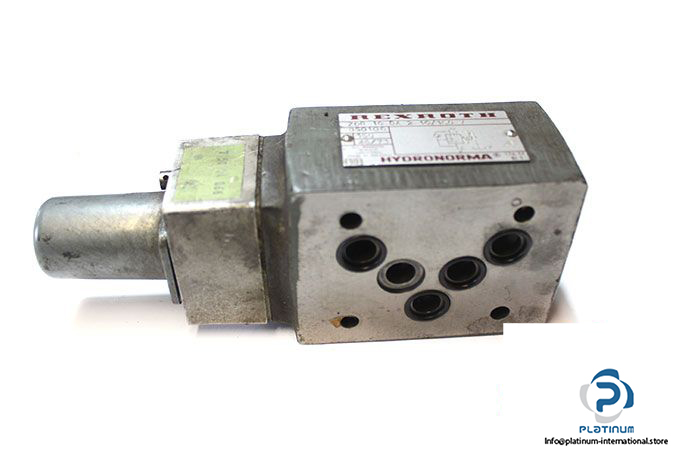

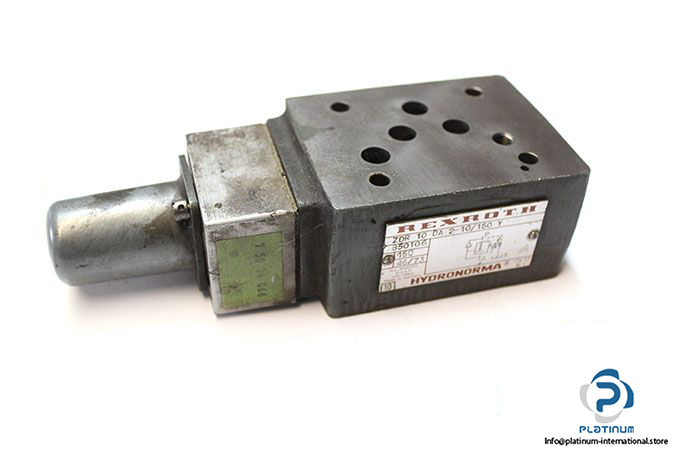

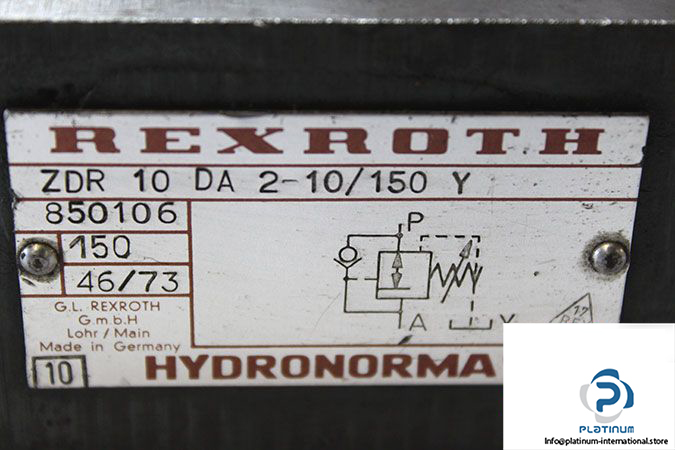

Rexroth ZDR 10 DA 2-10/150 Y Pressure Reducing Valve Direct Operated

Manufacturer: REXROTH

Type: Pressure Reducing Valve Direct Operated

Model: ZDR10DA2-10/150 Y

Nominal Size: 10

Adjustment Element: Sleeve with hexagon and protective cap

Ambient temperature range: -30 ….. +80 °C

Maximum operating pressure (Inlet):315 bar

Maximum operating pressure (Output):150 bar

Back pressure port T(Y): 160 bar

Maximum Flow Rate: 80 L/min

Fluid Temperature Range: -30 ….. +80 °C

Viscosity range:10…800 mm²/s

Connection: Sub-plate

Weight: 2.60 kg
