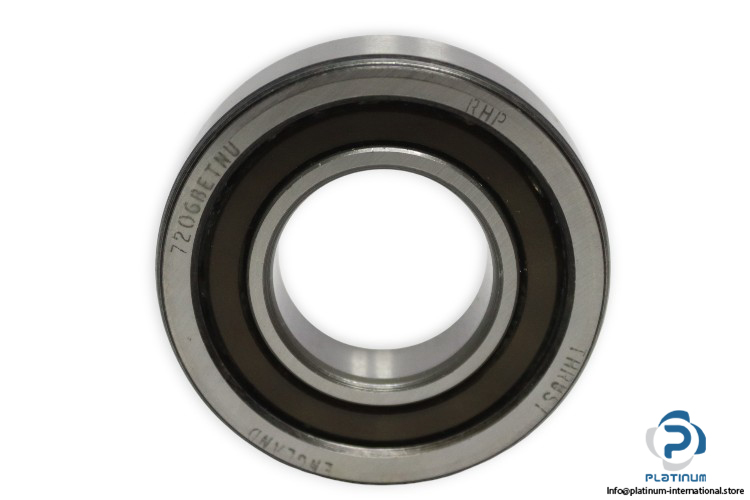

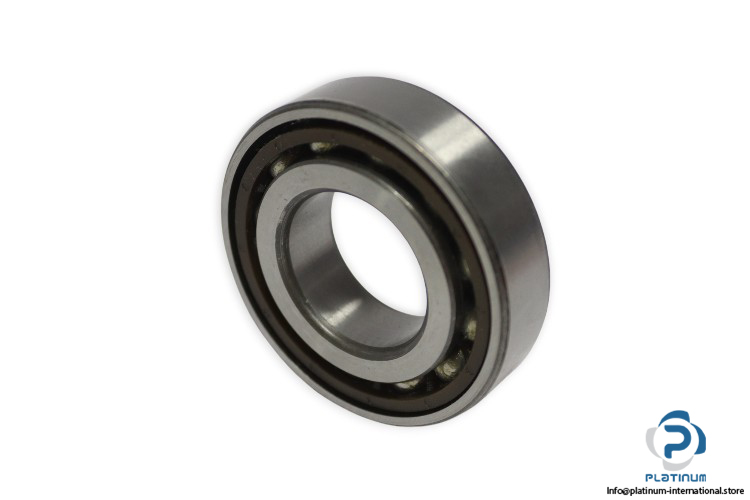

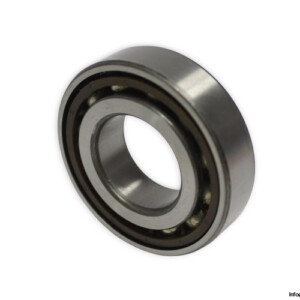

RHP 7206 Betnu Angular Contact Ball Bearing
Manufacturer: RHP
Type: ANGULAR CONTACT BALL BEARING

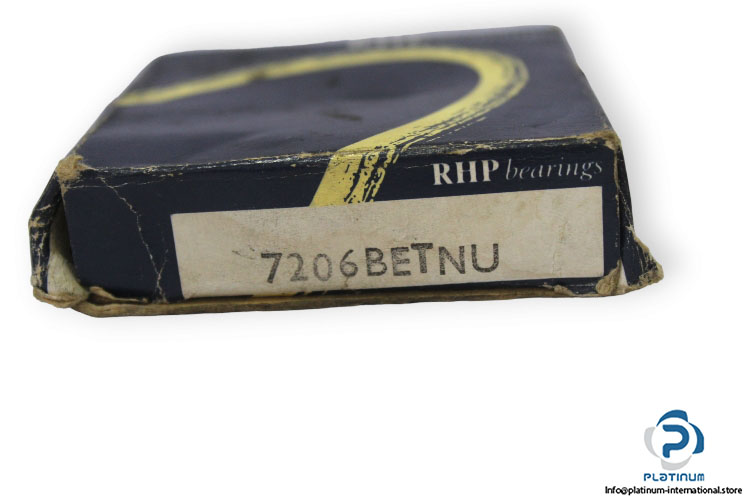

Model: 7206 BETNU
Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 16 mm
Basic load ratings:
Dynamic Cr: 23400 N
Static C0r: 14300 N
Limiting speed with (Oil): 12700 rpm
Limiting speed with (Grease): 9400 rpm
Contact Angle: B, 40°
Cage: TN, Polyamide cage, ball located
Universal Matching: U, Universally faced single bearing
Capacity: E, High capacity metric bearing
