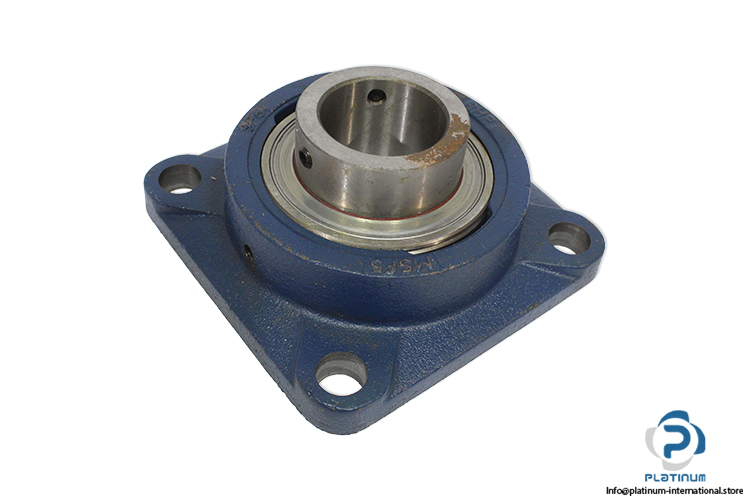

RHP MSF45 Four-Bolt Square Flange Unit
New
In stock6 unitsReady to ship
Flange Unit RHP MSF45 Four-Bolt Square Flange Unit features a 45 mm shaft diameter, high load capacity up to 35000 N, and durable cast iron housing, designed for reliable industrial shaft support
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

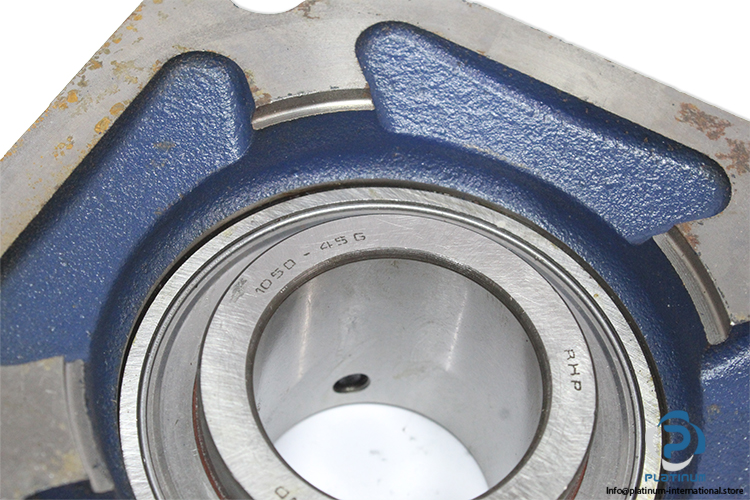

| Bearing No. | 1050-45G |

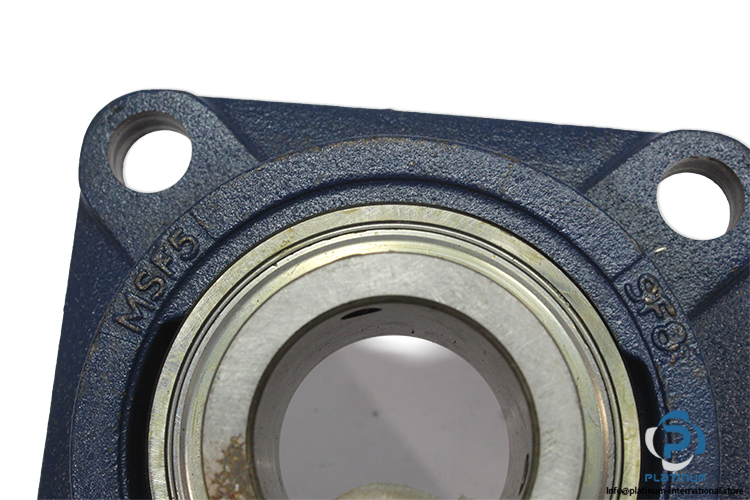

| Housing No. | MSF5 |

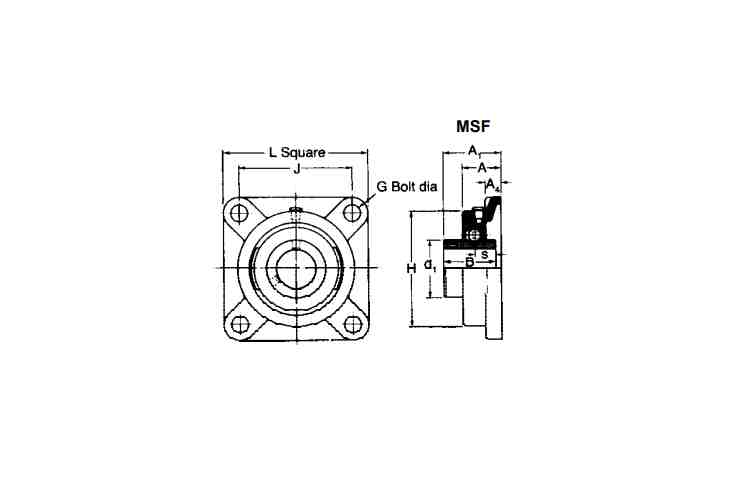

| Shaft diameter d | 45 mm |
| Overall length L | 142.9 mm |
| H | 115.9 mm |
| J | 111 mm |
| G | 16 mm |
| A | 39.7 mm |
| B | 51.59 mm |
| ISO load ratings dynamic | 35000 N |
| ISO load ratings Static | 23200 N |
| Speed | max. 3400 rev/min |
| Mounting | Four-Bolt Flange |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097089 |
| Weight | 2,58 |
