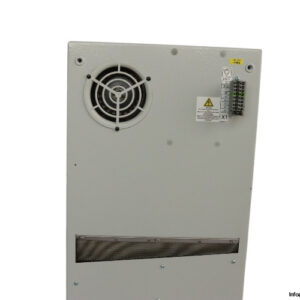

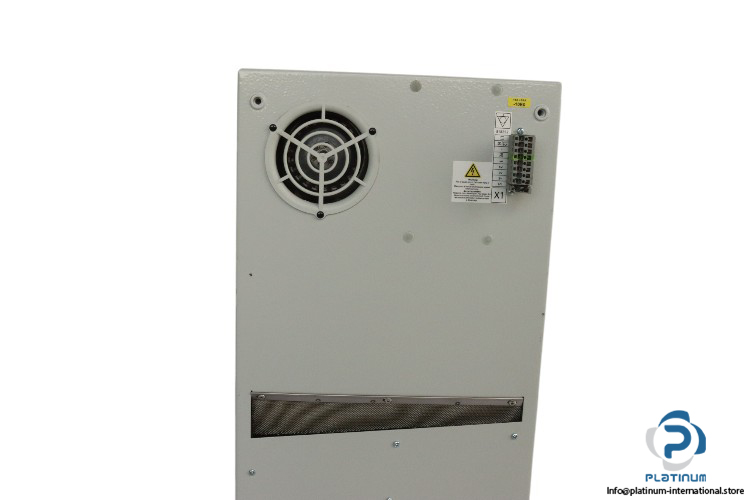

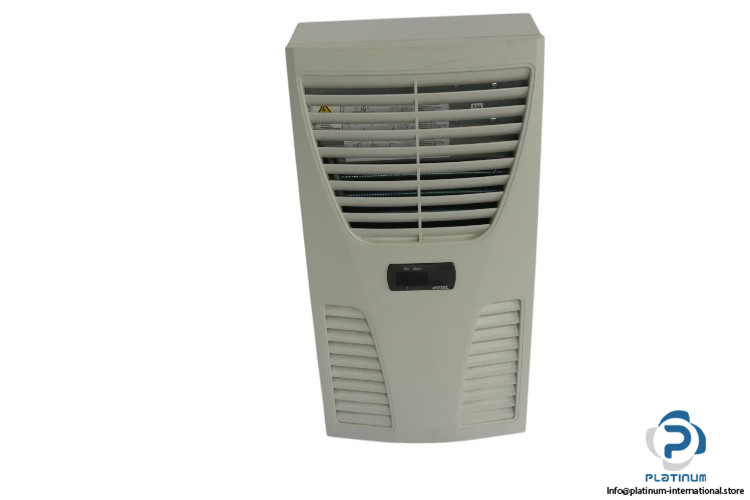

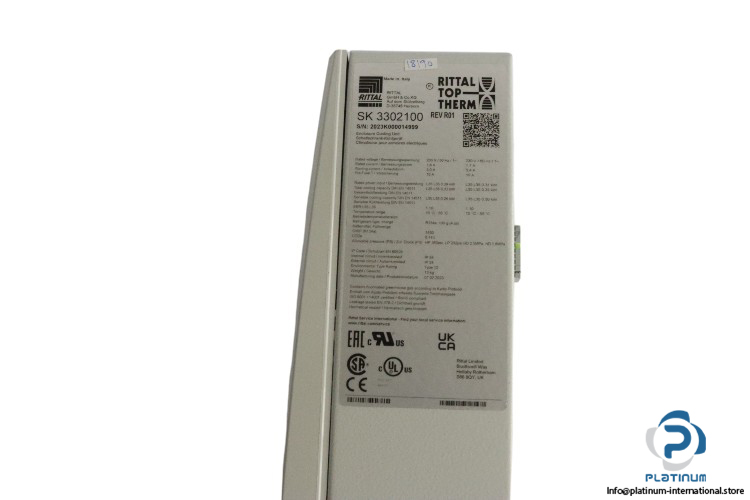

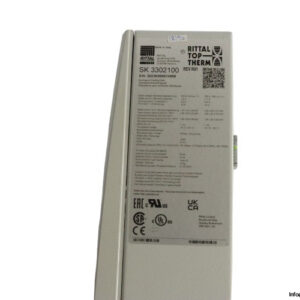

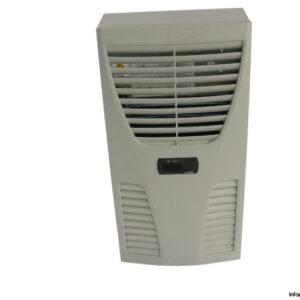

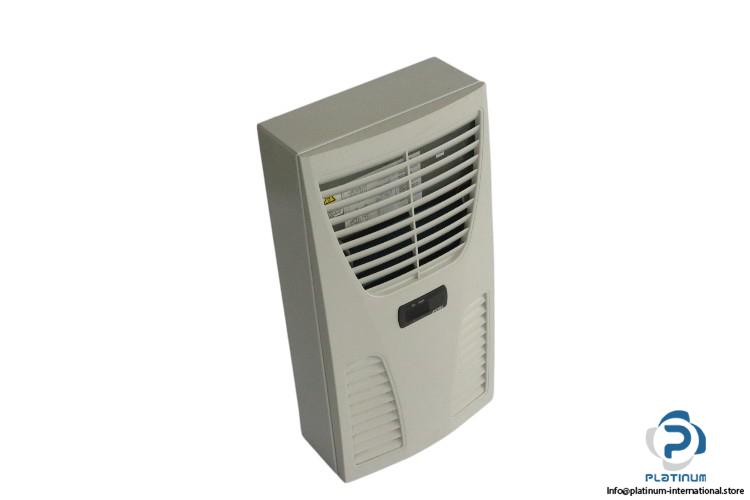

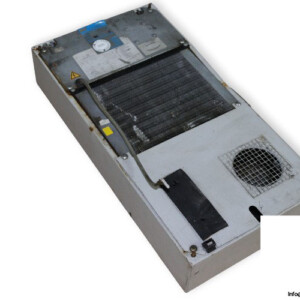

Rittal SK 3302100 Wall-Mounted Cooling Unit
699,99$
Wall-Mounted Cooling Unit
The Rittal SK3302100 TopTherm Wall-Mounted Cooling Unit offers 230 V-AC power, 0.32 kW cooling capacity, and IP34/IP54 protection, designed for maintaining optimal temperature in industrial environments.Rittal SK3302100 TopTherm Wall-Mounted Cooling Unit
The Rittal SK3302100 TopTherm Wall-Mounted Cooling Unit is a highly efficient and reliable cooling solution designed for use in industrial environments. This unit is capable of providing a cooling capacity of 0.32 kW at 50 Hz and 0.34 kW at 60 Hz, ensuring optimal temperature regulation for sensitive electrical equipment. With a compact, wall-mounted design, this unit fits perfectly into environments where space is limited. It offers both external and internal circuit protection with IP34 and IP54 ratings, respectively, and operates efficiently across a wide temperature range of 20°C to 55°C.
Manufacturer: Rittal
Type: TopTherm Wall-Mounted Cooling Unit
Model: SK3302100
Series: SK
Rated Current Max.:
Start-up Current Max.:
Rated Power Input L35 L35:
Total Cooling Capacity L35 L35:
Sensible Cooling Capacity L35 L35:
Air Throughput (Unimpeded Air Flow):
The Rittal SK3302100 TopTherm Wall-Mounted Cooling Unit is a robust, efficient solution designed to maintain optimal cooling for electrical enclosures in a variety of industrial applications, ensuring long-term reliability and performance.
| Voltage | 230 V-AC, 1-phase |
| Frequency | 50/60 Hz |
| At 50 Hz | 1.6 A |
| At 60 Hz | 1.7 A |
| At 50 Hz | 3 A |
| At 60 Hz | 3.4 A |
| At 50 Hz | 0.29 kW |
| At 60 Hz | 0.31 kW |
| At 50 Hz | 0.32 kW |
| At 60 Hz | 0.34 kW |
| At 50 Hz | 0.28 kW |
| At 60 Hz | 0.30 kW |
| Design | Wall-mounted |
| Pre-fuse T | 10 A |
| External Circuit | 310 m³/h |
| Internal Circuit | 345 m³/h |
| Material | Sheet Steel |
| Temperature Range | 20 to 55°C |
| Protection Degree | External Circuit IP34, Internal Circuit IP54 |
| Dimensions | 280 x 550 x 140 mm |
