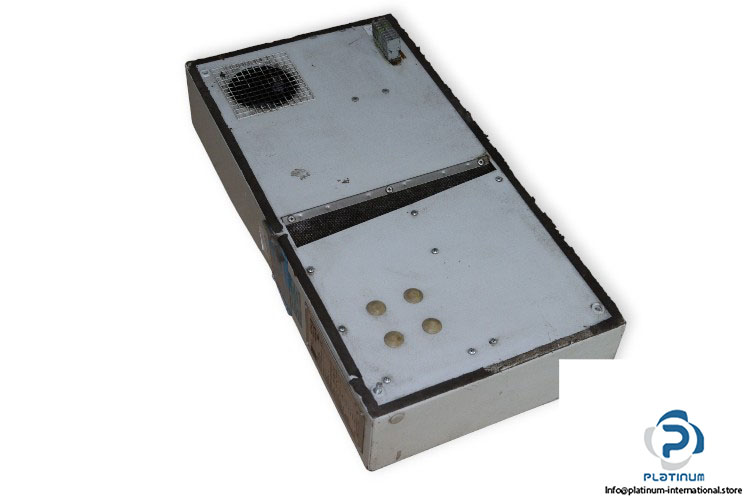

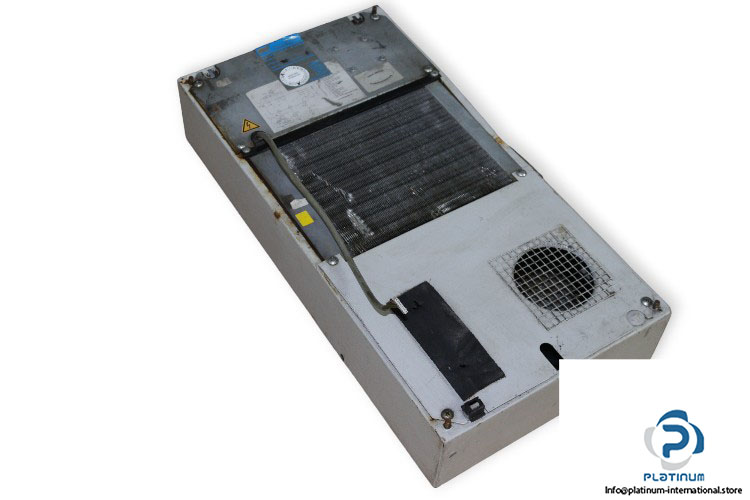

Rittal SK 3302100 Enclosure Cooling Unit Without Cover

Manufacture: Rittal
Type: Enclosure Cooling Unit
Model: SK3302100
Series: SK

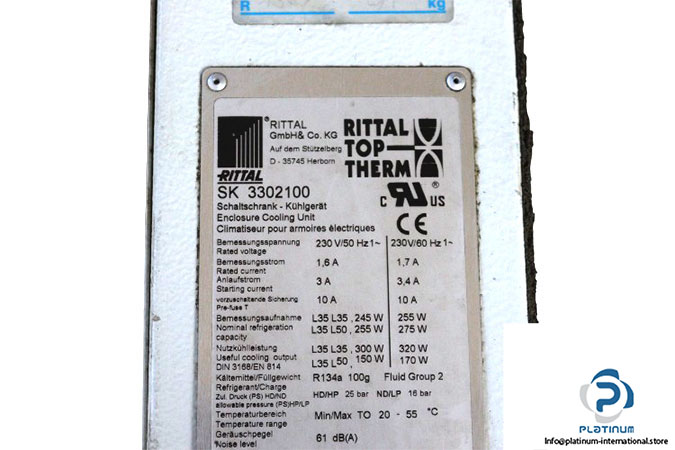

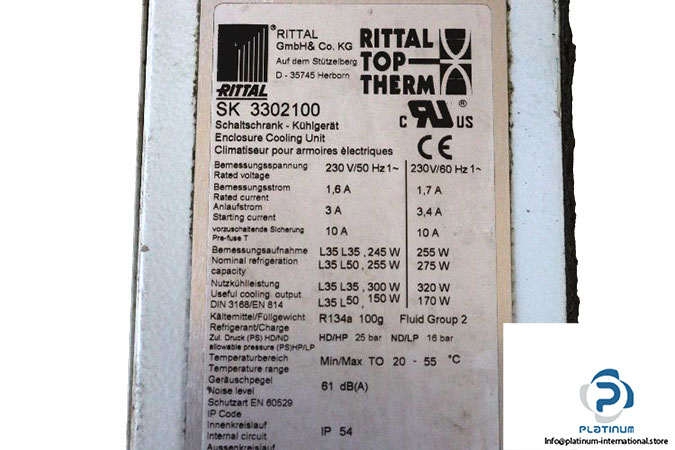

Voltage: 230 V-AC/1-phase
Frequency: 50/60 Hz
Rated current max.:
At 50 Hz: 1.6 A
At 60 Hz: 1.7 A
Start-up current max.:
At 50 Hz: 3 A
At 60 Hz: 3.4 A
Nominal refrigeration capacity: L35 L35 (245/255 W), L35 L50 (255/275 W) , L35 L35 (300/320 W), L35 L50 (150/170 W)
Design: wall-mounted
Permissible operating pressure (p.max.): 25 bar
Noise level: 61 dB(A)
Pre-fuse T: 10 A
Air throughput (unimpeded air fow):
External circuit: 310 m³/h
Internal circuit: 345 m³/h
Material: Sheet Steel
Temperature range: 20 … 55°C
Protection degree: External circuit IP 34, Internal circuit IP 54
Dimensions: 280 x 550 x 140 mm
