Rittal SV 9342.550 Circuit-Breaker Adaptor
New
In stock1 unitReady to ship
Circuit-Breaker Adaptor
The Rittal SV 9342.550 adaptor provides secure and durable mounting for circuit breakers, supporting up to 690 V AC and 160 A in industrial power distribution systems.160A3-Pole690V9342.550AdaptorBreakerCircuitComponentElectricalIndustrialIP30MountingPolyamideRittalSV
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

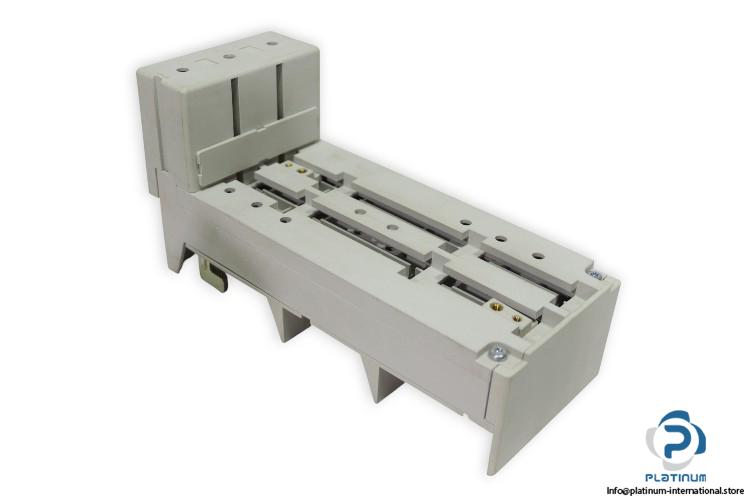

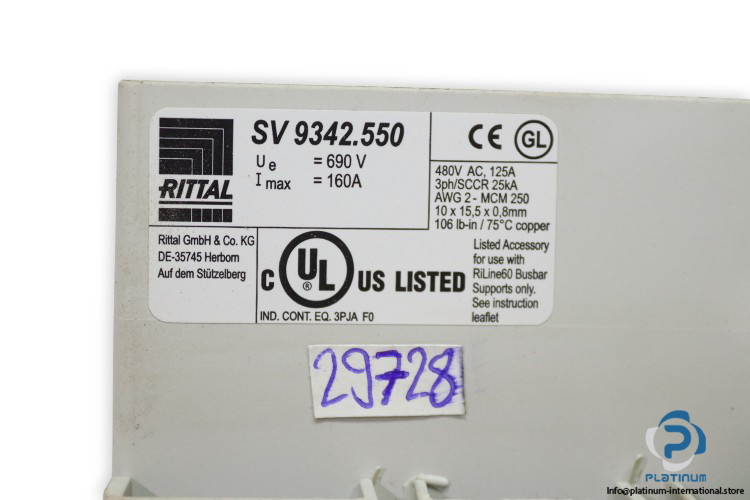

Rittal SV9342.550 Circuit-Breaker Adaptor
The Rittal SV9342550 Circuit-Breaker Adaptor is a durable and high-performance mounting solution designed for connecting circuit breakers within electrical distribution systems. Built from robust polyamide material, it offers dependable mechanical support and safe operation in industrial environments.
Manufacturer: Rittal
Type: Circuit-Breaker Adaptor
Model: SV 9342.550
| Rated Operational Voltage Max. | 3-Phase 690 V AC |
| Rated Operational Current Max. | 160 A |
| Frequency | 50 / 60 Hz |
| Breaking Capacity | 25 kA |
| Poles No. | 3-Pole |
| Material | Polyamide |
| Protection Class | IP30 |
| Ambient Temperature | -25 / 55 °C |
| Dimension | 225 x 90 x 60 mm |
