Rmatik 80200CMKS Pneumatic Cylinder
New
In stock1 unitReady to ship
Pneumatic Cylinder
The RMATIK 80200CMKS is a high-performance double-acting pneumatic cylinder with 80 mm bore and 200 mm stroke, offering 10 bar pressure capacity and reliable operation for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

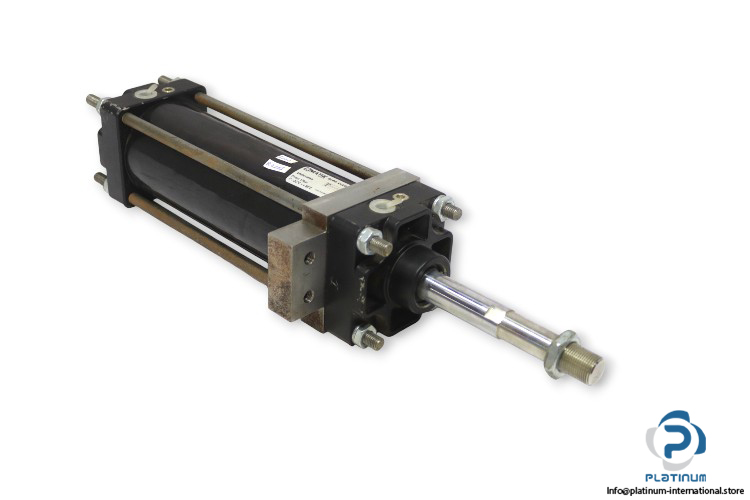

RMATIK 80200CMKS Pneumatic Cylinder
The RMATIK 80200CMKS Pneumatic Cylinder is a robust double-acting actuator designed for efficient motion control in industrial automation systems. Engineered for durability and precision, it ensures smooth operation and reliable performance under high-pressure conditions.

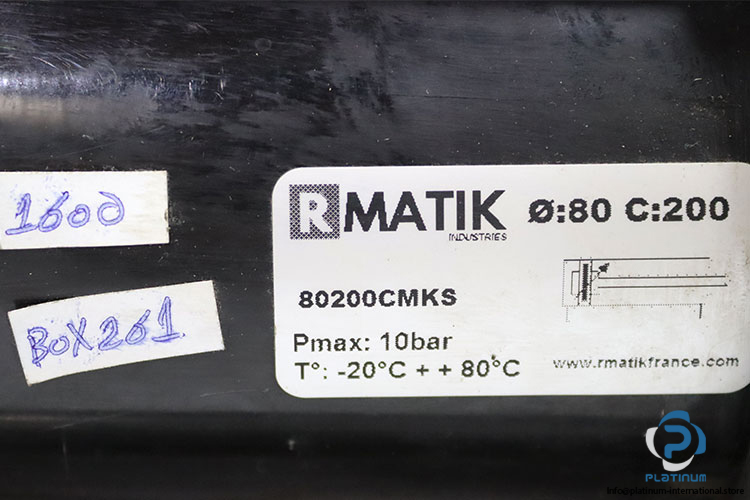

Manufacturer: RMATIK
Type: Pneumatic Cylinder
Model: 80200CMKS
| Media | Compressed Air |
| Bore Diameter | 80 mm |
| Stroke | 200 mm |
| Bore x Stroke | 80 x 200 mm |
| Rod Diameter | 22 mm |
| Frame Dimensions | 95 x 345 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Temperature Range | -20 to 80 °C |
