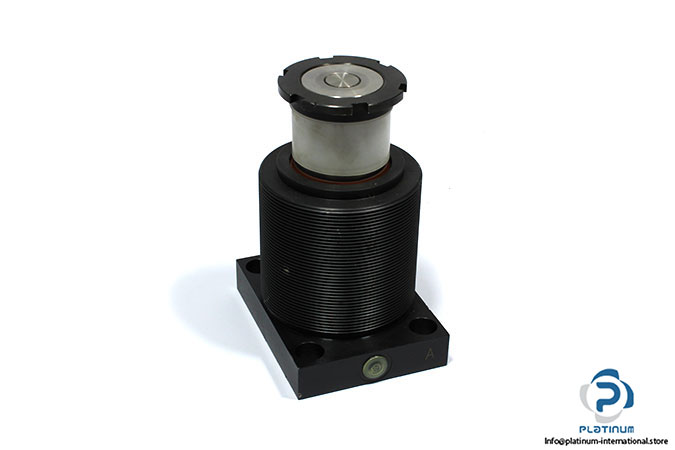

Roemheld 1897104 Double-Acting Block Cylinder

Manufacturer: ROEMHELD

Type: Double-acting block cylinder

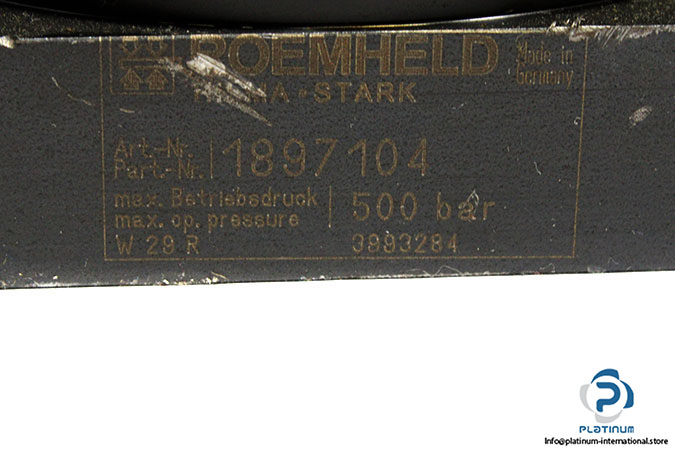

Model: 1897104

Functioning: double acting

Piston diameter: [mm] 63

Rod diameter: [mm] 50

max. pulling force: [kN] 57.7

max. operating pressure: [bar] 500

Seals: NBR

Clamping stroke: [mm] 15

Extended piston rod: without

max. clamping force: [kN] 41

Swing mechanism: standard

Overload protection device: with

Query of: without

Swing angle: [°] 90

Swing direction: cw

Swing stroke: [mm] 10

Total stroke: [mm] 25

Wiper material: FKM

Clamping arm seat: cone 1:10

Connection: G 1/4
