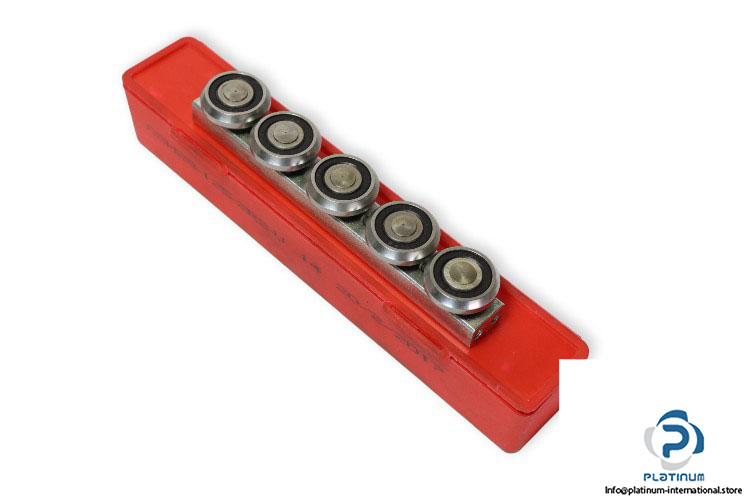

Rollon CSW28-125-2RS-U Linear Roller Bearing

Manufacturer: ROLLON
Type: SLIDER
Model: CSW 28-125 2RSU
Number of rollers: 5
Type of roller: CPA28
Number of fixing holes: 4

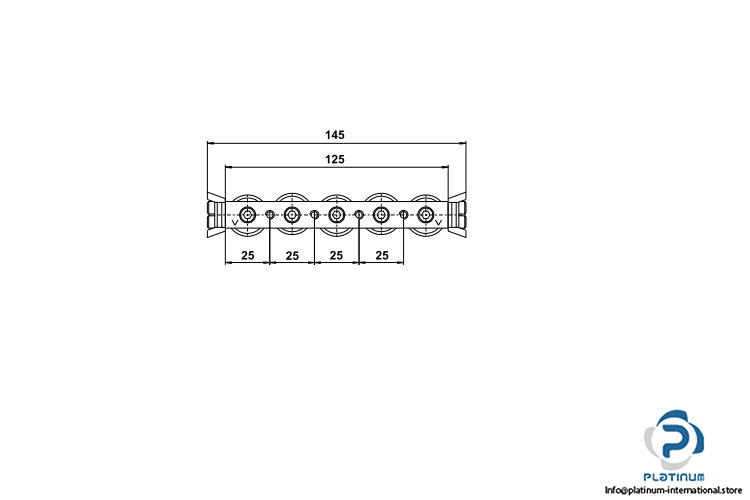

Dimensions:
Nominal Diameter: 28 mm
Slider body length: 125
S1: 0.6 mm
S2: 1.3 mm
B_min: 23.3 mm
B_nom: 23.9 mm
B_max: 25.2 mm
Roller protection: 2RS, shield type
Type of wiper: U
Acceleration: 15 m/s²
Dynamic Load Capacity: 5065 N
Radial Static Load Capacity: 2580 N
Axial Static Load Capacity: 900 N
Moment Capacity
Mx: 11.5 Nm
My: 29 Nm
Mz: 81.7 Nm
Operating Temperature: – 20°C/+120°C
