Rollon MCR105LI Linear Actuator
New
In stock3 unitsReady to ship
Linear Actuator
Rollon MCR105LI Linear Actuator with a 196.5 cm total length, 1348 mm stroke, and 5 m/s maximum speed. Featuring high load capacities of up to 3300 N and excellent precision for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

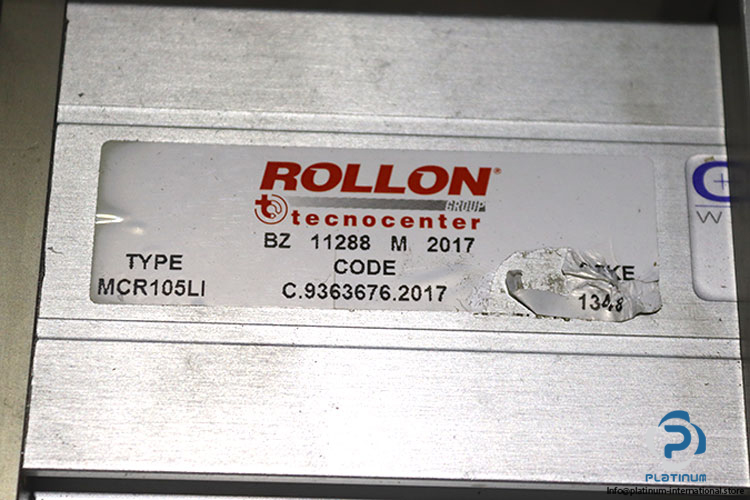

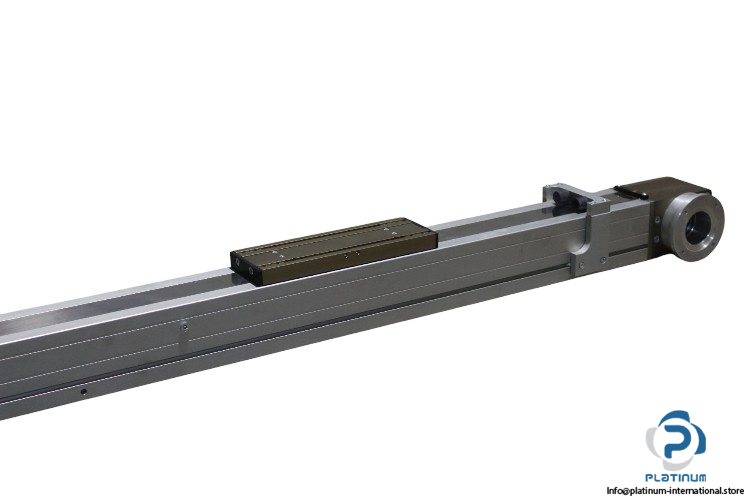

Rollon MCR105LI Linear Actuator
The Rollon MCR105LI Linear Actuator is designed for precise and efficient linear motion with a robust structure. Ideal for demanding industrial applications, it offers excellent load capacities and high-speed performance.
Manufacturer: Rollon
Model: MCR105LI
Type: Linear Actuator
Part No.: C.9363676

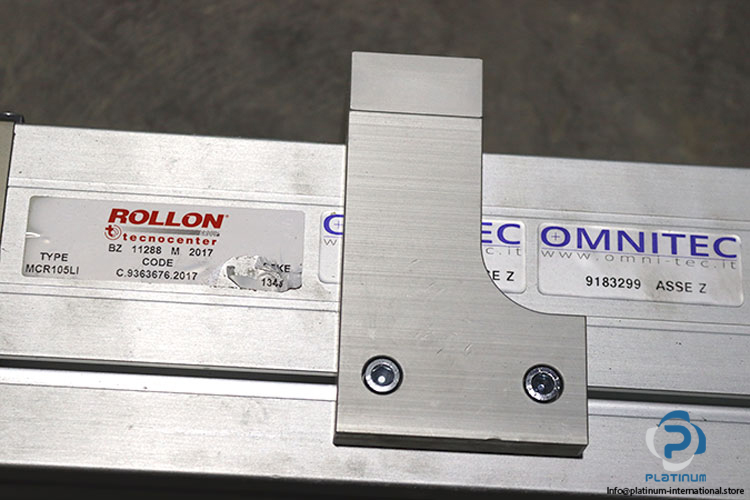

Assembly (Z) Part No.: 9183299
Maximum Simultaneous Stresses:
Load Capacities:
| Size | 105 |
| Series | M, compact closed section |
| Handling | C, with belt |
| Total Length | 196.5 cm |
| Stroke | 1348 mm |
| Pulley Diameter | 92.31 mm |
| Carriage Displacement per Pulley Turn | 290 mm |
| Pole Holder Dimension | 105.9 x 145 mm |
| Type of Belt | 40 AT 10 |
| Belt Width | 40 mm |
| Maximum Speed | 5 m/s |
| Maximum Acceleration | 20 m/s² |
| Mx | 185 Nm |
| My, Mz | 580, 220 Nm |
| Fx | 3300 N |
| Fy, Fz | 1500, 2950 N |
