Rollon MCR105LI Linear Actuator
New
In stock3 unitsReady to ship
Linear Actuator
Rollon MCR105LI Linear Actuator features a 1048 mm stroke and 5 m/s maximum speed, with a 40 mm belt width for high precision and performance in industrial applications. It offers a compact design and high load capacity for efficient operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

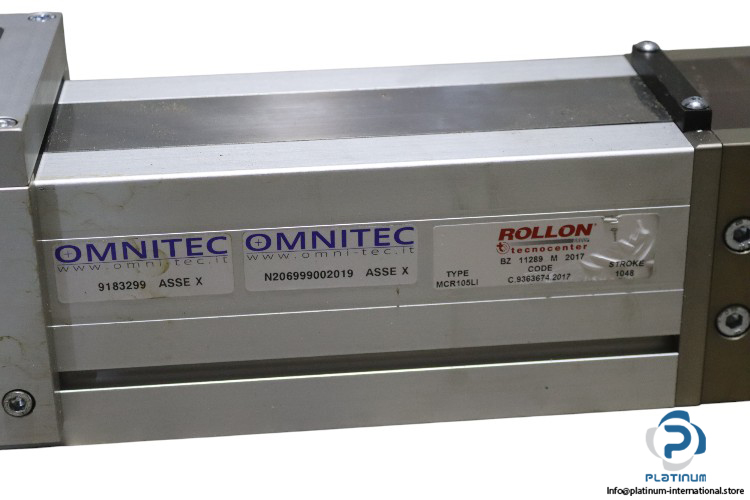

Rollon MCR105LI Linear Actuator
The Rollon MCR105LI Linear Actuator offers efficient movement with a compact design, ideal for high-speed and high-precision applications. This model is equipped with a belt handling system for smooth operation and high load capacity.
Manufacturer: Rollon
Model: MCR105LI
Type: Linear Actuator

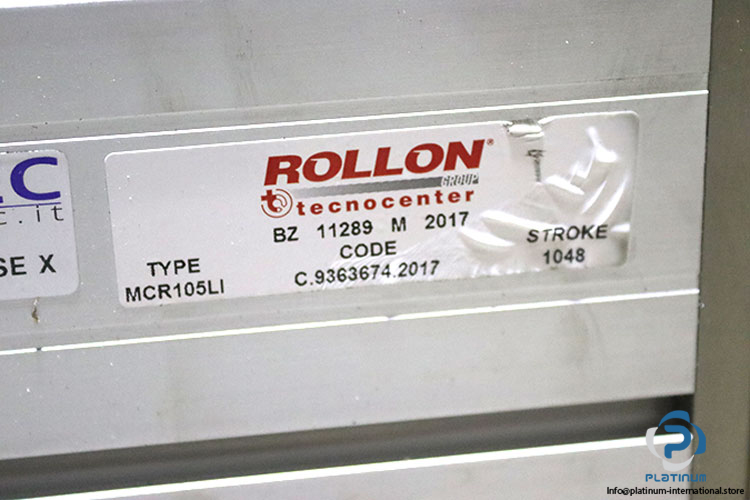

Part No.: C.9363674
Assembly (X) Part No.: 9183299
Maximum Simultaneous Stresses:
Load Capacities:
| Size | 105 |
| Series | M, compact closed section |
| Handling | C, with belt |
| Total Length | 166.5 cm |
| Stroke | 1048 mm |
| Pulley Diameter | 92.31 mm |
| Carriage Displacement per Pulley Turn | 290 mm |

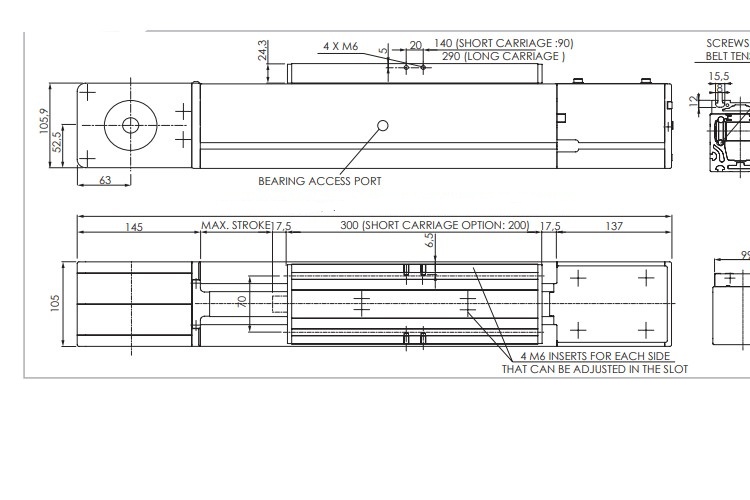

| Pole Holder Dimension | 105.9 x 145 mm |
| Type of Belt | 40 AT 10 |
| Belt Width | 40 mm |
| Maximum Speed | 5 m/s |
| Maximum Acceleration | 20 m/s² |
| Mx | 185 Nm |
| My, Mz | 580, 220 Nm |
| Fx | 3300 N |
| Fy, Fz | 1500, 2950 N |
