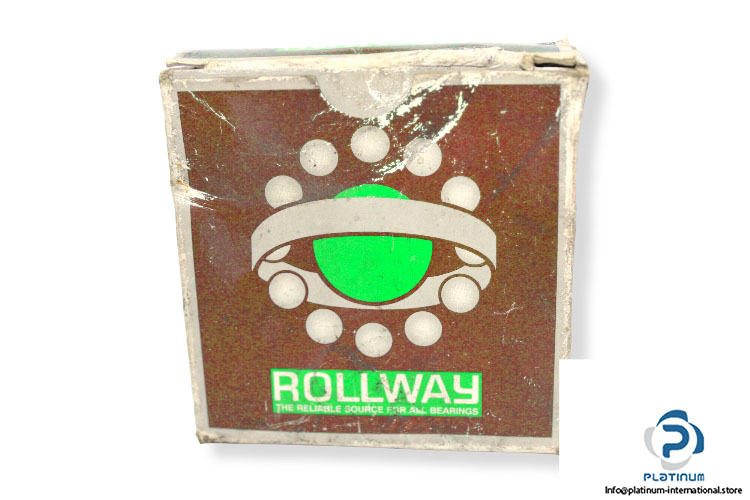

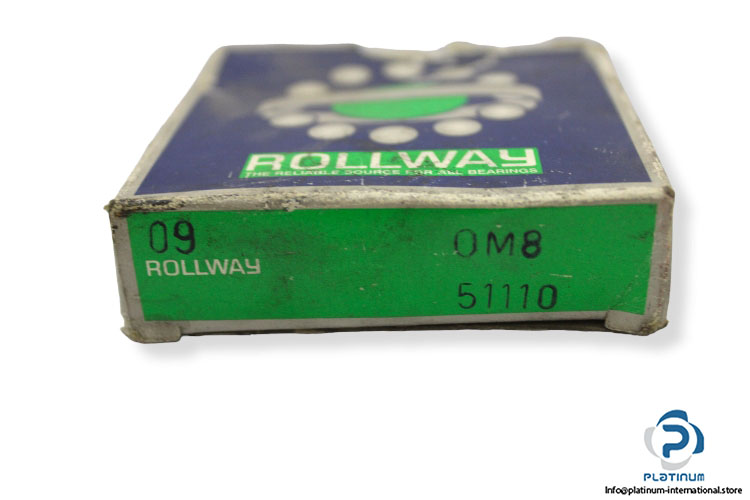

Rollway 51110 Thrust Ball Bearing

Manufacturer: Rollway

Type: Single Direction Thrust Ball Bearings

Model: 51110

Dimensions

Bore diameter d: 50 mm

Outer diameter D: 70 mm

Height T: 14 mm

Outside diameter shaft washer d₁: 70 mm

Inner diameter housing washer D₁: 52 mm

Minimum chamfer dimension r_{s min}: 0.6 mm

Basic load ratings:

Dynamic C_a: 27200 N

Static C_0a: 69200 N

Allowable speed:

Grease lubrication: 3000 rpm

Oil lubrication: 43000 rpm

Cage: Steel Cage
