Rosemount 3051 L3 AC2 TD22 AA L4 Q4 Differential Pressure Transmitter
Used
In stock1 unitReady to ship
Differential Pressure Transmitter
The Rosemount 3051 L3 AC2 TD22 AA L4 Q4 is a precise and rugged differential pressure transmitter featuring HART® protocol, 250 bar stat pressure, and a wide temperature range.20025030513164-20AlloyAutomationbarC-276DiaphragmdifferentialElectronicFillFlangeFluidGasketHartIndustrialinsertIP66mAOutputPressureProtectionProtocolRosemountSiliconeSSTStatTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rosemount 3051 L3 AC2 TD22 AA L4 Q4 Differential Pressure Transmitter
The Rosemount 3051L3AC2TD22AAL4Q4 is a highly reliable differential pressure transmitter designed for precise industrial pressure measurements. With wide-ranging compatibility, robust materials, and HART® protocol communication, it ensures accurate performance in demanding environments.
Manufacturer: ROSEMOUNT
Type: Differential Pressure Transmitter
Model: 3051 L3 AC2 TD22 AA L4 Q4
Process Connection:
Material:
Attachment:

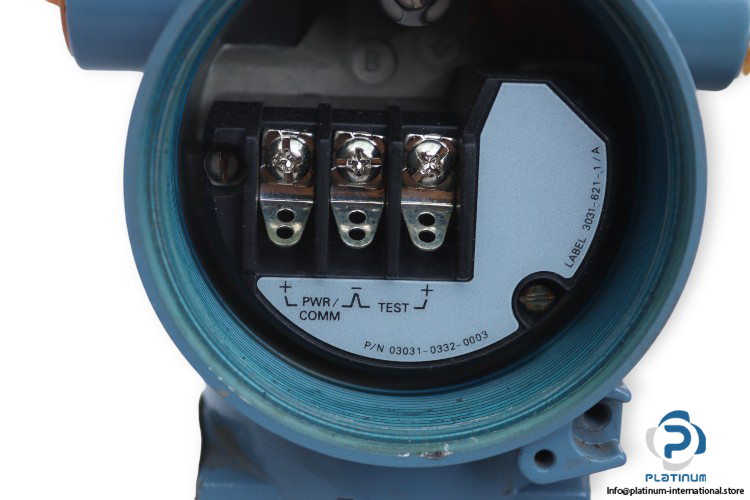

ROSEMOUNT 03031-0332-0003 ELECTRICAL INSERT

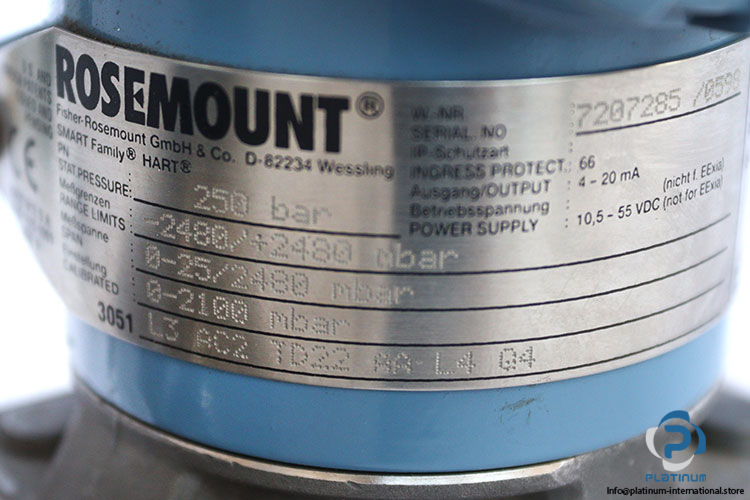

| Setpoint Pressure Range | -2480 / 2480 mbar / -1000 / 1000 inH2O |
| STAT Pressure | 250 bar |
| Span | 0-25 / 2480 mbar |
| Supply Voltage | 10.5 / 55 V DC |
| Digital Output Signal | 4 / 20 mA Based on HART® Protocol |
| Power Consumption | 18 / 36 mW |
| Sensor Fill Fluid | Silicone 200 |
| Size | 3-in./DN 80 |

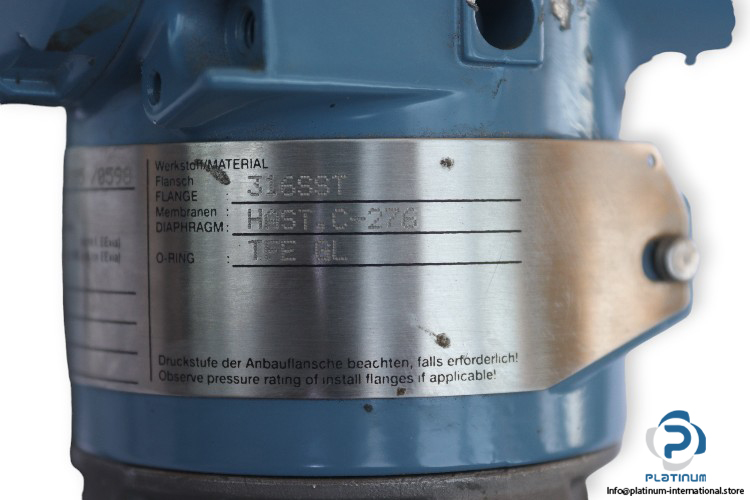

| Material | Alloy C-276 |
| Housing | Aluminum |
| Isolating Diaphragm | Alloy C-276 |
| Flange Adapter | 316 SST |
| O-Ring | Glass-Filled PTFE |
| Bolting | Austenitic 316 SST Bolts |
| Flange Size | DN 80 |
| Protection Class | IP66 |
| Temperature | -40 / 85 °C |
| Dimensions | 209 x 104 x 130 mm |
| Supply Voltage | 10.5 / 55 V DC |
| Output Current | 4 / 20 mA HART |
