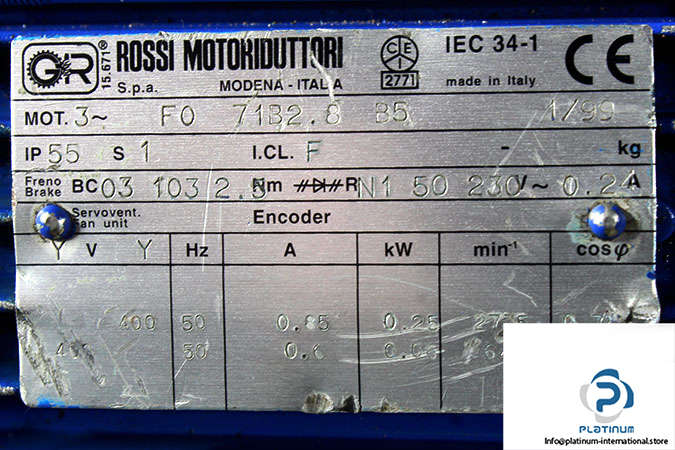

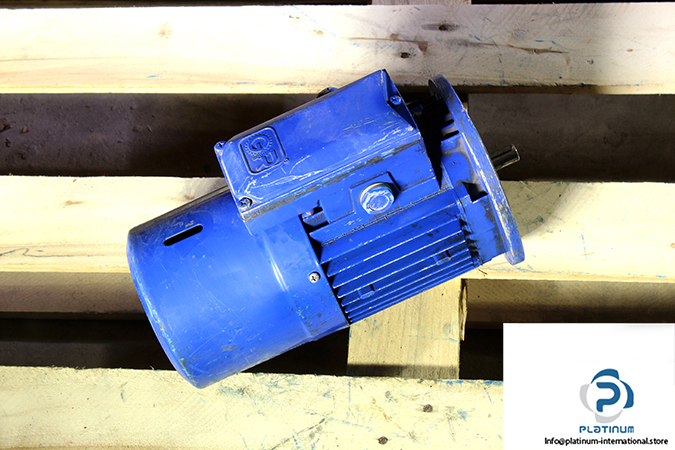

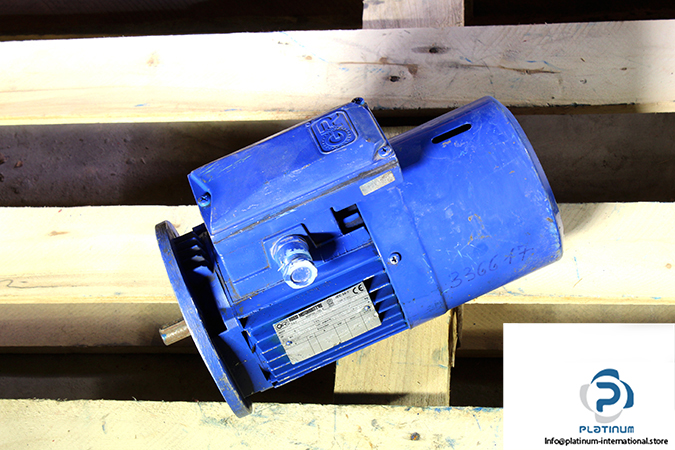

Rossi F0 71B2.8 B5 Brake Motor
Manufacturer: Rossi
Type: Brake Motors
Model: F071B2.8B5
Motor Speed [r/min]: 2735/2645
Motor Power [kW]: 0.25/0.3
Rated Voltage [V]: 400/400
Nominal Current [A]: 0.85/0.6
Motor Frequency [Hz]: 50
Cos Phi: 0.7/0.5
Thermal Class: F
Duty: S1
Protection Class [IP]: 55
Mounting Position [MI]: B5
Brake Model: BC03 103
Brake Torque [Nm]: 2.5
Brake Voltage [V]: 230
Brake Current [A]: 0.2
Weight [kg]: 10,6
