Rotaval HDM300 Rotary Valve
New
In stock1 unitReady to ship
11 199,99$

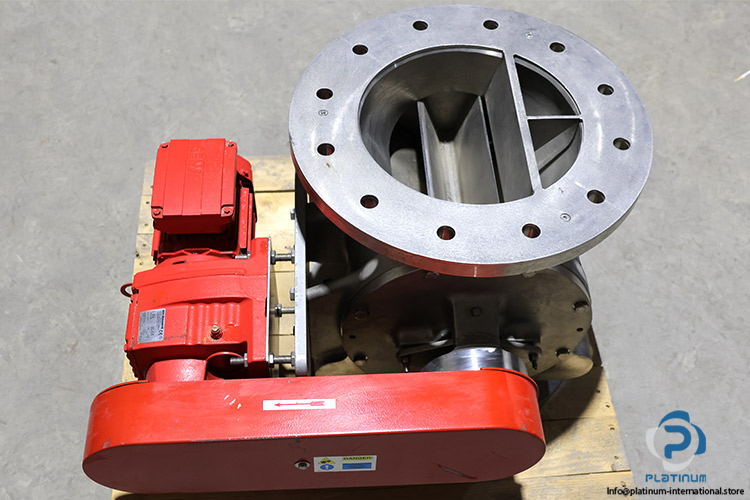

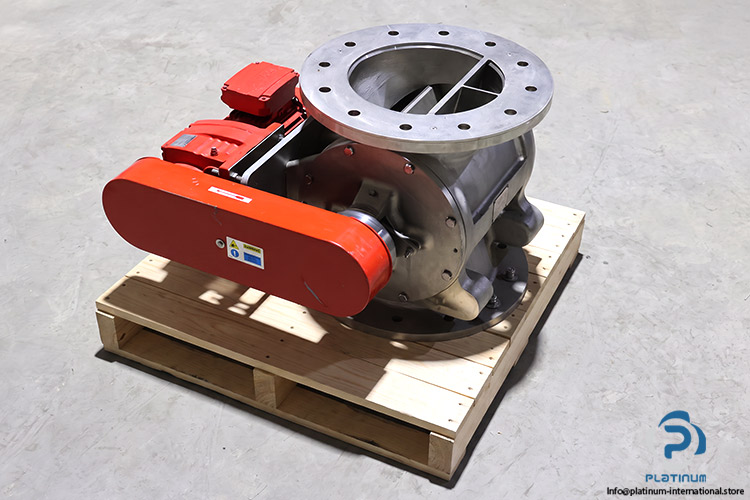

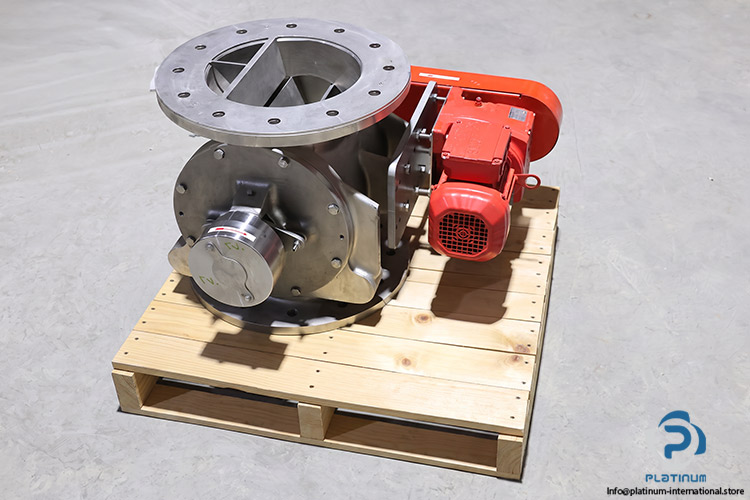

Rotary Valve The ROTAVAL HDM300 is an explosion-proof industrial rotary valve supplied with a SEW-EURODRIVE IE3 helical gearmotor, engineered for reliable bulk material handling, controlled discharge, and demanding ATEX-rated applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

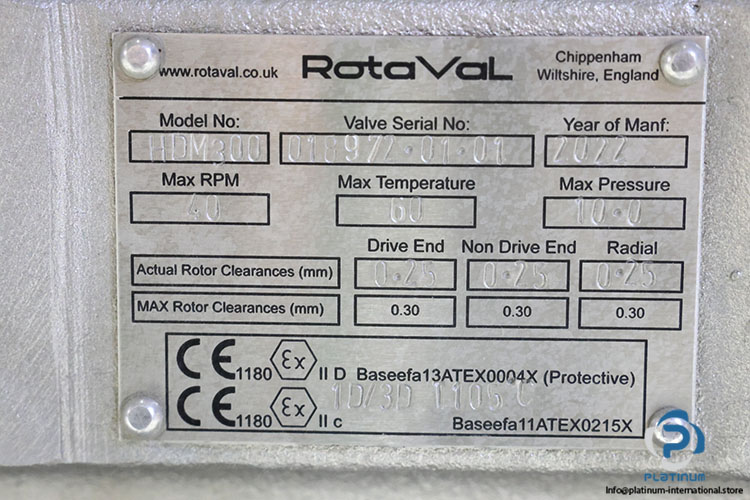

| SN | 018972-01.01 |
| Actual Rotor Clearances (mm) ,Drive End | 0.25 |
| Actual Rotor Clearances (mm) ,Non Drive End | 0.25 |
| Actual Rotor Clearances (mm) ,Radial | 0.25 |
| MAX Rotor Clearances (mm),Drive End | 0.30 |
| MAX Rotor Clearances (mm),Non Drive End | 0.30 |
| MAX Rotor Clearances (mm),Radial | 0.30 |
| Explosion proof | yes |
| Max Pressure[bar] | 10 |
| Max Speed [rpm] | 40 |
| Max Temperature | 60 °C |

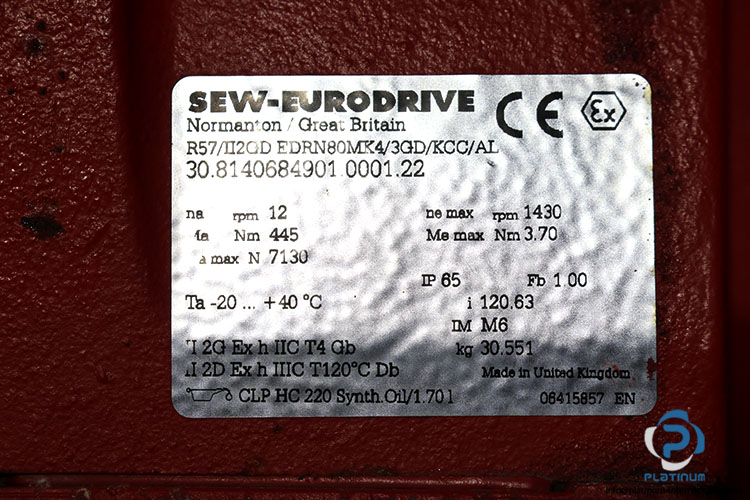

| Attached with | SEW-EURODRIVE 30.8140684901.0001.22 Helical gearmotor |
| Model, gearmotor | R57/II2GD EDRN80MK4/3GD/KCC/AL |
| EX protection (motor) | 002 |
| Speed [r/min] , gearmotor | 1430 / 12 |
| Max. output speed [r/min] , gearmotor | 12 |
| Max. input speed [r/min] , gearmotor | 1430 |
| Total ratio [i] , gearmotor | 120,63 |
| Output torque [Nm] , gearmotor | 445 |
| Max. overhung load [N] , gearmotor | 7130 |
| Service factor SEW-FB, gearmotor | 1,00 |
| Max. input torque [Nm] | 3,70 |
| Mounting position, gearmotor | M6 |
| ISO code, gearmotor | CLP HC 220 |
| Lubricant type, gearmotor | Synth.Oil |
| Lubricant volume [l] , gearmotor | 1,70 |
| Expl.-protected gear unit, gas, gearmotor | II 2G EX H IIC T4 GB |
| Expl.-protected gear unit,dust, gearmotor | II 2D EX H IIIC T120°C DB |
| Ambient temp. gear unit [°C] , gearmotor | -20 ... +40 |
| Enclosure reducer [IP] , gearmotor | 65 |

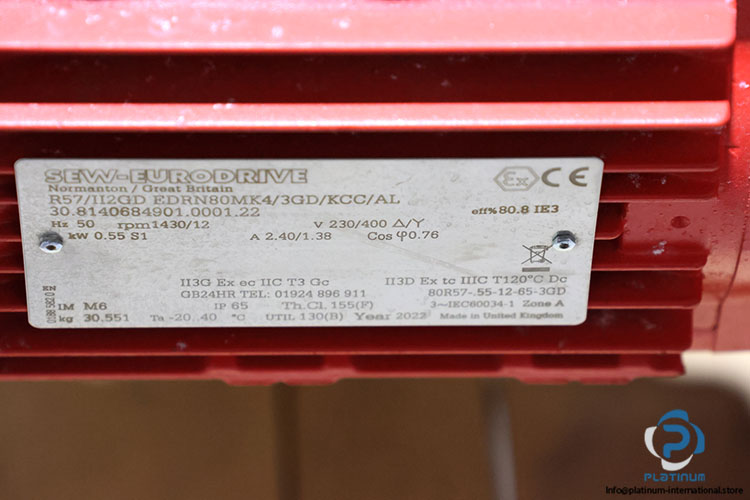

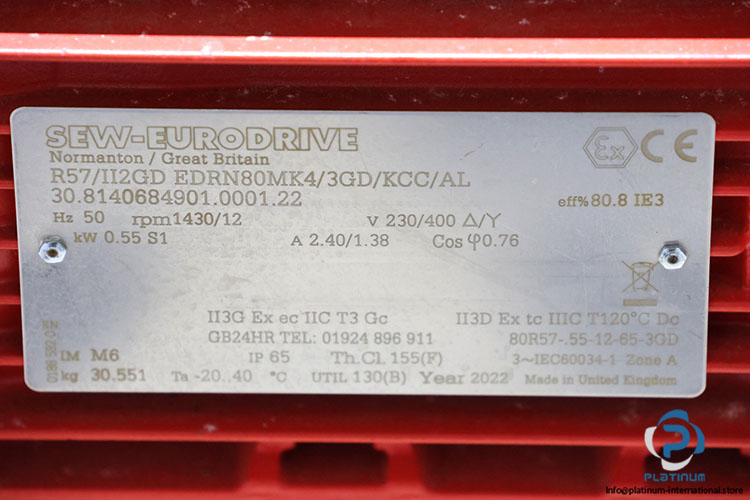

| Motor power [kW] , gearmotor | 0.55 |
| Motor frequency [Hz] , gearmotor | 50 |
| Cyclic duration factor, gearmotor | S1-S10 S1 |
| Motor voltage [V] / conn. Type, gearmotor | 230/400 delta/star |
| Nominal current [A] , gearmotor | 2,40 / 1,38 |
| cos phi, gearmotor | 0,76 |
| Thermal cl.[°C]/Enclosure[IP] , gearmotor | 155(F) / 65 |
| Thermal class utilization [°C] , gearmotor | 130(B) |
| International efficiency class, gearmotor | IE3 |
| Efficiency (100% Pn) [%], gearmotor | 80,8 |
| Efficiency at 50/75/100% Pn [%], gearmotor | 78,6 / 81,0 / 80,8 |
| Design specification (EX) EU, gearmotor | directive 2014/34/EU (ATEX) |
| Ambient temperature min. [°C] , gearmotor | -20 |
| Ambient temperature max. [°C] , gearmotor | 40 |
| Designation gear unit namepl. , gearmotor | R57/A/II2GD |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1100438 |
| Weight | 276 |
