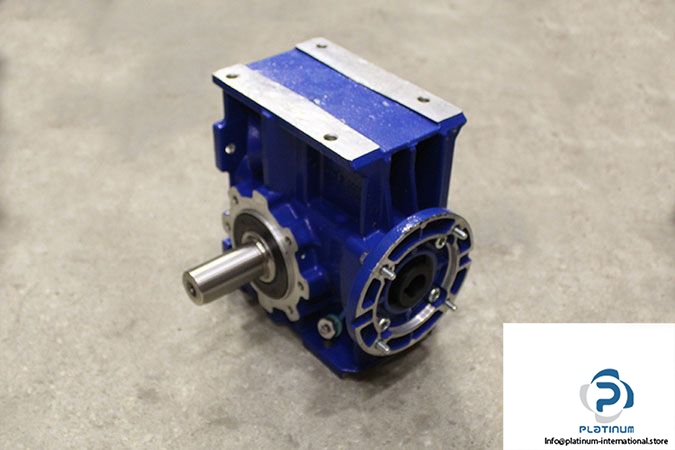

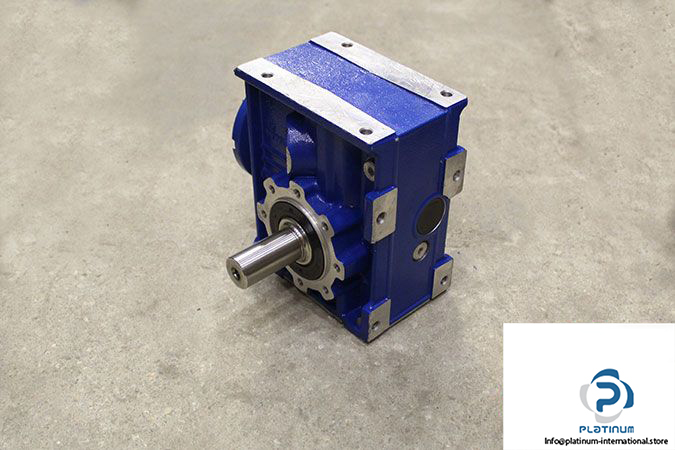

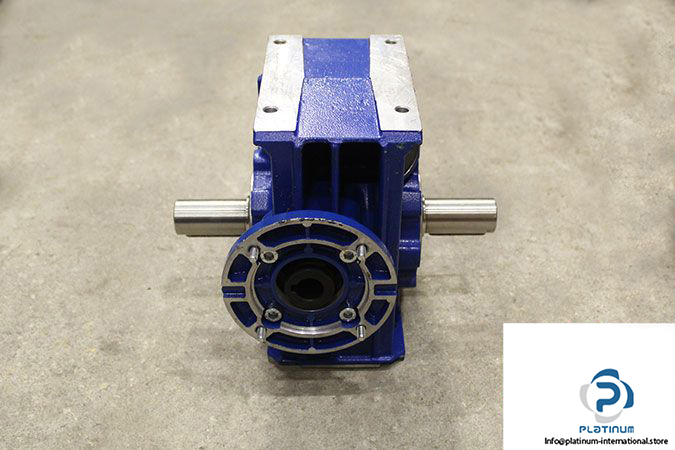

S.T.M. SM 45 Skew Bevel Helical Gearbox

Manufacturer:  STM

Type: Bevel Helical Gear Box

Model: SM45

Ratio: 35

Size: 45

Rated Power: 1.1 kW

Input Speed: 1390 rpm

Output Speed: 40 rpm

Gear Motor Torque: 238 Nm

Limit Thermal Capacity: 2.5 kW

Gearbox Service Factor: 1.1

Axial and Overhung Load: 3300 N

Shaft Diameter: 30 mm

Hollow Shaft Diameter: 20 mm

Flange Diameter: 120 mm

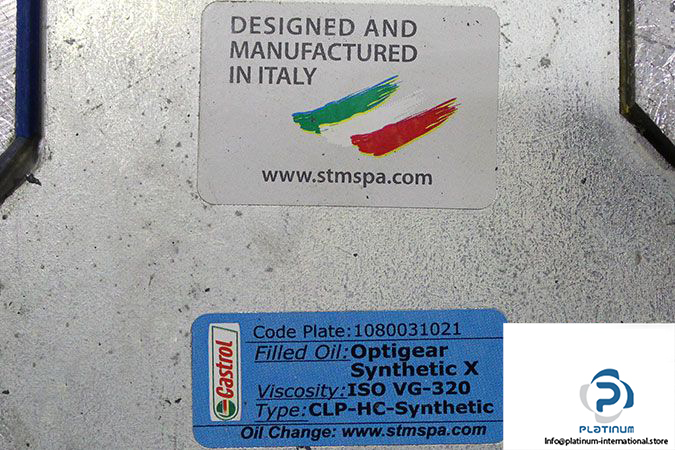

Filled Oil: Optigear Synthetic X

Viscosity: ISO VG-320

Lubricant Quantity: 0.5 kg

Weight: 9.9 kg
