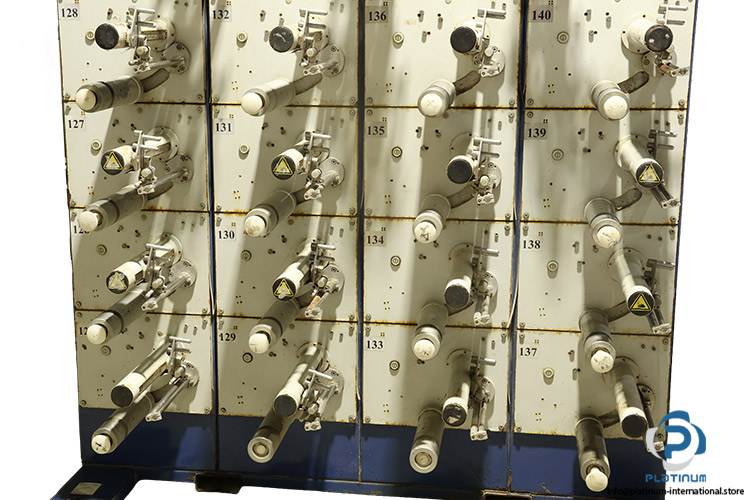

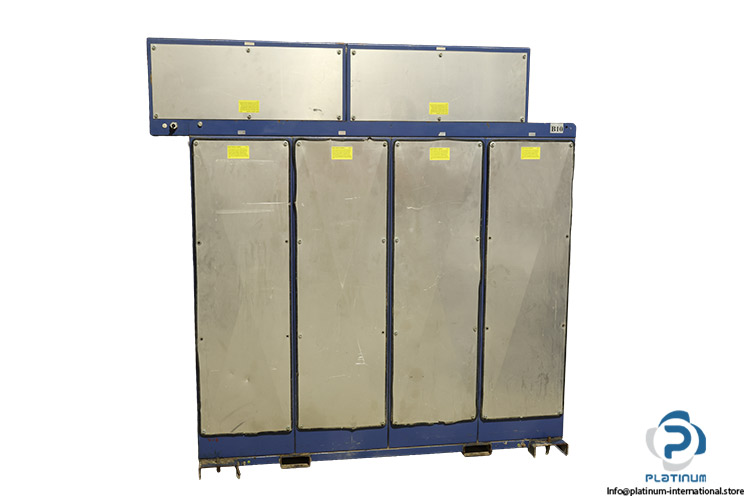

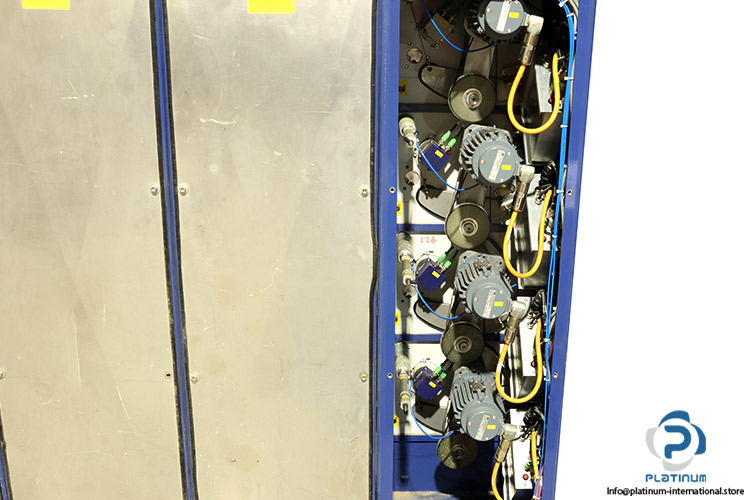

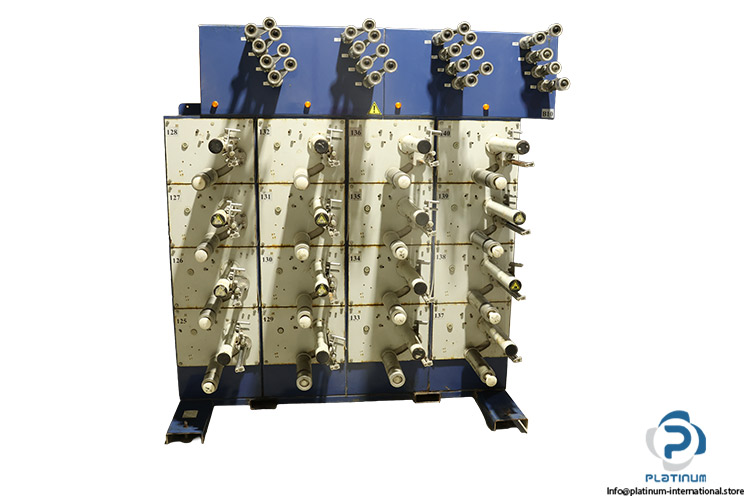

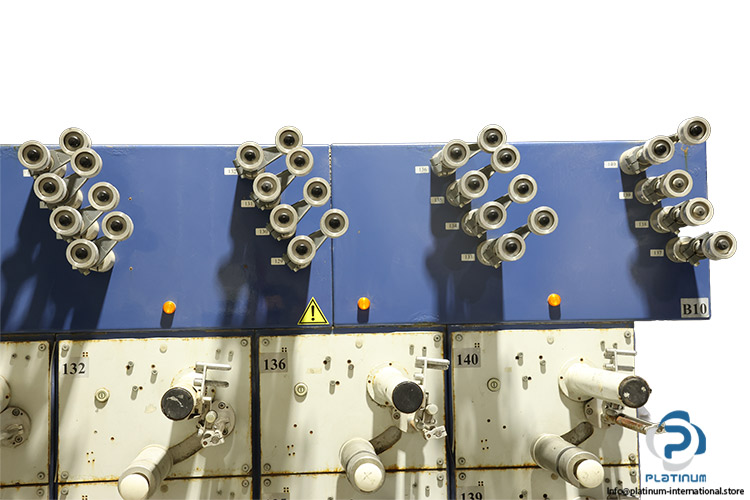

Sahm 880XE Precision Cross Winder
Used
In stock1 unitReady to ship
Precision Cross Winder SAHM 880XE precision cross winder featuring frequency-controlled drive, electronic winding ratio, adjustable yarn tension, and precision winding technology for carbon fiber and specific towpreg applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

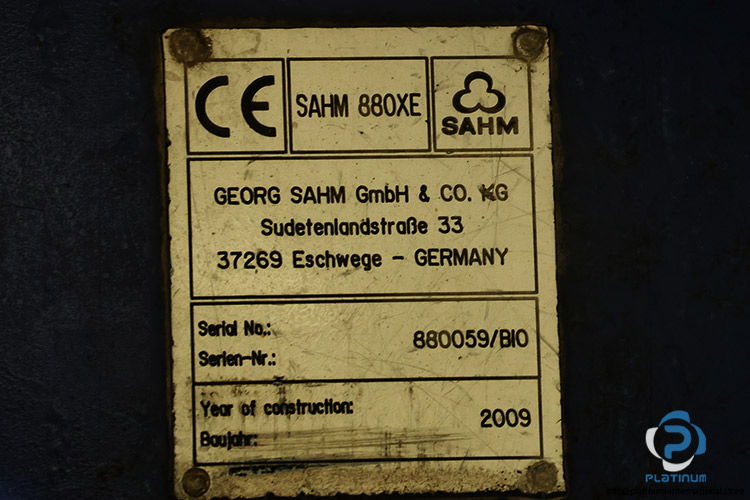

| Serial No, | 880059/BIO |
| Winding technology | Precision cross winding |
| Drive | Frequency-controlled |
| Frame | 4-tier |
| Titer | 1 to 60 K |
| Winding speed | 1 to 15 m/min |
| Winding ratio | Electronic |
| Traverse length Max. | 250 mm |
| Package diameter Max. | 250 mm |
| Tube inside diameter | 76.2 mm |
| Tube length | 280/290 mm |
| Yarn tension | Electronically adjustable |
| APPLICATIONS | Carbon fibers/ Specific towpreg |

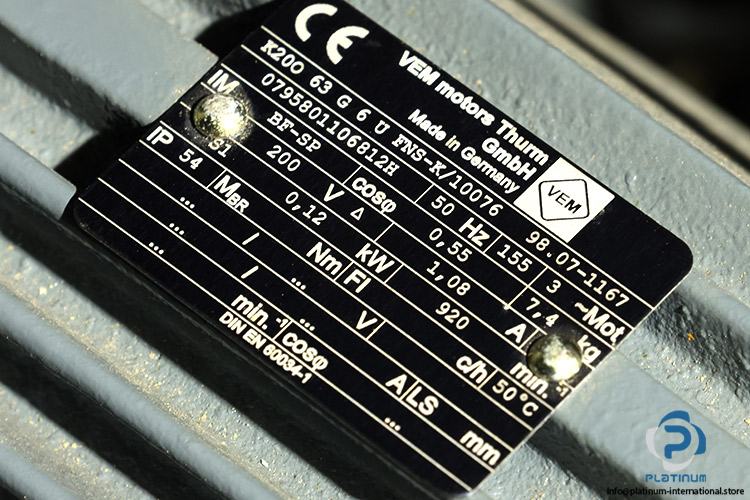

| Attached with | VEM K20O 63 G 6 U FNS-K/10076 3 Phase Asynchronous Motor |
| Part No. | 0795801106812H |
| Ref No | 98.07-1167 |
| Rated Voltage (Delta), Motor | 200 V |
| Rated Current, Motor | 1.08 A |
| Rated Speed, Motor | 920 min-1 |
| Frequency, Motor | 50 Hz |
| Mounting Position, Motor | BF-SP |
| Power Factor, Motor | 0.55 |
| Rated Power, Motor | 0.12 kW |
| Duty, Motor | S1 |
| Protection Class, Motor | IP54 |
| Standard, Motor | DIN IEC 60034-1 |

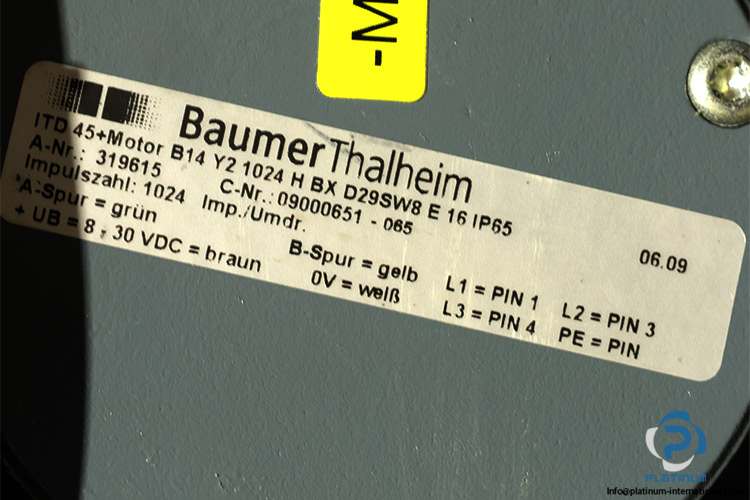

| Attached with 2 | Baumer Thalheim ITD 45+Motor B14 Y2 1024 H BX D29SW8 E 16 IP65 Incremental Encoder |
| Art No. Encoder | 319615 |
| C No. Encoder | 09000651 - 065 |
| MNR, Encoder | ITD 45+Motor B14 Y2 1024 H BX D29SW8 E 16 IP65 |
| Pulse Number, Encoder | 1024 |
| Voltage Supply, Encoder | 8 / 30 VDC |
| Signals, Encoder | HTL level, push-pull |
| Output Signals, Encoder | BX |
| Operating Temperature, Encoder | -20 / +70 °C |
| Flange, Encoder | Synchro Flange |
| Solid Shaft Diameter, Encoder | 16 mm |
| Protection Class, Encoder | IP65 |

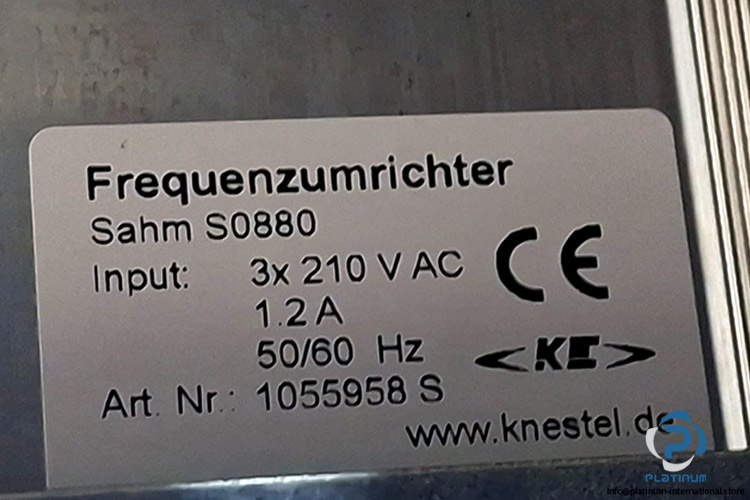

| Attached with 3 | SAHM/ KNESTEL S0880 frequency converter |
| Art. Nr., converter | 1055958 |
| Voltage, converter | 3-Phase 210 V AC (3× 210 V AC) |
| Input Current, converter | 1.2 A |
| Input Frequency, converter | 50/60 Hz |
| Certificate, converter | CE |

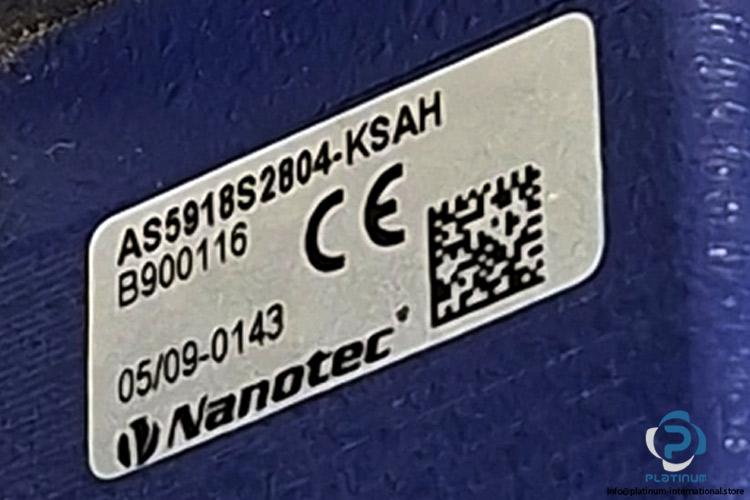

| Attached with 4 | Nanotec AS5918S2804-KSAH Stepper Motor |
| part No, Stepper Motor | B900116 |
| Ref No, Stepper Motor | 05/09-0143 |
| Rated Voltage [VDC], Stepper Motor | 2.12 |
| Current Per Winding [A], Stepper Motor | 2.83 |
| Flange Size [mm], Stepper Motor | 56 |
| Holding Torque, Stepper Motor | 0.99 Nm |
| Insulation Resistance, Stepper Motor | 100 Mohm |
| Ambient Temperature, Stepper Motor | -10…50 °C |
| Protection Class, Stepper Motor | IP65 |
| Condition | Used |
| SKU | 1099839 |
| Weight | 1094 |
