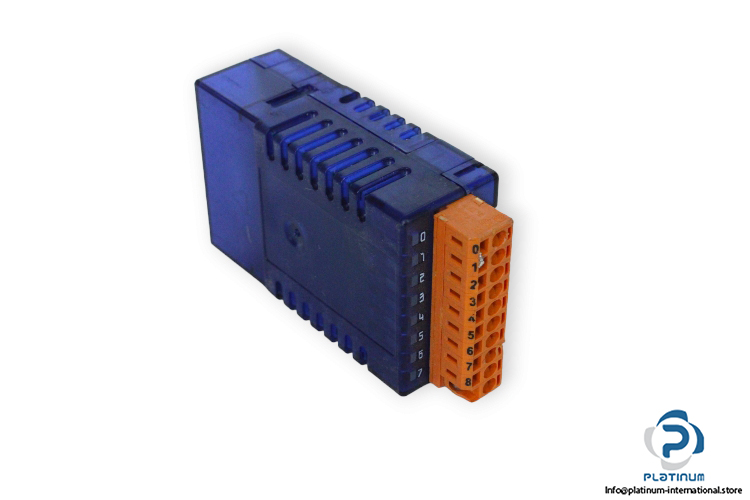

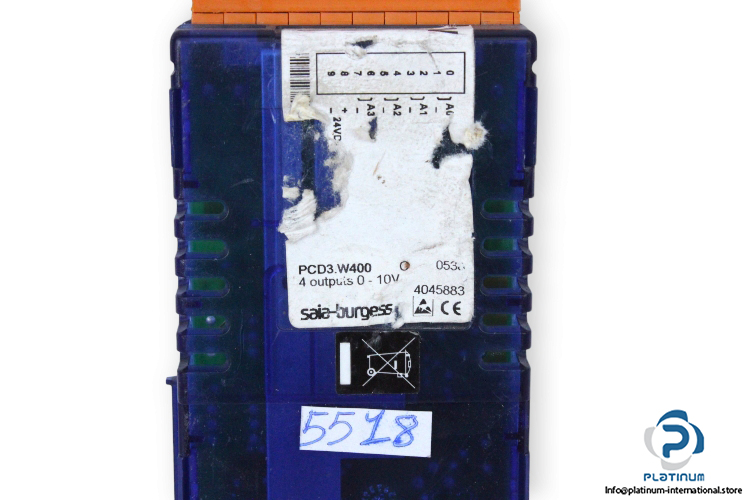

Saia-Burgess PCD3.W400 Analog Output Module
Used
In stock1 unitReady to ship
Manufacturer:
SAIA-BURGESS
Type:
Analog output module
Model:
PCD3.W400
Part No.:
4045883
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SAIA-BURGESS
Type: Analog output module
Model: PCD3.W400
Part No.: 4045883
Number of outputs (channels): 4 Analogue Output (AO)
Signal range selectable with jumpers: voltage 0…10 V
Resolution (digital representation): 8 bits (0…255)
Conversion time D/A: 5 μs
Galvanic separation: no
Load impedance for: 0…10 V ≥3 kΩ
Accuracy (of output value): for 0…10 V 1 % ±50 mV
Residual ripple for: 0…10 V <15 mV pp
Internal current consumption (from +5 V bus): 1 mA
Internal current consumption (from V+ bus): 30 mA
External current consumption max.: 0.1 A
