Samick LME 30 UU Linear Ball Bushing

Name: SAMICK LME 30 UU LINEAR BALL BUSHING
SKU: 1089685
Availability: LimitedAvailability

samick-LME-30-UU-linear-ball-bushing-(new)

samick-LME-30-UU-linear-ball-bushing-(new)-1

samick-LME-30UU-linear-ball-bushing-(new)-carton-3

New

In stock3 unitsReady to ship

Linear Ball Bushing

Samick LME30UU closed-type linear ball bushing with 30 mm bore, double-sided seals, and high load capacity for precise linear motion applications.

Manufacturer

SAMICK

SKU

1089685

Category

Shaft Guiding & Linear Ball Bushings

Condition

New

30mm Ball bearing Bushing Closed Industrial Linear LME30UU Motion Samick Sealed shaft Type UU

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

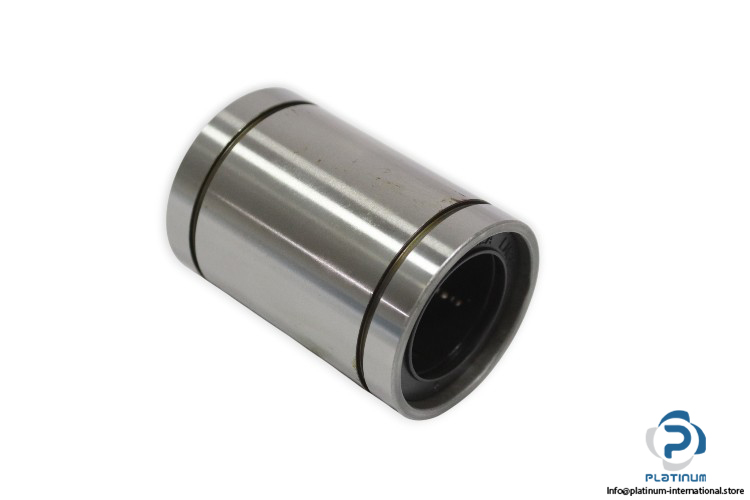

Samick LME30UU Linear Ball Bushing

The Samick LME30UU linear ball bushing is a precision linear bearing designed to provide smooth, low-friction linear motion along supported shafts. Its closed-type design with double-sided seals ensures reliable operation and extended service life in industrial and automation environments.

Manufacturer: Samick

Type: Linear Ball Bushing

Model: LME30UU

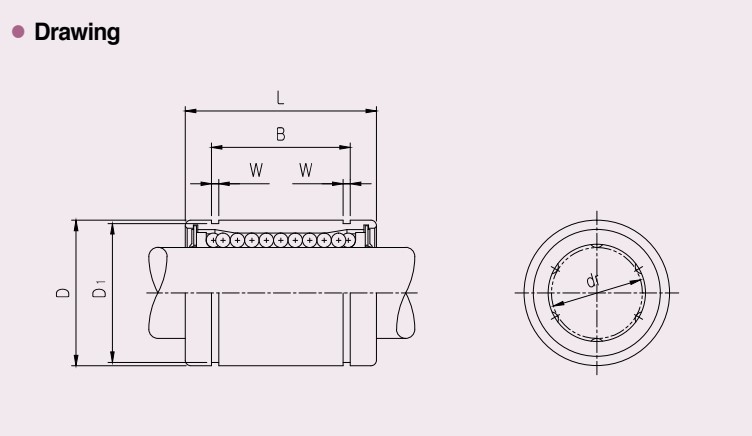

Bore Diameter (d)	30 mm
Outer Diameter (D)	47 mm
Length	68 mm
B	52.1 mm
W	1.85 mm
Basic Load Rating Dynamic	1560 N
Basic Load Rating Static	2740 N
No. of Ball Rows	6
Design Type	Closed Type
Sealing	UU (Seals On Both Sides)
