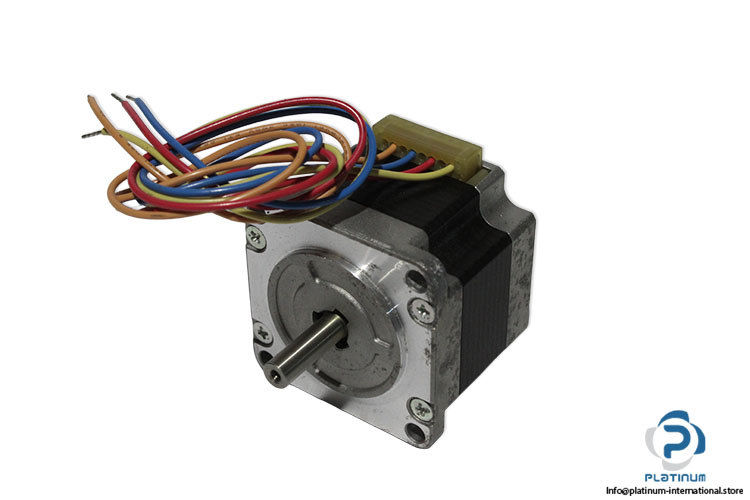

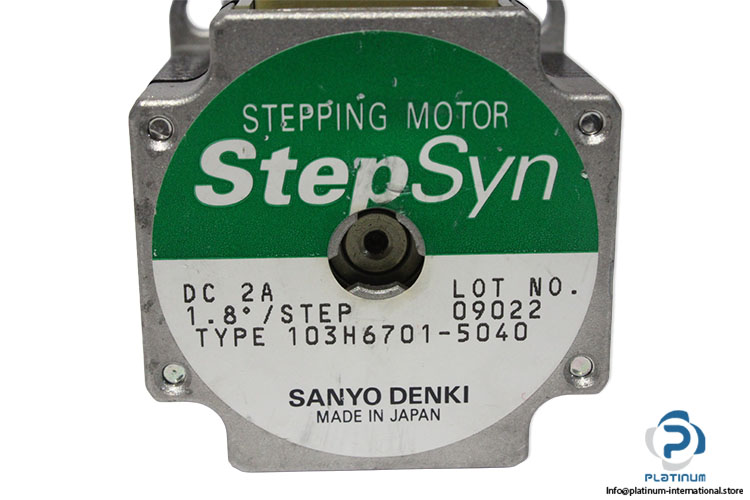

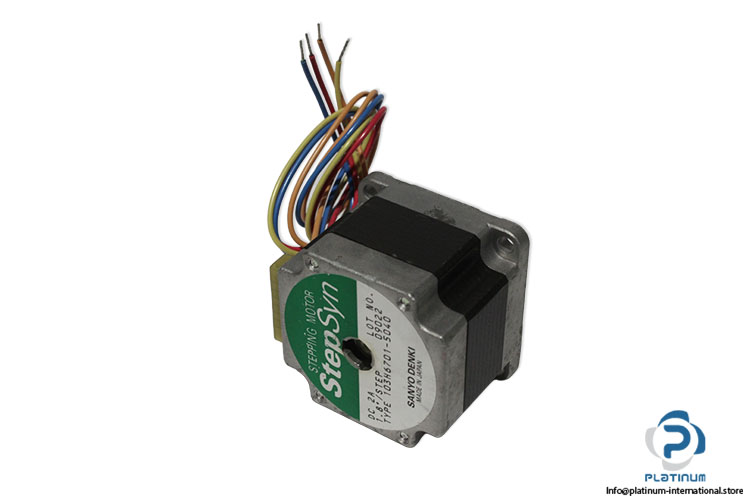

Sanyo Denki 103H6701-5040 Stepper Motor
New
In stock2 unitsReady to ship
33,33$
2-Phase Stepper Motor SANYO DENKI SANMOTION F2 / StepSyn 2-phase stepper motor featuring a 1.8° step angle, 0.28 N·m holding torque, bipolar wiring, and IP40 protection for precision motion control and industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref No | 09022 |
| Series | SANMOTION F2/ StepSyn |
| Basic step angle [ º ] | 1.8 |
| Motor flange size[mm] | 50 |
| Motor length [mm] | 39.8 |
| Single/Dual shaft | Single shaft |
| Output shaft | Circular |
| Holding torque [N∙m] | 0.28 |
| Rotor inertia [×10-4kg·m2] | 0.057 |
| Rated current [A/phase] | 2 |
| Wiring | Bipolar |
| Connection type | Lead wire type |
| Allowable thrust load [N] | 15 |
| Allowable radial load [N] | 79 |
| Operating temperature range | -10 to +50℃ |
| Operating humidity range | 20 to 90% RH (non-condensing) |
| Protection rating | IP40 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100365 |
| Weight | 0,34 |
