Sanyo Denki SH1422-5241 Stepper Motor
New
In stock2 unitsReady to ship
33,33$

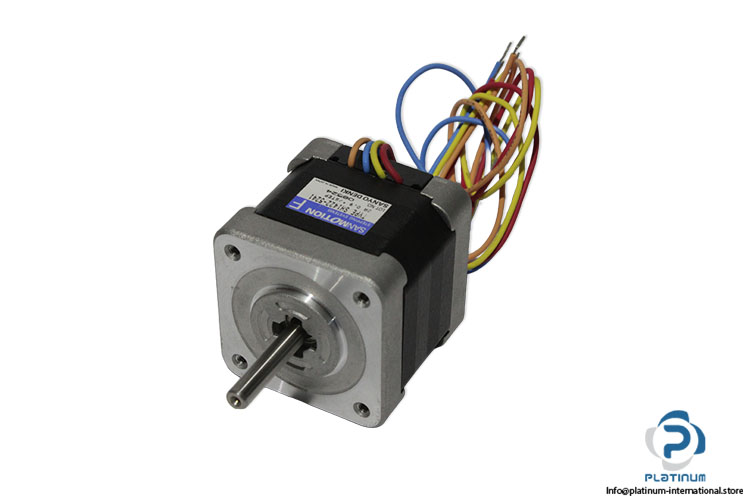

Stepper Motor SANYO DENKI SANMOTION F2 stepper motor featuring a 0.9° step angle, 0.34 N·m holding torque, bipolar wiring, and a compact 42 mm flange for precision motion control and industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref No | 08524 |
| Series | SANMOTION F2 |
| Basic step angle [ º ] | 0.9 |
| Motor flange size[mm] | 42 |
| Motor length [mm] | 39 |
| Single/Dual shaft | Single shaft |
| Output shaft | D-shaped |
| Holding torque [N·m] | 0.34 |
| Rotor inertia [×10-4kg·m2] | 0.066 |
| Rated current [A/phase] | 2 |
| Wiring | Bipolar |
| Connection type | Lead wire type |
| Allowable thrust load [N] | 10 |
| Allowable radial load [N] | 24 |
| Operating temperature range | -10 TO +50? |
| Operating humidity range | 20 to 90% RH (non-condensing) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100377 |
| Weight | 0,3 |
