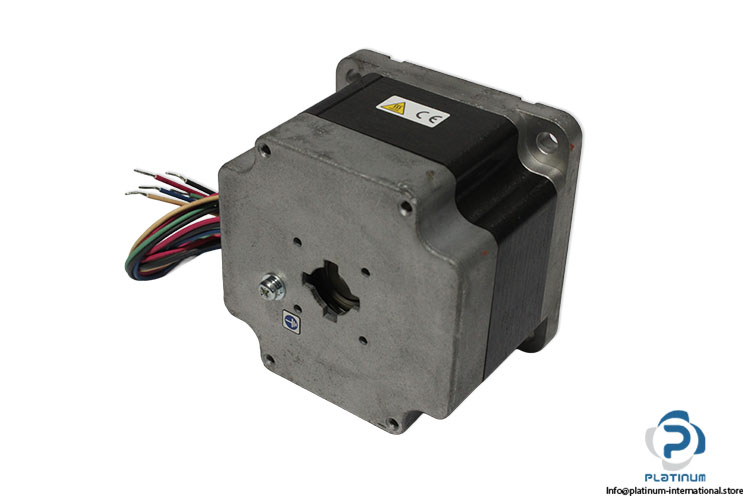

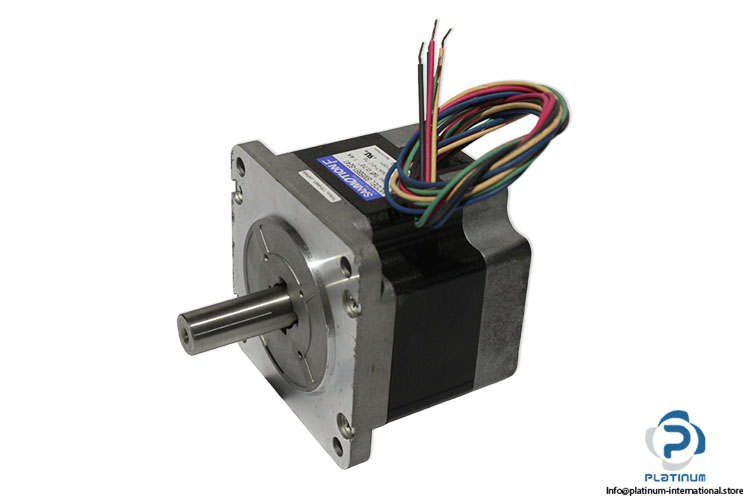

Sanyo Denki SM5861-8241 Stepper Motor
Used
In stock1 unitReady to ship
5-Phase Stepper Motor SANYO DENKI SANMOTION F 5-phase stepper motor featuring a 0.72° step angle, 2.3 N·m holding torque, 250 Vac rated voltage, and D-shaped single shaft for precision motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

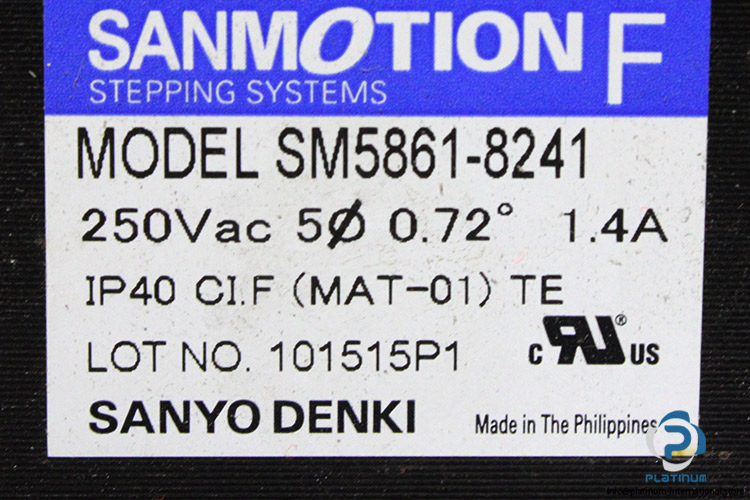

| Ref No | 101515P1 |
| Series | SANMOTION F |
| Rated Voltage [Vac] | 250 |
| Basic step angle [ º ] | 0.72 |
| Motor flange size[mm] | 86 |
| Motor length [mm] | 66 |
| Single/Dual shaft | Single shaft |
| Output shaft | D-shaped |
| Holding torque [N·m] | 2.3 |
| Rotor inertia [×10-4kg·m2] | 1.48 |
| Rated current [A/phase] | 1.4 |

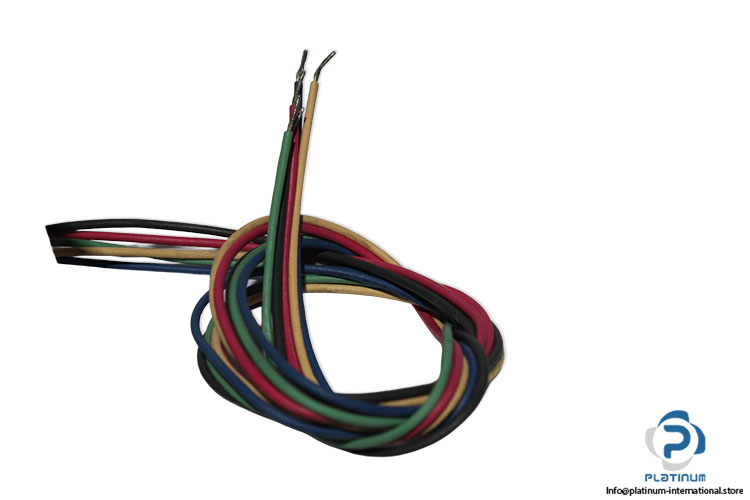

| Connection type | Lead wire type |
| Allowable thrust load [N] | 60 |
| Allowable radial load [N] | 200 |
| Operating temperature range | -10 to +40? |
| Operating humidity range | 95% RH max.: Under 40°C(no condensation) |
| Certificate | TUV |
| Standard | TE |
| Insulation Material System code | MAT-01 |
| Protection rating | IP40 |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100370 |
| Weight | 1,7 |
