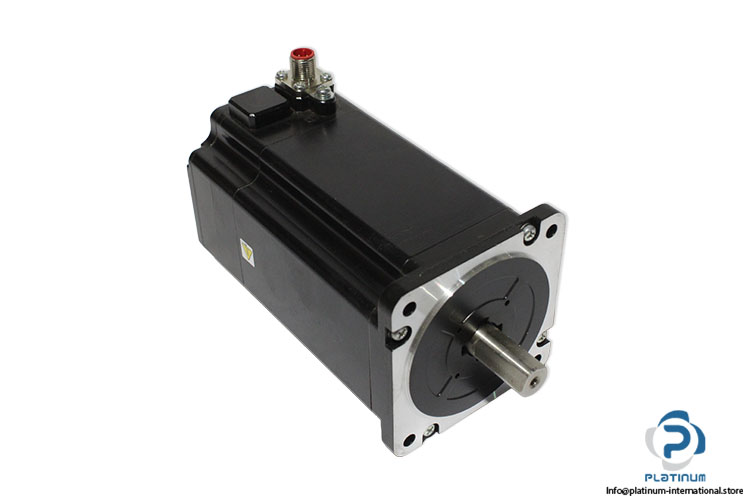

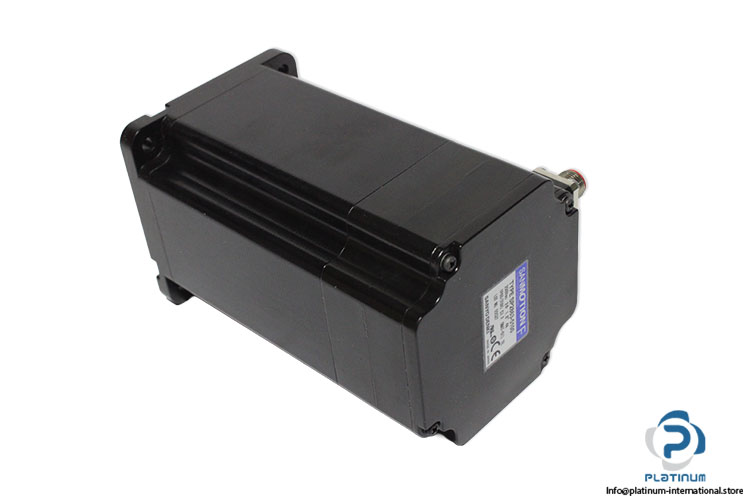

Sanyo Denki SP2863-5100 Stepper Motor
New
In stock2 unitsReady to ship
444,44$
2-Phase Stepper Motor SANYO DENKI SANMOTION F2 2-phase stepper motor with 1.8° step angle, 9 N·m holding torque, IP65 protection, bipolar wiring, and circular connector for industrial motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

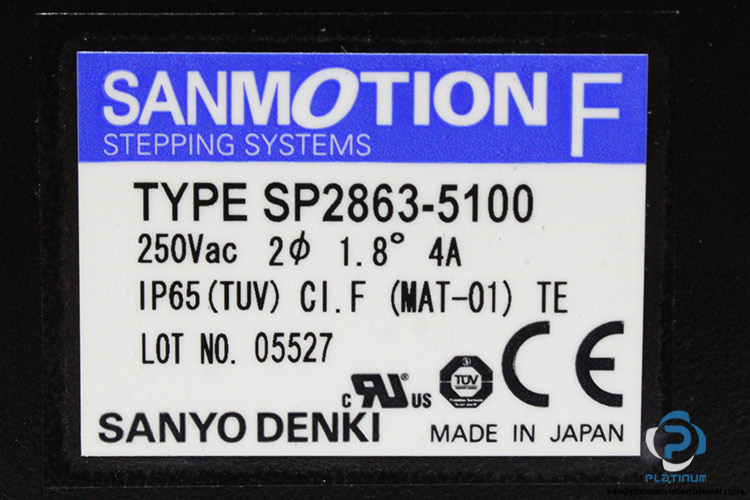

| Lot No | 05527 |
| Series | SANMOTION F2 |
| Basic step angle [ º ] | 1.8 |
| Motor flange size[mm] | 86 |
| Motor length [mm] | 150 |
| Single/Dual shaft | Single shaft |
| Output shaft | D-shaped |
| Holding torque [N·m] | 9 |
| Rotor inertia [×10-4kg·m2] | 4.5 |
| Wiring | Bipolar |
| Allowable thrust load [N] | 60 |
| Allowable radial load [N] | 200 |
| Rated Voltage [Vac] | 250 |
| Rated Current [A] | 4 |
| Certificate | TUV |
| Standard | TE |
| Insulation Material System code | MAT-01 |
| Operating temperature range | -10 to +40? |
| Operating humidity range | 95% |
| Protection rating | IP65 |

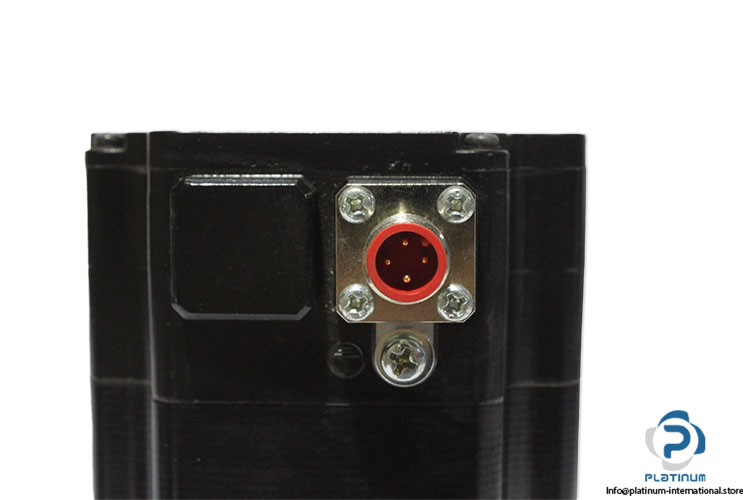

| Connection | CIRCULAR CONNECTOR |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100347 |
| Weight | 4,38 |
