Schaffner FN 256-16-46 Line Filter
Used
In stock2 unitsReady to ship
Schaffner Line Filter FN256-16-46 with continuous operating voltage of 480/275 V AC, 16 A rated current, and an operating temperature range of -25 / 100°C. Ideal for 3-phase systems with electromagnetic interference suppression.
3-phase.ContinuousElectricalelectromagneticfilterInterferenceLineLossOperatingPowerSchaffnersuppressionvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

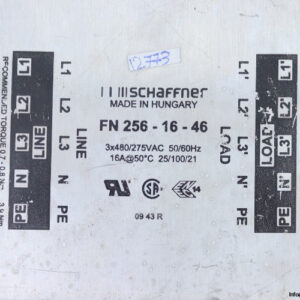

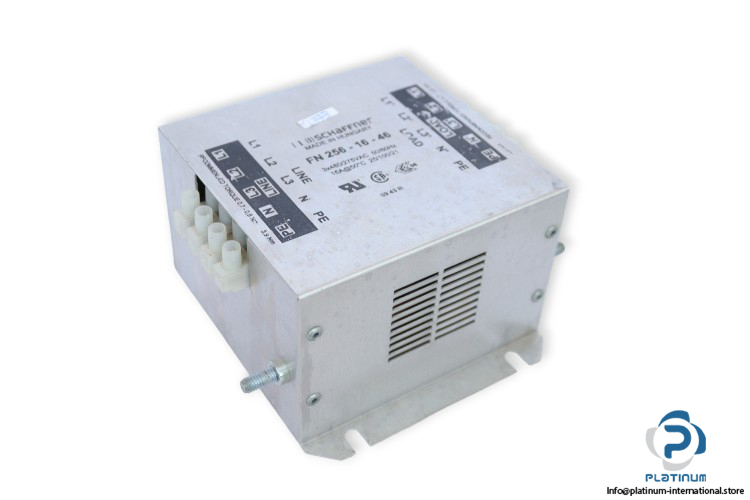

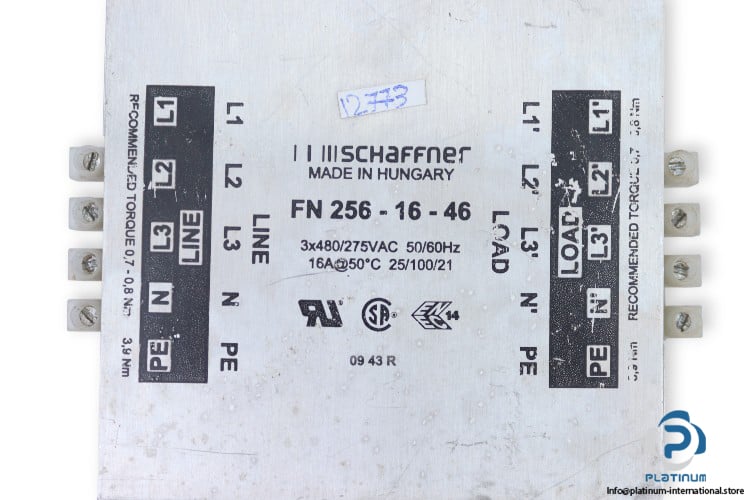

Schaffner Line Filter FN256-16-46
Schaffner Line Filter FN256-16-46 is a high-performance line filter designed for 3-phase systems, offering excellent suppression of electromagnetic interference in a wide range of applications. Below are the key technical specifications:
- Manufacturer: Schaffner
- Type: Line Filter
- Model: FN256-16-46
Technical Data:
- Continuous Operating Voltage: 480/275 V AC, 3-phase
- Frequency: 50/60 Hz
- Rated Current: 16 A @ 50°C
- Leakage Current: 3.4 mA
- Power Loss: 6 W
- Recommended Torque: 0.7 / 0.8 Nm
- Rated Torque: 3.9 Nm
- Protection Degree: IP20
- Operating Temperature: -25 / 100°C
- Dimensions: 120 x 143 x 80 mm
