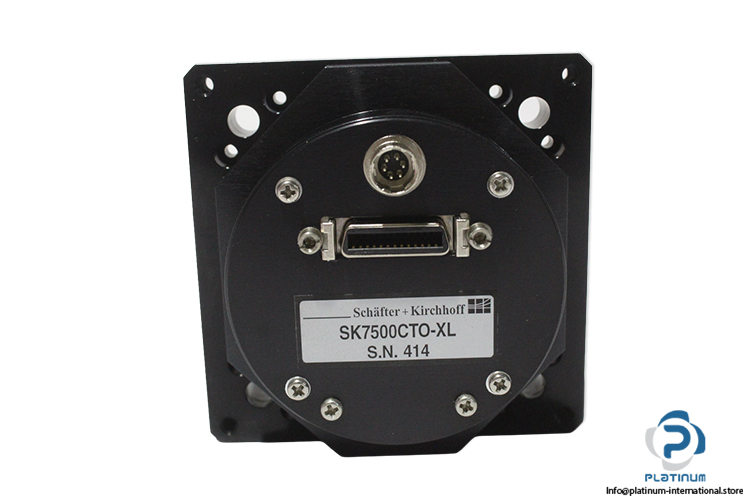

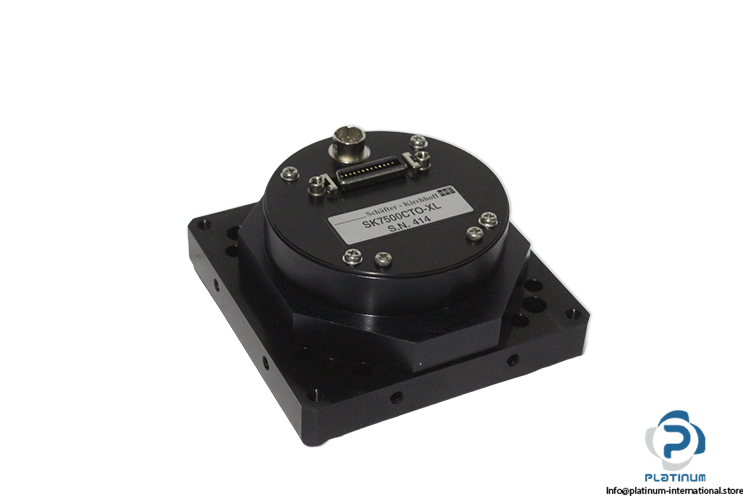

Schäfter + Kirchhoff Gmbh SK 7500 CTO-XL CCD Line Scan Camera
New
In stock1 unitReady to ship
CCD Line Scan Camera Schäfter + Kirchhoff CCD line scan camera with 7500-pixel monochrome sensor, 40 MHz pixel frequency and Camera Link interface, designed for industrial imaging and machine vision applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| S/N | 0414 |
| Sensor type | CCD Monochrome Sensor |
| Pixel number | 7500 |
| Pixel size | 7 x 7 µm² (micrometer)2 |
| Pixel distance | 7 µm (micrometer) |
| Active sensor length | 52.5 mm |
| pixel frequency | max. 40 MHz |
| line frequency | max. 5.2 kHz |
| Spectral sensitivity | 400 - 900 nm |
| Dynamic range | 1:750 (rms) |
| exposure time | 0.192 to 20 ms |
| Video signals | monochrome 8/12 Bit digital |
| Signal in/out | Camera Link |
| Power supply | +5V, +15V |
| Dimensions | 84 mm x 84 mm x 42.5 mm |
| Case type | CC5 |
| Lens mount | M72x0.75 |
| Flange focal length | 8.2mm |
| Operating temperature | 5 ... +45°C |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093943 |
| Weight | 0,32 |
