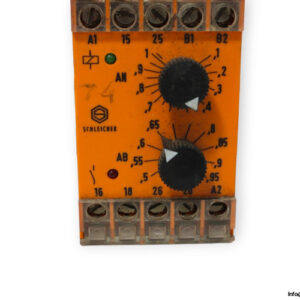

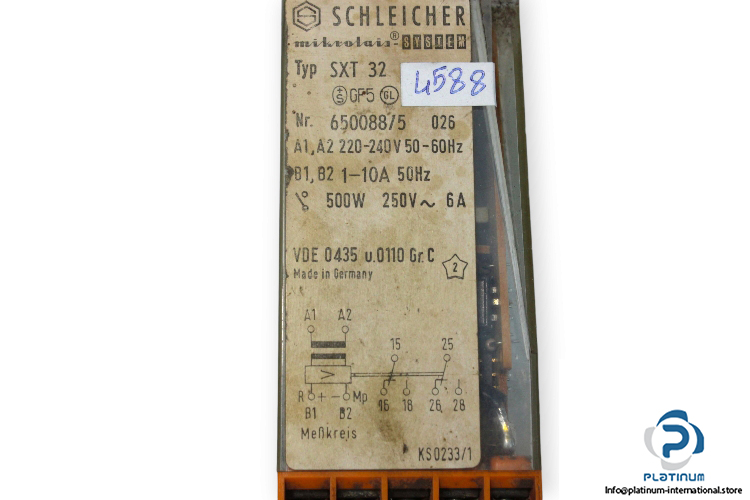

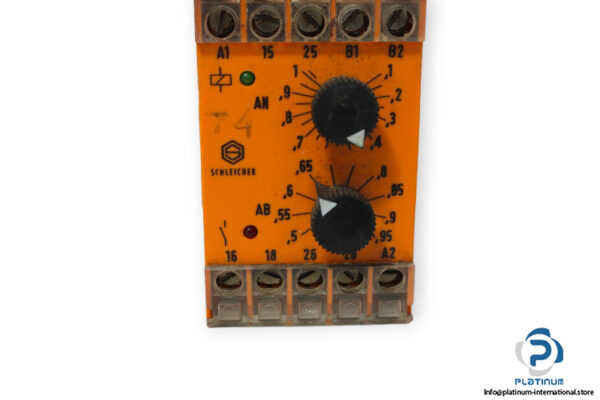

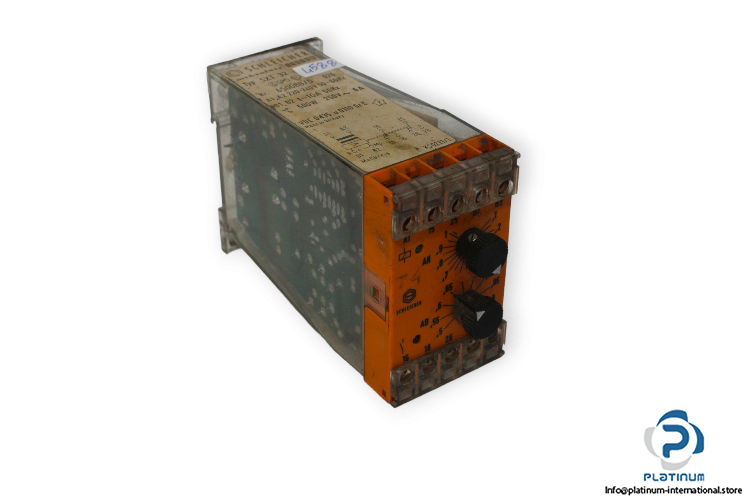

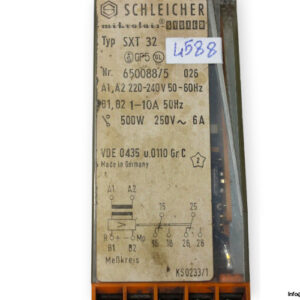

Schleicher SXT 32 Current-Measuring Relay

Manufacturer: SCHLEICHER
Type: Current-Measuring Relay
Model: SXT 32
Part No.: 650088/5 026

Nominal voltage UN: AC 220-240 V
Nominal frequency 50 to 60 Hz
Rated output at 50 Hz: 2.5 VA
Operating voltage range: 0.8 to 1.1 x UN
Setting / Quantity of operating ranges: analog / 1
Contact allocation / contact material: 2 contact / Ag alloy, gold-plated
Switching nominal voltage Un: AC/DC 230/230 V
max. steady current In per current path: 5 A
Short circuit safeguard, max. fuse insert Class gG: 6 A
