Schmalz SAB 60 Bellows Suction CUP
Used
In stock1 unitReady to ship
Bellows Suction Cup
The SCHMALZ SAB60 bellows suction cup offers flexible handling for curved and oily surfaces, delivering strong suction force and stability for industrial vacuum applications.60aAutomationBellowsComponentcupFlexibleG1/4handlingIndustrialLiftingSAB60SchmalzShoreSuctionSystemvacuum
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

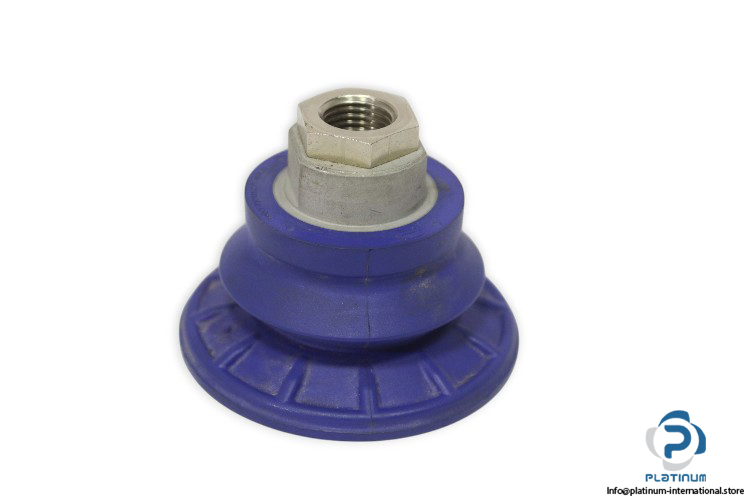

SCHMALZ SAB60 Bellows Suction Cup
The SCHMALZ SAB60 Bellows Suction Cup is a high-quality vacuum component designed for flexible and reliable handling of curved, uneven, or oily surfaces. Its durable material and optimized geometry ensure strong holding power and precise performance in automated systems.
Manufacturer: SCHMALZ
Type: Bellows Suction Cup
Model: SAB60
Family: SAB
Size: 60
| Suction Cup Material | G1/4"-F |
| Connection | G1/4-IG |
| Number of Folds | 1.5 |
| Material Hardness [Shore A] | 60 (Shore A) |
| Suction Force (-600 mbar) | 82 N |
| Pull-off Force | 130 N |
| Lateral Force | 145 N |
| Lateral Force (Oily Surface) | 77 N |
| Volume | 28.8 cm³ |
| Workpiece Radius Min. (Convex) | 65 mm |
| Hose Inner Diameter (Recommended) | 6 mm |
