Schmalz SCP-25 NO-FS RP-VD Compact Ejector
Used
In stock6 unitsReady to ship
Compact Ejector
SCHMALZ SCP-25 compact ejector with integrated filter, rapid blow-off system, and digital vacuum switch for controlled vacuum generation in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

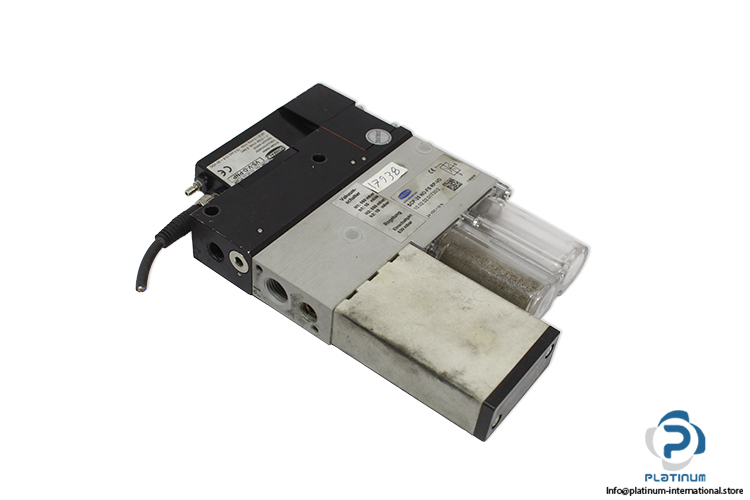

SCHMALZ SCP-25 NO-FS RP-VD Compact Ejector
The SCHMALZ SCP-25 NO-FS RP-VD is a compact ejector from the SCP family, engineered for efficient vacuum generation with integrated control and monitoring. It features a rapid blow-off system, integrated filter, and an attached digital vacuum switch for precise process control in industrial automation.
Manufacturer: SCHMALZ
Type: Compact Ejector
Model: SCP-25 NO-FS RP-VD
Part No.: 10.02.02.01730/2
Code: 1160656
Family: SCP
Vacuum Switch:
Vacuum Switch Technical Data
| Nozzle Diameter | 2.5 mm |
| Suction Rate | 37 l/min to 200 l/min |
| Control Valve | Normally Open (NO) |
| Design | With Blow-Off System (RP “ Rapid Process) |
| Filter | Integrated (FS) |

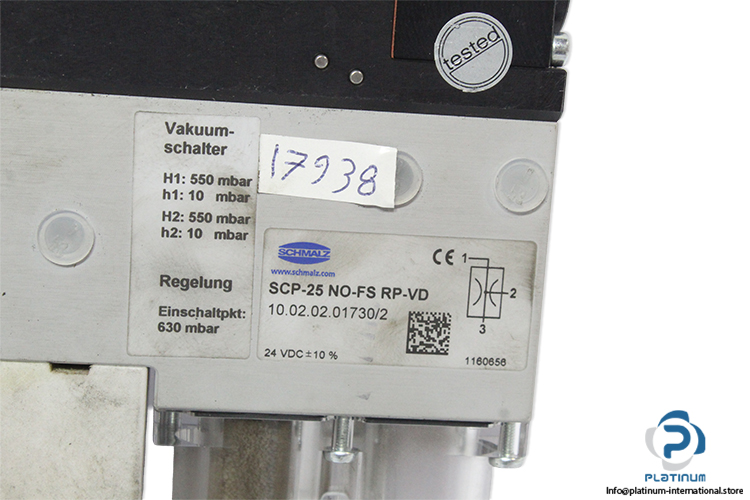

| Limit Value H1 | 550 mbar |
| Hysteresis Value h1 | 10 mbar |
| Limit Value H2 | 550 mbar |
| Hysteresis Value h2 | 10 mbar |
| Switch-On Point | 630 mbar |
| Supply Voltage | 24 VDC |
| Port Size | G1/4, G3/8, G1/8 |

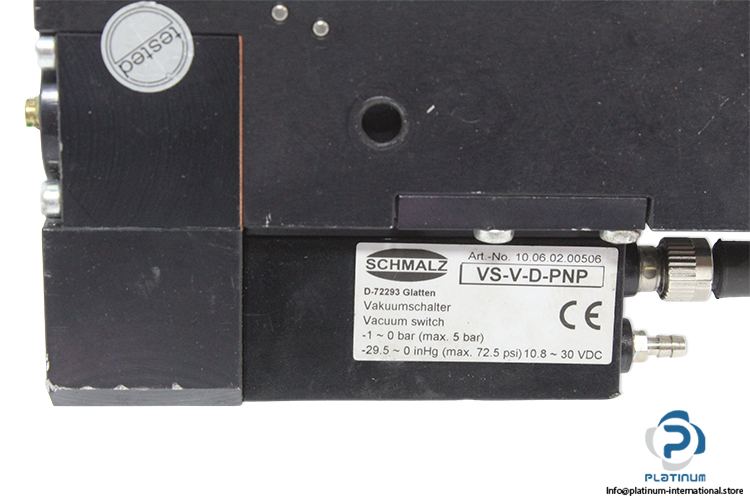

| Attached With | SCHMALZ VS-V-D-PNP Vacuum Switch (Art No. 10.06.02.00506) |
| Art No. | 10.06.02.00506 |
| Measured Media | Non-Aggressive Gases, Dry and Oil-Free Air |
| Pressure Measuring Range | -1 / 0 bar |
| Display | Digital Display |
| Max. Overpressure Resistance | 5 bar |
| Overpressure Resistance | 2 Digital |
| Switching Capacity | 180 mA |
| Inputs / Outputs | 2 x LED |
| Connection | Male Connector M8, 4-Pole |
| Operating Voltage | 10.8 “ 30 V DC |
| Operating Temperature | 0 / 50 °C |
