Schmalz Sxpi 25 IMP H M12-8 Compact Ejector
Used
In stock1 unitReady to ship
Compact Ejector
Schmalz Compact Ejector SXPI 25 IMP H M12-8 with 24 VDC rated voltage, 2.5 mm nozzle diameter, and IO-Link communication. Suction rate of 185 l/min and operating pressure of 4 … 7 bar for efficient material handling in industrial applications.1852425290AirCompactConsumptionEjectorHhandlingIMPImpulseIndustrialIO-Linkl/minM12-8materialPneumaticRateSchmalzSuctionSxpiValveVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

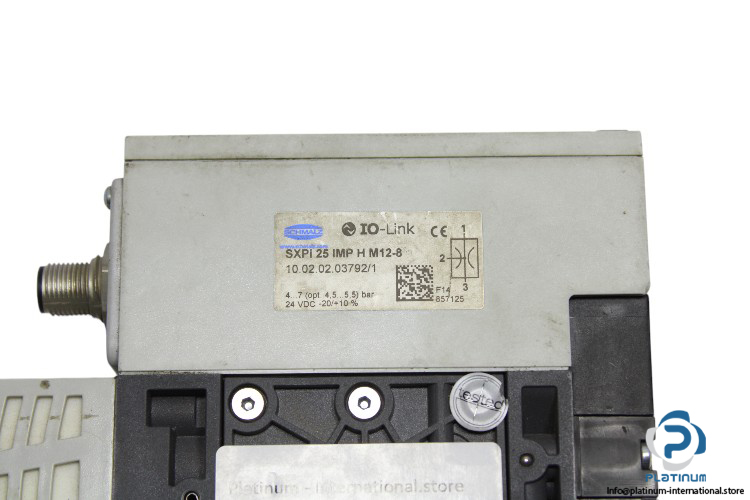

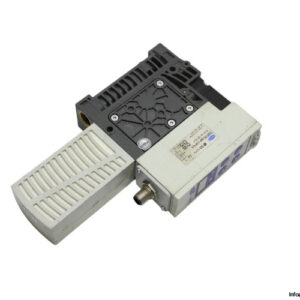

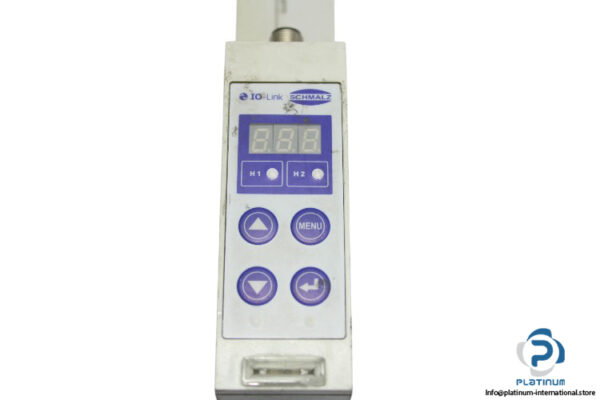

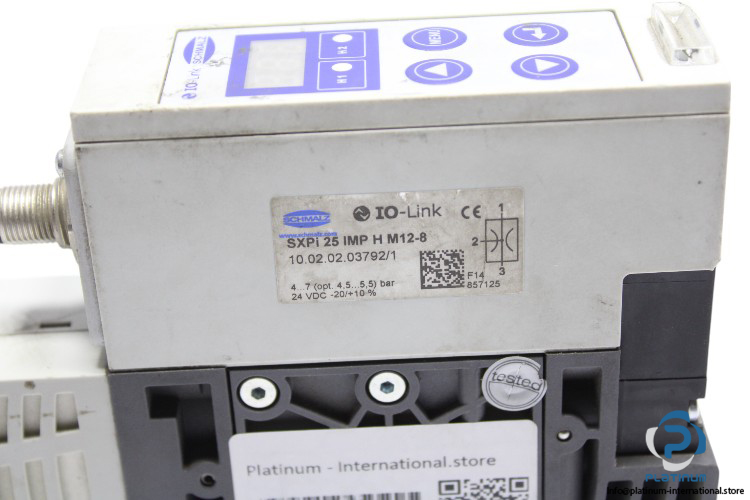

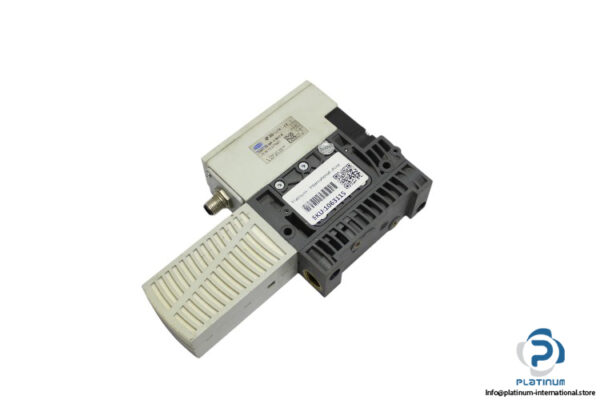

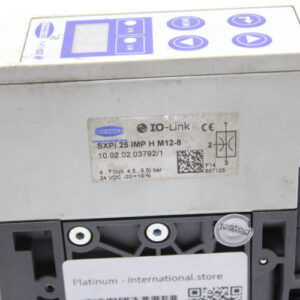

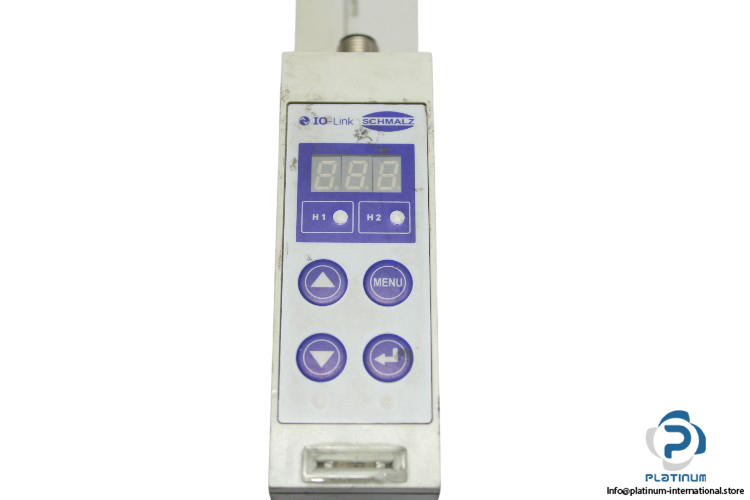

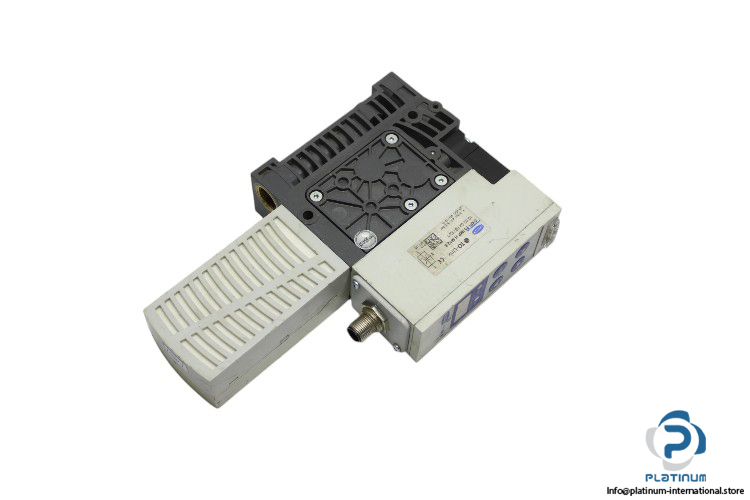

Schmalz Compact Ejector SXPI 25 IMP H M12-8
The Schmalz Compact Ejector SXPI 25 IMP H M12-8 is designed for efficient material handling and automation in industrial applications. With a rated voltage of 24 VDC, this ejector features a nozzle diameter of 2.5 mm and operates with an impulse valve control. It is equipped with an M12 male connector for electrical connection and supports IO-Link (Class A) communication for seamless integration with modern industrial control systems. The ejector offers a suction rate of up to 185 l/min and an air consumption of 290 l/min, making it suitable for high-efficiency operations.
Manufacturer: Schmalz
Type: Compact Ejector
Part No.: SXPI 25 IMP H M12-8
Technical Specifications
- Rated Voltage: 24 VDC
- Nozzle Diameter: 2.5 mm
- Control Valve: Impulse valve

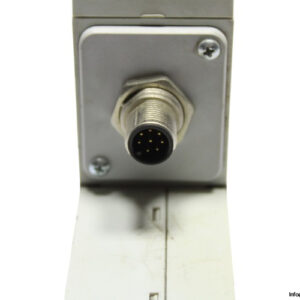

- Electrical Connection: Male connect M12, 8 pol
- Communication: IO-Link (Class A)
- Suction Rate (Max.): 185 l/min
- Air Consumption Suction: 290 l/min
- Operating Pressure: 4 … 7 bar
- Max. Vacuum: 850 mbar
- Degree of Protection: IP 65
- Operating Temperature: 0 … 50 °C
- Port Size: 3/8″
