Schmersal BNS 16-12ZLR Magnetic Safety Switch
Used
In stock5 unitsReady to ship
Schmersal Magnetic Safety Switch BNS16-12ZLR with magnetic drive, 100 V AC/DC switching voltage, 10 W switching capacity, and IP67 protection. Reliable for industrial safety applications.
101005Ac/DcActuatingAssuredCapacityDistanceDriveElementFrequencyHzIndustrialMagnetMagneticSafetySchmersalSwitchSwitchingVvoltageW
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

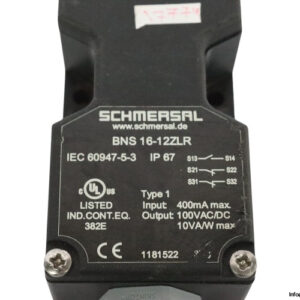

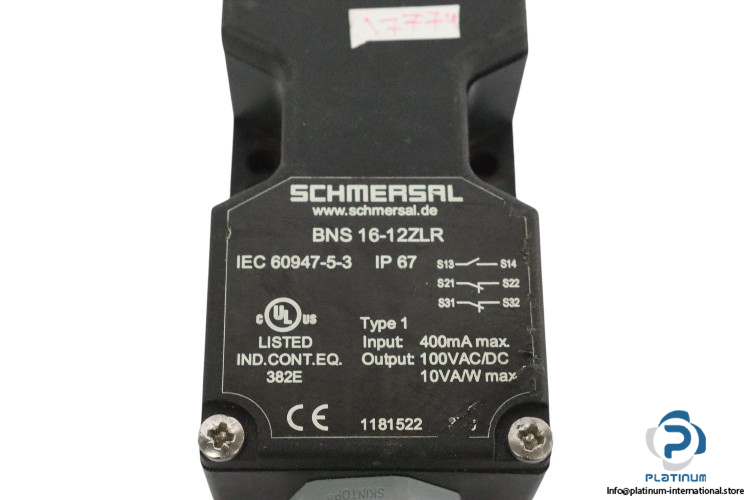

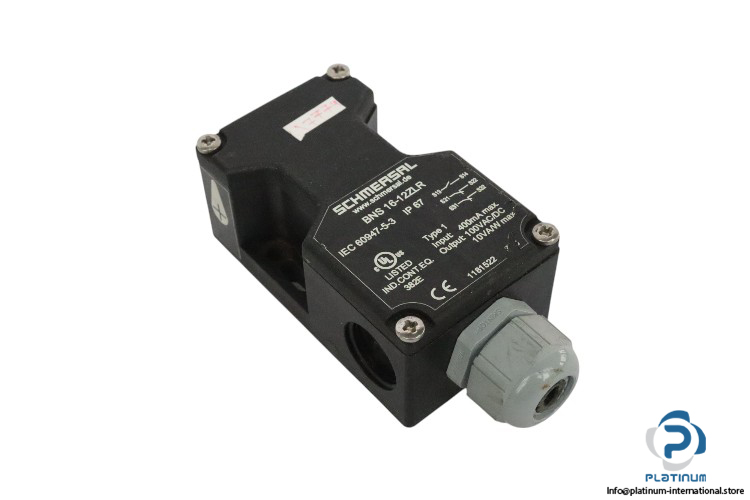

Schmersal Magnetic Safety Switch BNS16-12ZLR
Schmersal Magnetic Safety Switch BNS16-12ZLR is designed for reliable and precise safety control in industrial environments. It uses a magnetic drive principle for accurate switching and operates with a variety of mechanical and electrical specifications to meet demanding operational requirements.
- Manufacturer: Schmersal
- Type: Magnetic Safety Switch
- Model: BNS16-12ZLR
Technical Data:
- Working Principle: Magnetic drive
- No. of Normally Closed (NC): 2
- No. of Normally Open (NO): 1
- Switching Voltage, Max: 100 V AC/DC
- Switching Current, Max: 0.4 A
- Switching Capacity, Max: 10 W
- Switching Frequency, Max: 5 Hz
- Assured Switching Distance On: 8 mm
- Assured Switching Distance Off: 18 mm
- Actuating Element: Magnet
- Direction of Motion: Head-on to the active surface
- Installation Conditions (Mechanical): Not flush
- Housing Material: Glass-fiber, reinforced thermoplastic
- Connection: 3 cable entries M 20 x 1.5
- Standard: IEC 60947-5-3
- Degree of Protection: IP67
- Ambient Temperature: -25 to +70 °C
- Dimensions: 39.5 x 55 x 93 mm
