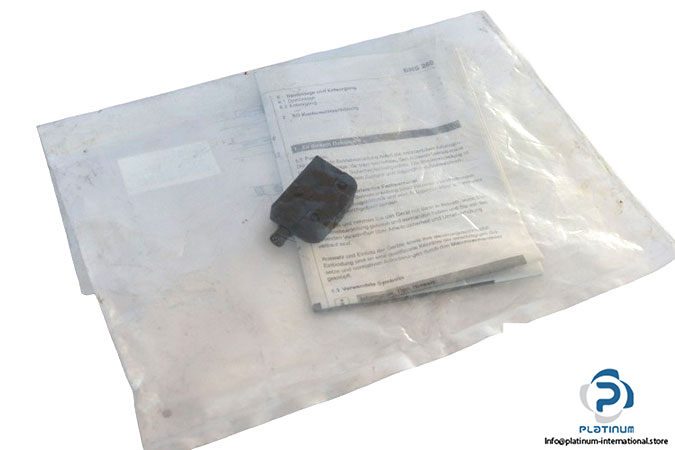

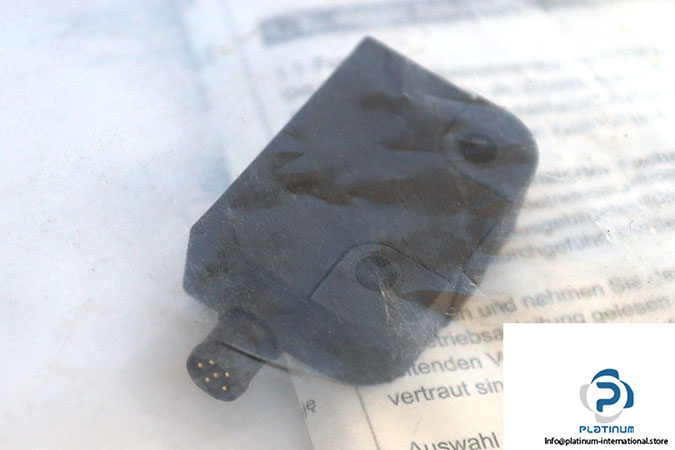

Schmersal BNS 260-02/01ZG-ST-R Magnetic Safety Sensor

Manufacture: Schmersal
Type: Magnetic safety sensor
Model: BNS 260-02/01ZG-ST-R

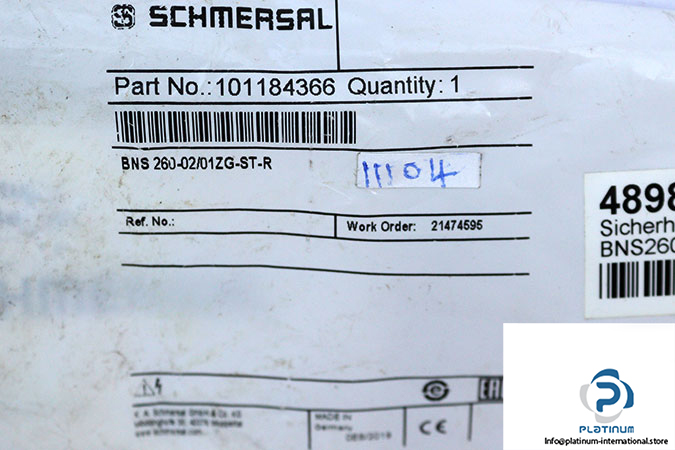

Part No.: 101184366

Rated insulation voltage Ui : 75 VDC
Rated impulse withstand voltage Uimp: 0.8 kV
Number of normally closed (NC) : 3
Number of safety contacts: 2
Required rated short-circuit current: 100 A
Switching voltage, maximum: 24 VDC
Switching current, maximum: 0.01 A
Termination: Connector 8 mm, 6-pole, Latching interlocking
Assured switching distance “ON” Sao: 5 mm
Assured switching distance “OFF” Sar: 15 mm
Housing material: Glass-fibre, reinforced thermoplastic
Degree of protection: IP67
Dimensions: 26 x 36 x 13 mm
Ambient temperature: -25 … +70 °C
